4606N ebmpapst

Description

4606N ebmpapst AC 180m3/h 60Hz 119x119x38mm 51dB(A) 5.8B 115VAC Ball Bearing 18W 3100RPM 2 Terminals axial compact fan

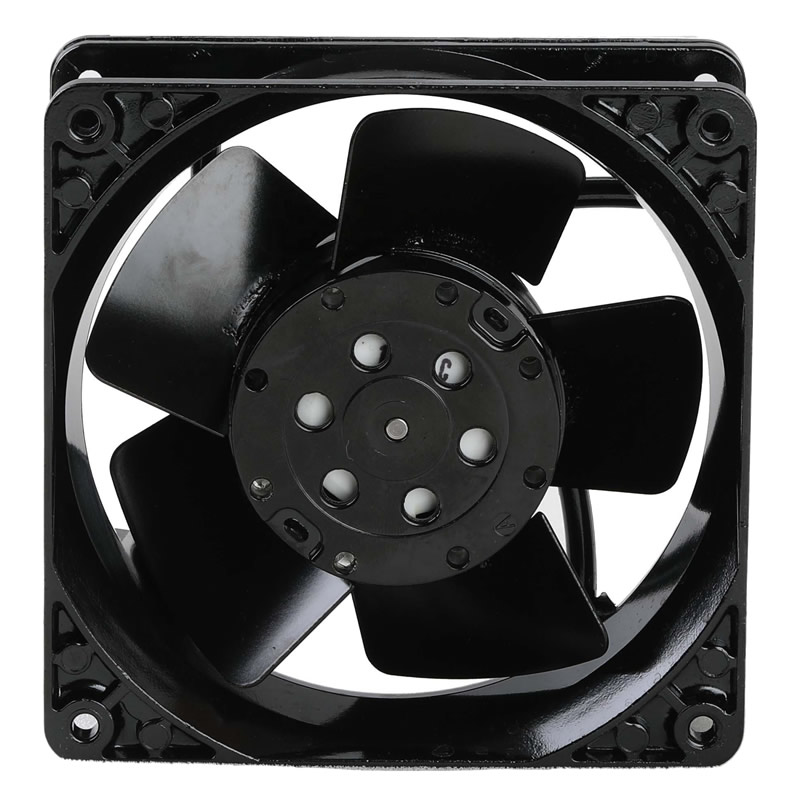

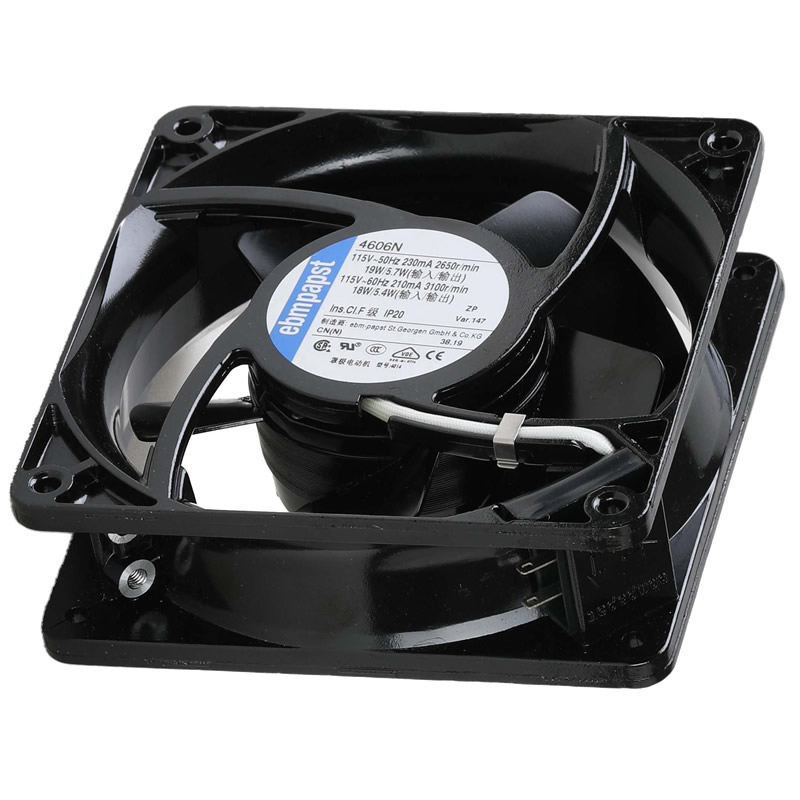

The 4606N AC axial compact fan by ebm-papst is a high-performing and versatile ventilation solution. It is designed to meet the needs of various applications, especially those with space and energy – efficiency requirements.

In terms of electrical specifications, the 4606 N operates on a single – phase 115VAC, 60Hz power supply. It runs at a speed of 3100rpm and consumes only 18.0W of power, making it an energy – efficient choice. This power consumption level allows for continuous operation with relatively low energy costs. The fan can generate an air flow of 180m³/h, which is suitable for small – scale ventilation tasks. Additionally, it has a sound power level of 5.8 B and a sound pressure level of 51dB(A), ensuring quiet operation that is ideal for noise – sensitive environments.

The physical characteristics of the 4606 N contribute to its functionality. Weighing just 0.550kg and with dimensions of 119x119x38mm, it is extremely compact. This small size enables easy integration into tight spaces, such as in small electronic devices or confined ventilation systems. The impeller is made of painted black sheet steel, providing durability, while the die – cast aluminum housing offers good heat dissipation and mechanical strength. The use of ball bearings ensures smooth rotation, and the motor is protected from overload by impedance protection, enhancing its reliability.

Certifications play a crucial role in validating the 4606 N’s quality and safety. It has approvals from VDE, CSA, UL, and CE, which means it meets strict international standards. This makes the fan suitable for use in a wide range of markets and applications, providing users with confidence in its performance. Moreover, it offers options like reinforced mounting flanges for enhanced stability during installation and exposed external leads for greater wiring flexibility, catering to different installation requirements.

Overall, the 4606N ebmpapst AC axial compact fan combines energy – efficiency, quiet operation, compact design, durability, and compliance with international standards. Its additional options further enhance its adaptability, making it a reliable choice for diverse ventilation needs.

Specifications
