Description

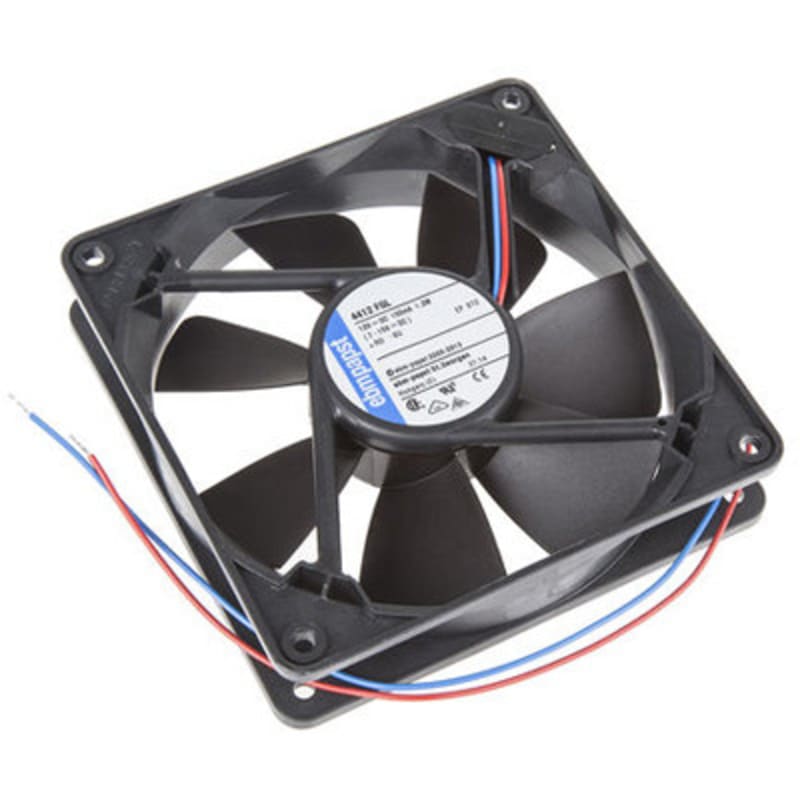

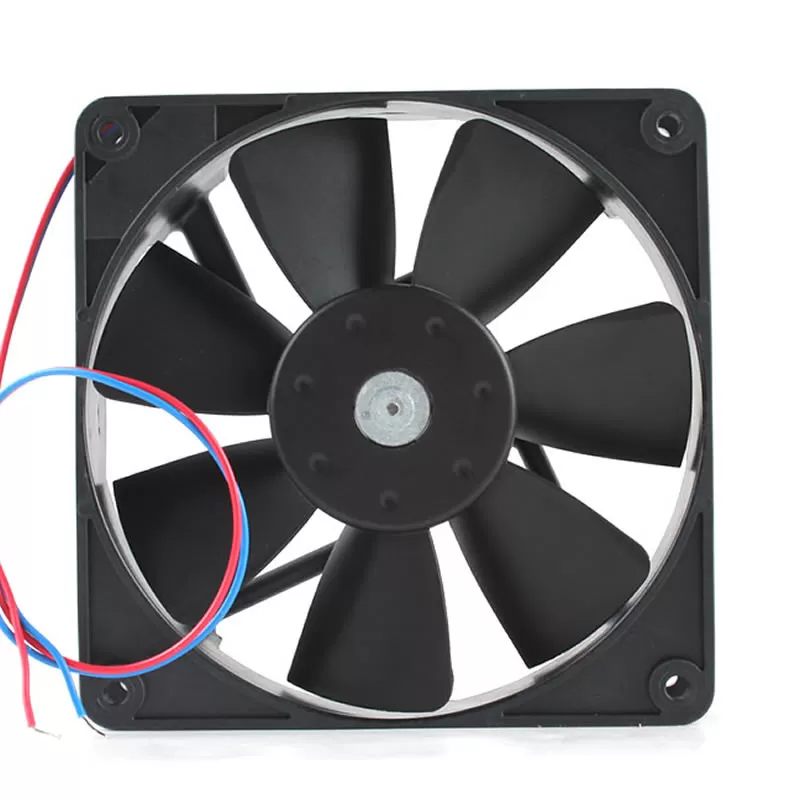

4412FGL ebmpapst DC 7~14V 94m3/h 119x119x25mm 26dB(A) 3.9B 12VDC Sintec Bearing 1.3W 1600RPM 2-Wire Leads axial compact fan
The 4412FGL is a DC axial compact fan by ebm-papst, designed for heat dissipation in small-to-medium equipment. Its electrical specifications include a 12VDC nominal voltage (7–14VDC wide voltage range), 1600rpm speed, 1.3W low power consumption, and an operating temperature range of -20°C to 75°C, delivering 94m³/h air flow with a low 26dB(A) noise level. Featuring a compact 119x119x25mm size and 0.175kg lightweight design, the fan uses a glass-fiber reinforced PBT plastic housing and glass-fiber reinforced PA plastic impeller for heat resistance and impact resistance. Equipped with a Sintec sleeve bearing, it offers an L10 service life of 80,000 hours at 40°C, and includes reverse polarity and blocked rotor protection. The AWG24 stripped and tin-plated cable allows for easy connection, with optional speed and alarm signals available. Certified by VDE, CSA, UL, and CE, this fan is suitable for electronics, home appliances, industrial control cabinets, and other applications, combining efficient cooling, quiet operation, and long-term reliability.
Specifications
| Part Number | 4412FGL |
|---|---|
| Manufacturer | ebm-papst |
| Air Flow | 55 CFM |
| Voltage Range | 7~14V |
| Fan Type | DC |
| Noise Level | 26 dB(A) |
| Sound power level | 3.9B |
| Dimensions | 119x119x25 mm |
| Air Flow (m3) | 1.54m³/min |
| Series | 4400F |
| Voltage Rating | 12 VDC |
| Bearing Type | Sintec Bearing |
| Power Rating | 1.3 W |
| Fan Speed | 1600 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | -4 ~ 167°F (-20 ~ 75°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.386 lb (175.09 g) |
| Subcategory | DC axial compact fan |
