Description
3108NL-05W-B30-L00 NMB Technologies 24VDC 80x80x20mm 34.6CFM Ball 32.5dB(A) 1.68W 2950RPM 2 Wire Leads Tubeaxial DC fan

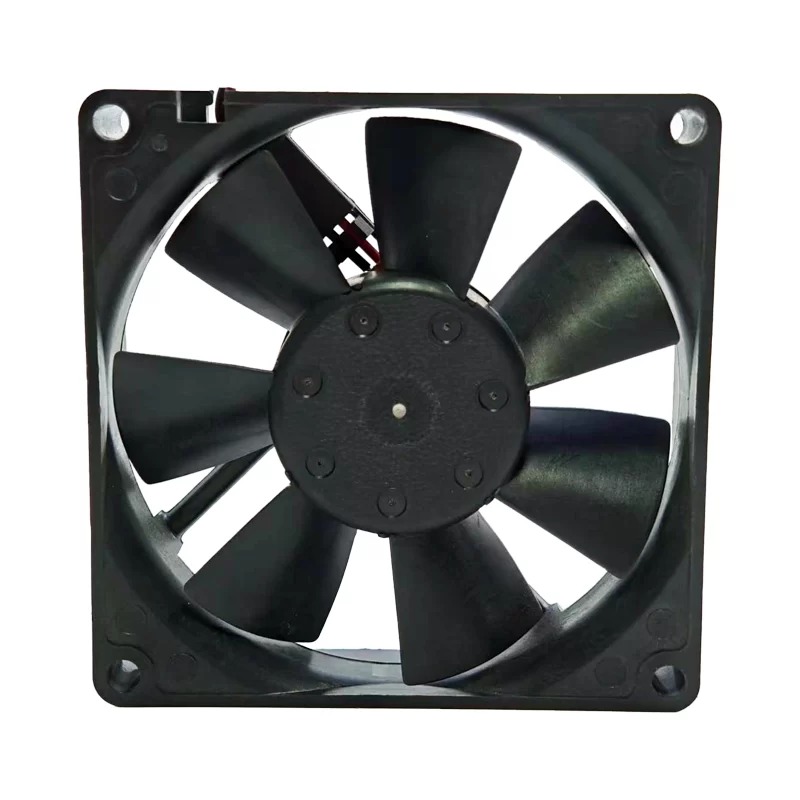

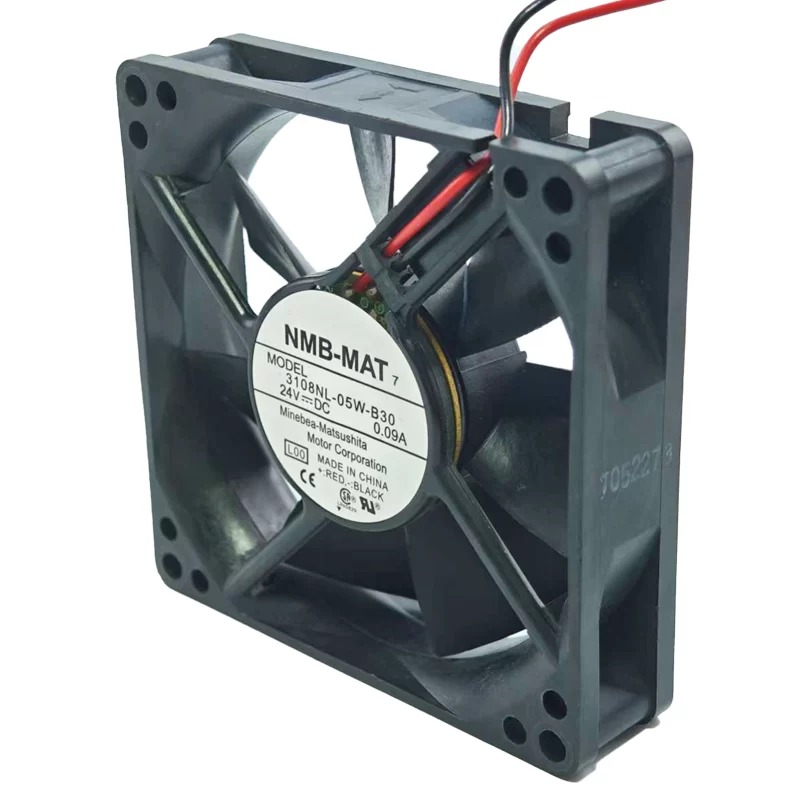

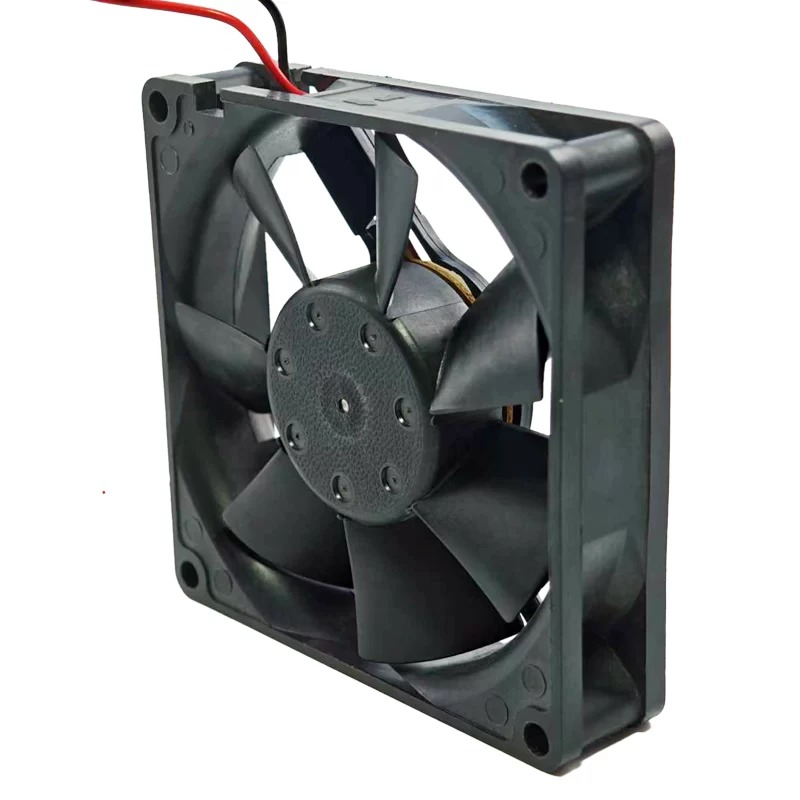

The NMB 3108NL-05W-B30-L00 is a compact and efficient 24V DC axial fan, measuring 80mm x 80mm x 20mm, manufactured by NMB Technologies Corporation. This fan is designed for reliable cooling in various electronic systems where a slim profile is required. It features durable dual ball bearings, contributing to a long operational lifespan, with some sources indicating up to 180,000 hours Mean Time To Failure. Drawing 0.09A of current, it consumes 2.16W of power. This fan operates at an estimated 3200 RPM, delivering 38 CFM of airflow and generating 0.15 inches of H2O static pressure, with a moderate 34 dBA noise level. Equipped with 2-wire leads, the NMB 3108NL-05W-B30 is an excellent choice for cooling components in servers, power supplies, industrial controls, and other electronic enclosures that require dependable thermal management within limited space.
Specifications
| Part Number | 3108NL-05W-B30-L00 |
|---|---|
| Static Pressure | 0.134 in H2O (33.5 Pa) |
| Fan Type | DC |
| Series | 3108NL |
| Voltage Rating | 24 VDC |
| Dimensions | 80x80x20 mm |
| Air Flow | 34.6 CFM |
| Air Flow (m3) | 0.969m³/min |
| Manufacturer | NMB Technologies |
| Noise Level | 32.5 dB(A) |
| Bearing Type | Ball Bearing |
| Power Rating | 1.68 W |
| Fan Speed | 2950 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.187 lb (84.82 g) |
| Subcategory | Tubeaxial |
| Subcategory | DC axial fan |
