W2E250-HL06-01 ebmpapst

Description

W2E250-HL06-01 ebmpapst 230VAC 250mm Ball 180W 2700RPM IP44 4 Terminals Tubeaxial Capacitor Thermal Overload Protection (TOP) AC axial fan

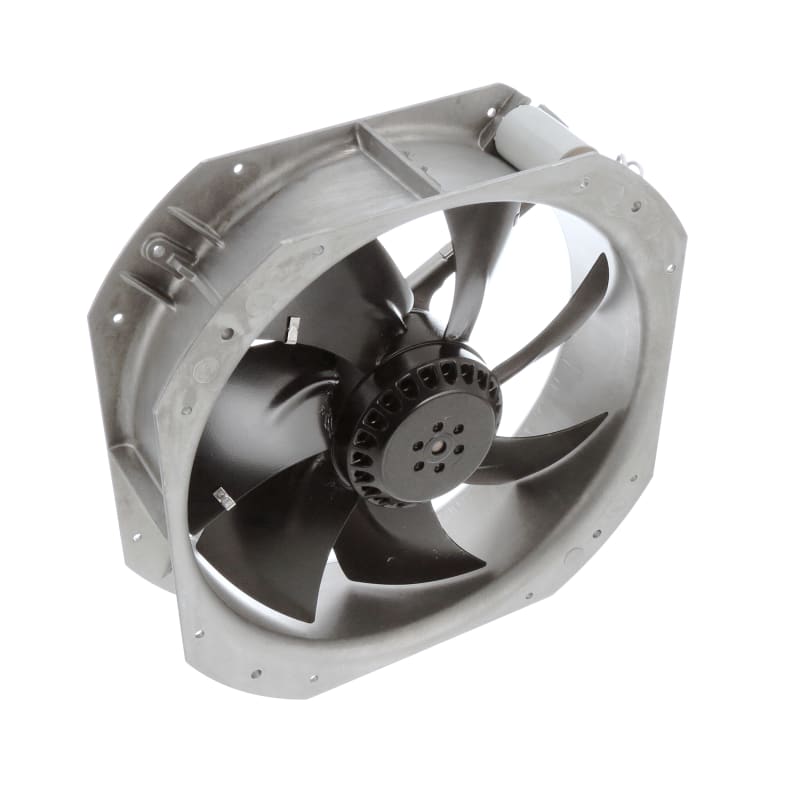

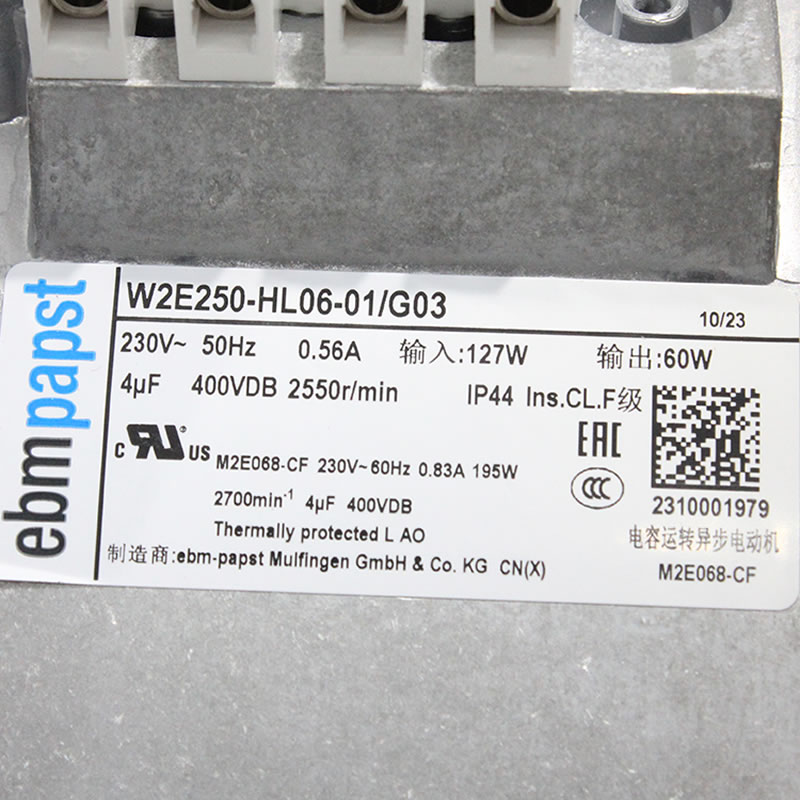

The W2E250-HL06-01 axial fan is a compact AC blower from ebm-papst, belonging to the sickle-shaped blade S series, designed for 230VAC single-phase power in 50Hz/60Hz versions. At 50Hz, it delivers 127W power, 0.56A current, and 2550rpm speed; at 60Hz, it has 180W power, 0.79A current, and 2700rpm speed, both using a 4μF/400VDB capacitor. Measuring 250mm and weighing 2.8kg, it features painted sheet steel blades and a die-cast aluminum housing, with 7 blades in a “V” airflow direction, rotating counterclockwise. With IP44 protection and Class F insulation, it operates in -25°C to 60°C (50Hz)/-25°C to 45°C (60Hz) dry environments, storing between -40°C and 80°C. Equipped with an internal thermal overload protector and ball bearings, it allows arbitrary installation, certified by UL 2111, CCC, CSA, EAC, etc., with terminal strip connection (capacitor pre-installed). Air performance includes 1865m³/h max flow (0Pa) at 50Hz (1275m³/h at 100Pa) and 1970m³/h at 60Hz (1235m³/h at 100Pa), suitable for industrial equipment cooling and ventilation systems.
