Description

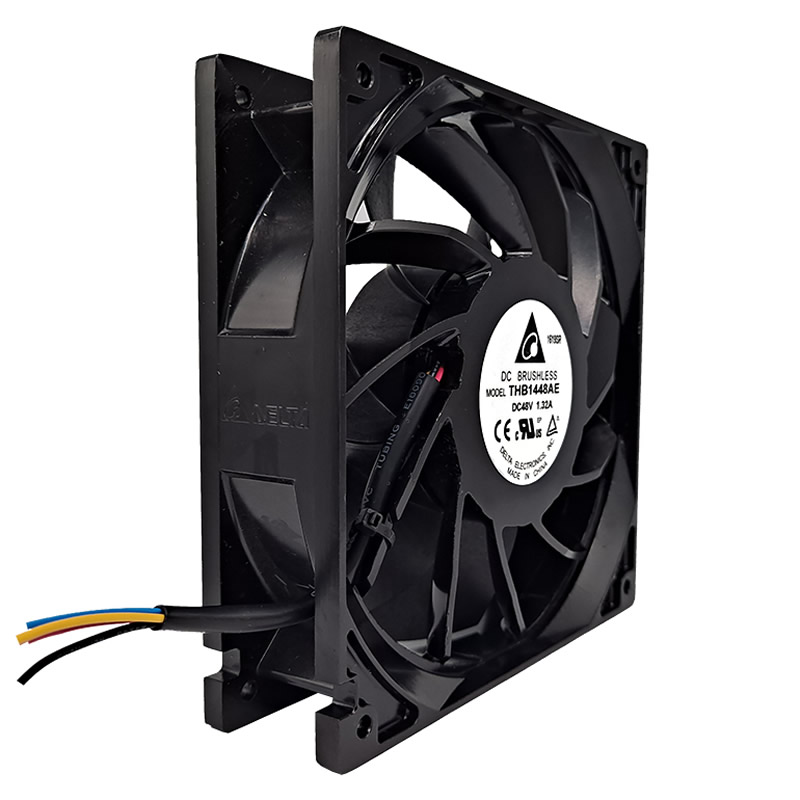

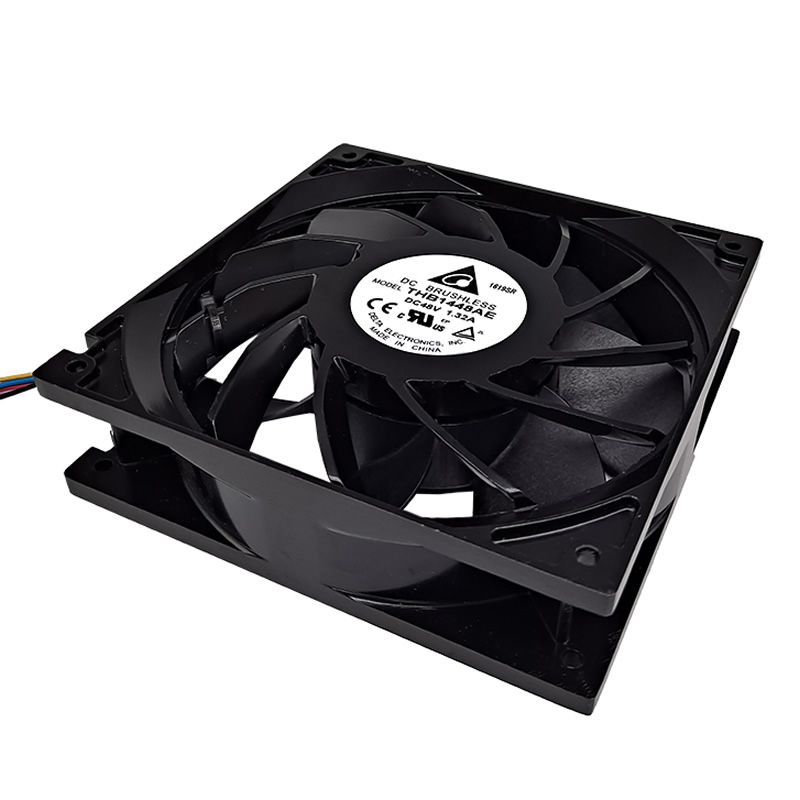

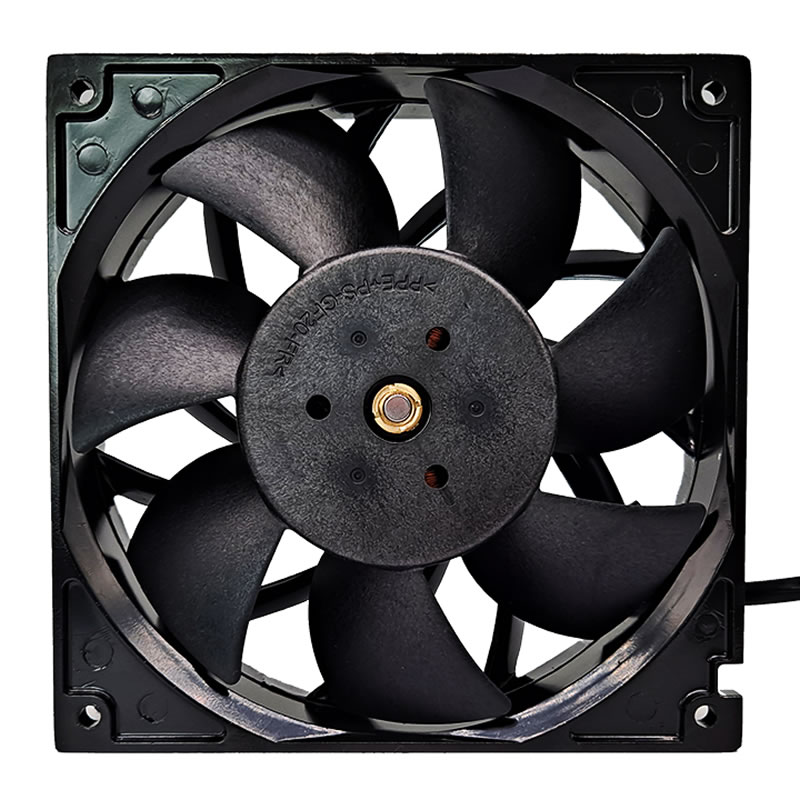

THB1448AE Delta 139.7×139.7x38mm Ball 48VDC 1.32A 325.90CFM(9.230m3/min) 1.650inchH2O 66.8dB(A) 52.80W 6100RPM 4-wire leads fan
Delta THB1448AE is a DC brushless axial flow fan with a nominal voltage of 48VDC (operating voltage 36-60VDC), maximum input current of 1.32A, power of 63.36W, and rotational speed of 6100RPM. It delivers a maximum air flow of 9.23m³/min (minimum 8.31m³/min) and maximum static pressure of 41.85mmH₂O (minimum 33.90mmH₂O), with an average acoustic noise of 66.8dB(A) (maximum 69.8dB(A)). The frame is die-cast aluminum, impeller is UL 94V-0 flame-retardant plastic, and double ball bearings are used, weighing 590g. Rotating clockwise from the nameplate side, it has UL 1007-F AWG#24 leads (red+ black- blue FG yellow PWM). Operating at -10°C to 70°C, storing at -40°C to 75°C, it features locked rotor protection (fire prevention within 96h of lock-up) and reverse polarity protection, with a 70,000-hour lifespan at 40°C/15%-65%RH. Supporting 20kHz PWM speed control (0-10VDC, 0%-100% duty cycle) and FG speed signal output (open collector mode), it suits high-power cooling in data center servers and industrial power supplies.
Specifications
| Model | THB1448AE |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 139.7×139.7×38 mm |
| Power Rating | 52.80 W |
| Approval Agency | CE, cURus, TUV |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) |
| Series | THB |
| Air Flow (m3) | 9.230 m3/min |
| Termination | 4 wire leads |
| Fan Speed | 6100 RPM |
| Fan Type | DC |
| Static Pressure | 1.650 inchH2O (41.85 mmH2O) |
| Noise Level | 66.8 dB(A) |
| Air Flow | 325.90 CFM |
| Voltage Rating | 48 VDC |
| Bearing Type | Ball Bearing |
| Weight | 1.3 lbs (600.0 g) |
| Category | Axial |
| Current Rating | 1.32 A |
| Operating Voltage | 36 ~ 60 VDC |
| Material Frame | Die-Cast Aluminum |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Number of blades | 7 |
| Subcategory | DC axial fan |
