S4E400-AP02-44 ebmpapst

Description

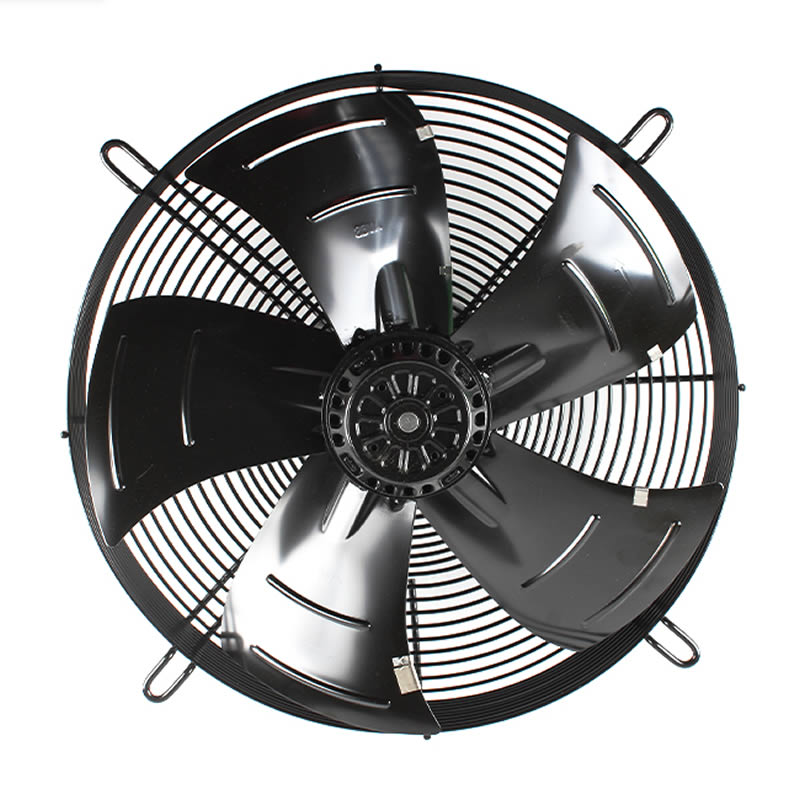

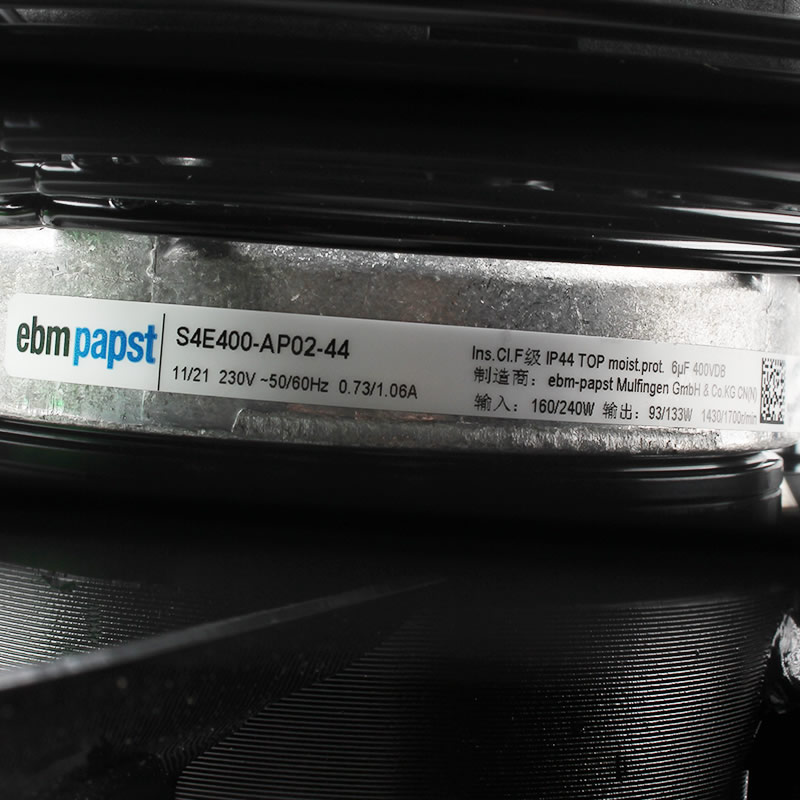

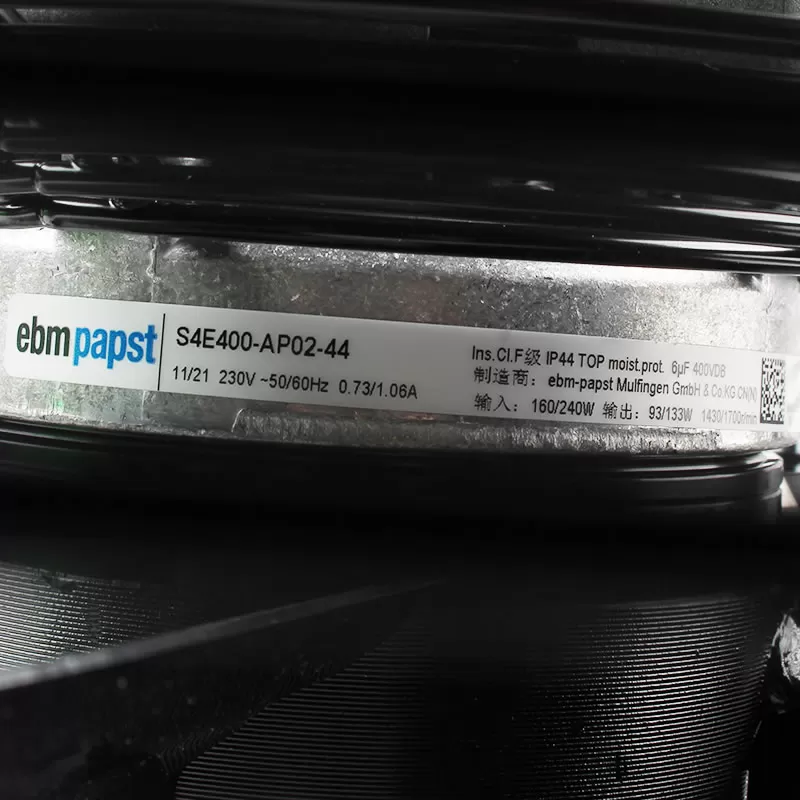

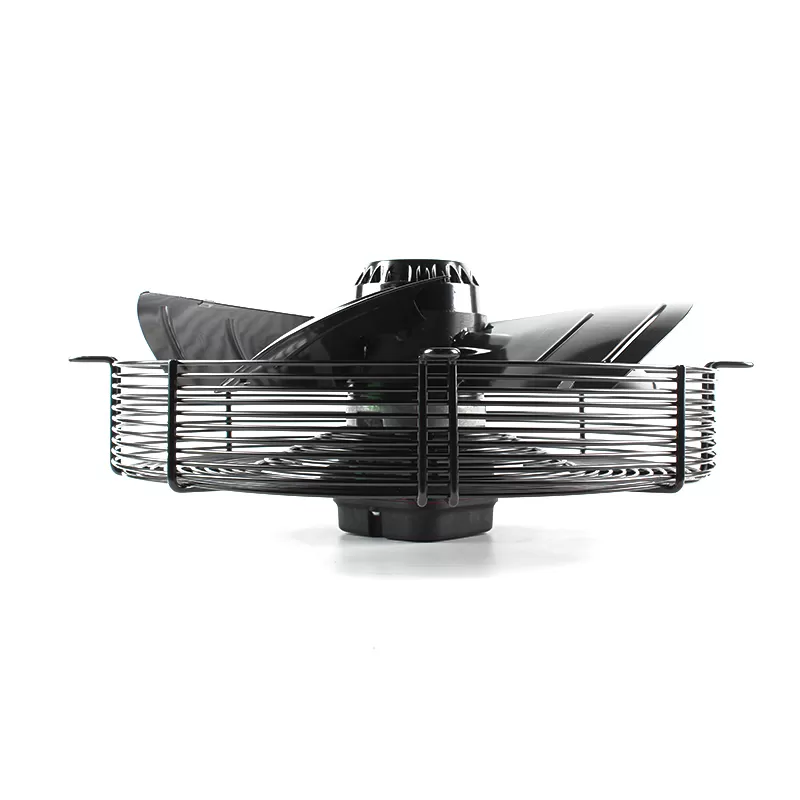

S4E400-AP02-44 ebmpapst 470x132mm 230VAC 160W 0.73A 5000m³/h 1430RPM 67dB(A) IP44 Terminal Box AC axial fan

The S4E400-AP02-44 AC axial fan from ebm-papst (sickled blades, S series) features a guard grille for short nozzles, with the motor model M4E074-EI. It is suitable for 1~230VAC power supply (at 50Hz: 160W power input, 0.73A current, 1430min⁻¹ speed, 150Pa max. back pressure; at 60Hz: 240W power input, 1.06A current, 1700min⁻¹ speed, 75Pa max. back pressure), with a max. ambient temperature of 60°C. The fan measures 400mm in size and weighs 6.1kg, equipped with 5 black-coated sheet steel blades and a guard grille made of phosphated steel with black plastic coating. It has a “V”-shaped airflow direction and counter-clockwise rotation (viewed from the rotor), with IP44 protection class and insulation class F. It supports horizontal shaft or rotor-on-bottom installation (rotor-on-top upon request), integrated with a thermal overload protector (TOP) and a 6μF/400VDB capacitor connected via a terminal box. At the optimal efficiency point, it delivers 2675m³/h airflow, 90Pa pressure increase, 1390min⁻¹ speed, and 31.9% overall efficiency, complying with CE and ErP directives, with performance data measured per ISO 5801.

Specifications
