Description

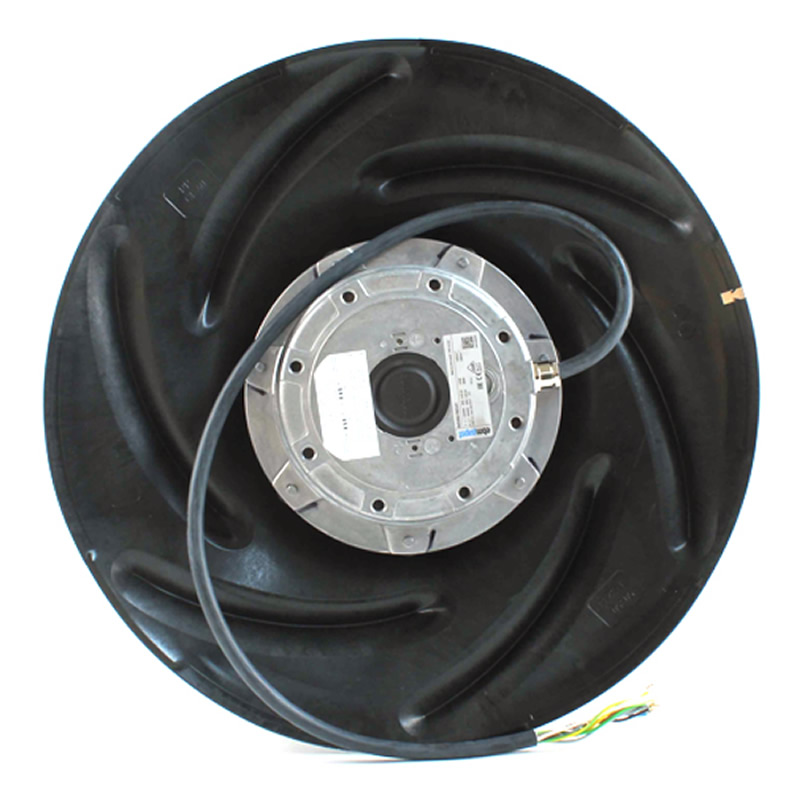

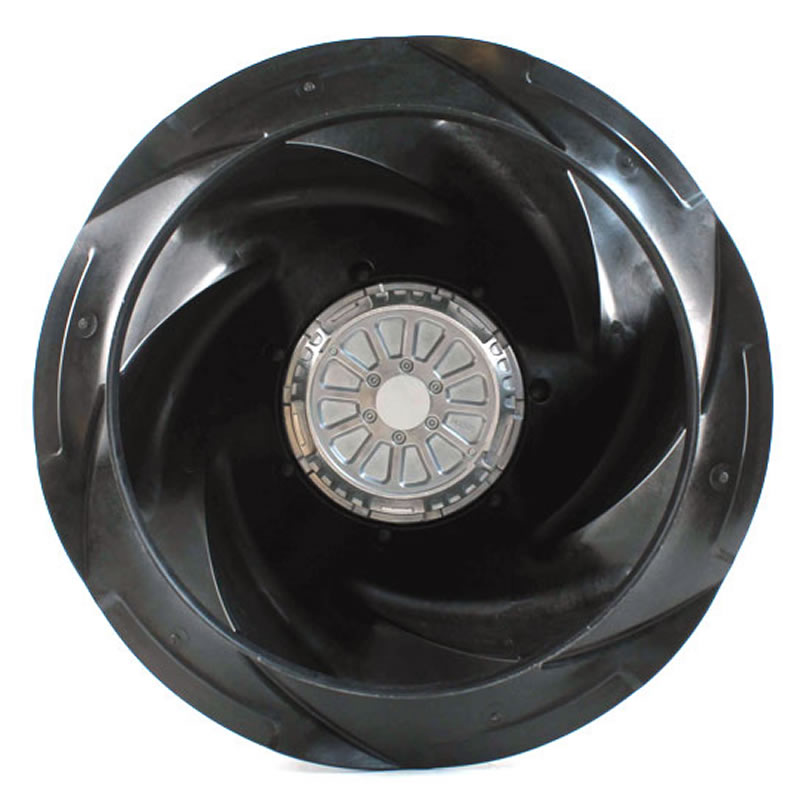

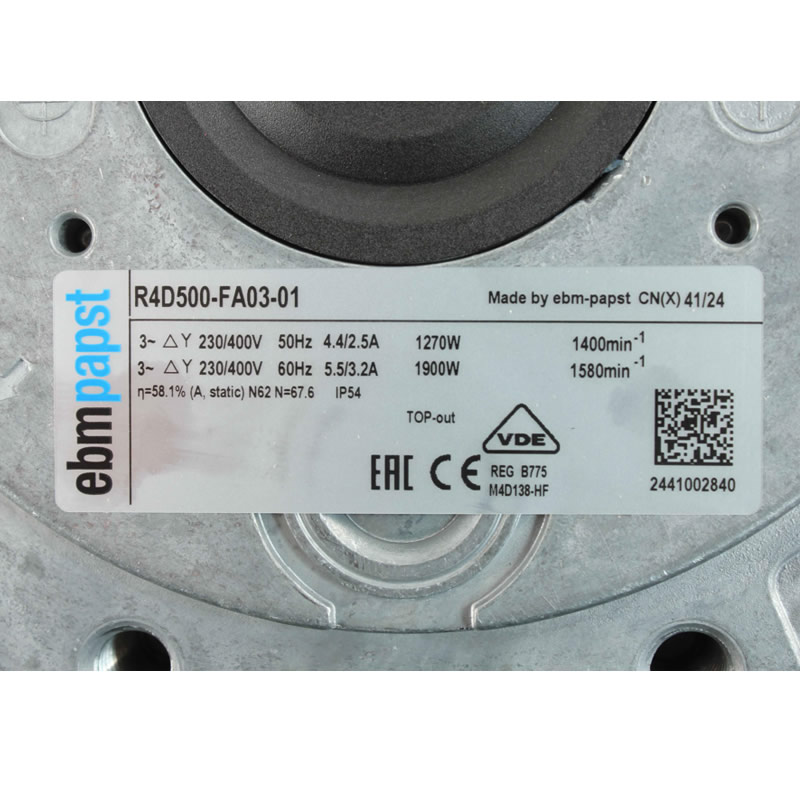

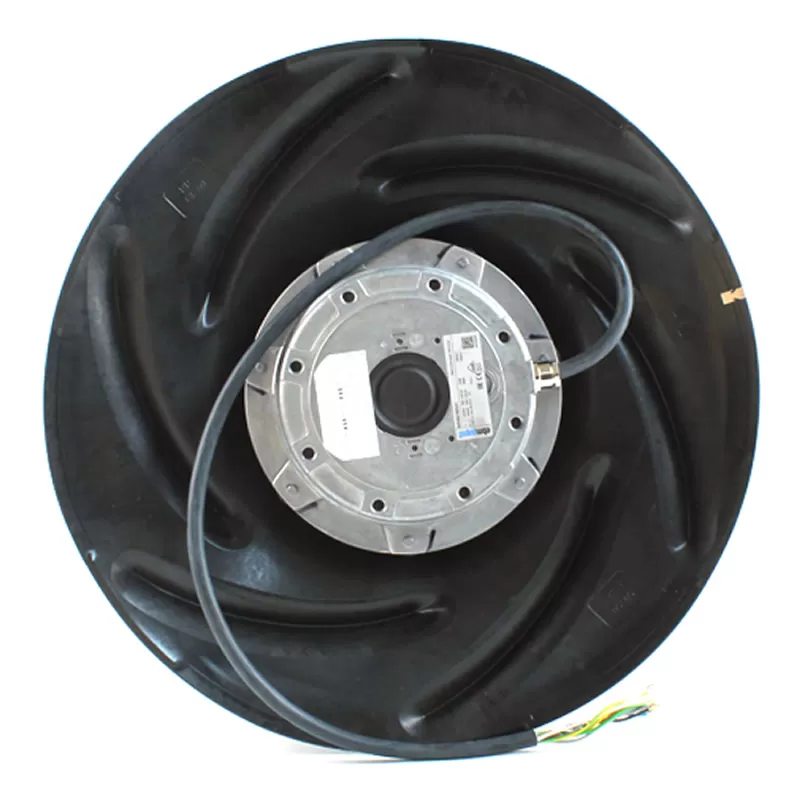

The ebm-papst R4D500-FA03-01 is a high-performance backward-curved centrifugal fan equipped with the M4D138-HF motor, designed for industrial ventilation and HVAC applications. It operates at 230/400V AC with a current rating of 4.4/2.5A and a power consumption of 1270/1900W. The fan features a 500 mm aluminum impeller, delivers up to 2800 RPM, and maintains a low noise level of 43 dB. With an IP54 protection rating and Class F insulation, it is suitable for demanding environments and can operate in temperatures ranging from -40°C to +85°C. The unit supports horizontal shaft mounting or rotor-down orientation, offering flexible installation options.
Specifications
| Model | R4D500-FA03-01 |
|---|---|
| Manufacturer | ebm-papst |
| Voltage Rating | 230 VAC |
| Current Rating | 4.4 A |
| Dimensions | 500 mm |
| Fan Speed | 1400 RPM |
| Power Rating | 1270 W |
| Bearing Type | Ball Bearing |
| Fan Type | EC |
| Motor | M4D138-HF |
| Subcategory | EC centrifugal fan |
| IP Rating | IP54 |
| Shipping Weight | 10 kg |
| Product PDF | R4D500-FA03-01-ebmpapst.pdf |
