Description

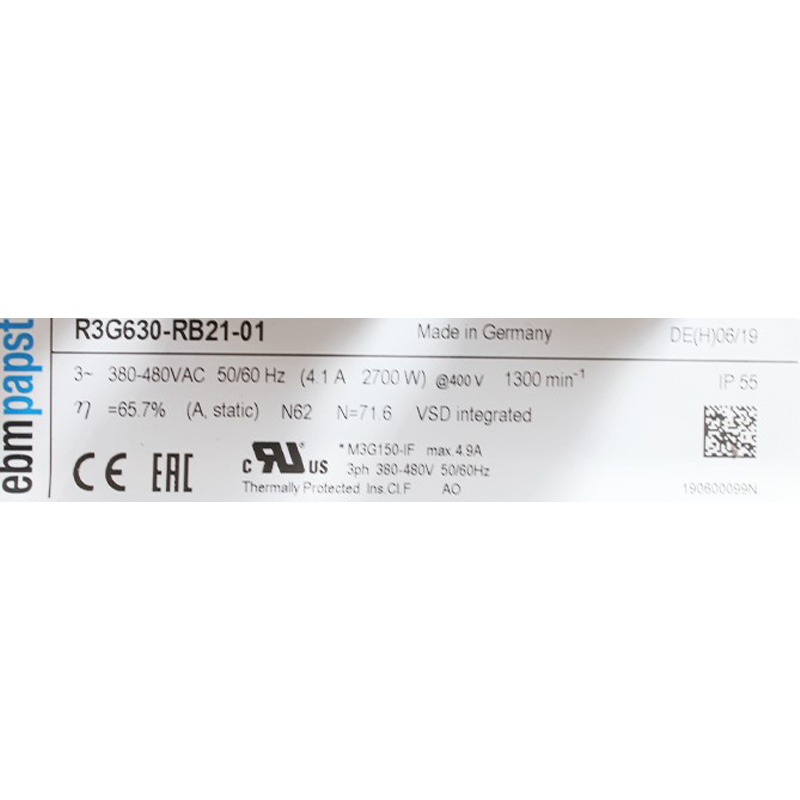

R3G630-RB21-01 ebmpapst Ball Bearing 630mm 400VAC 4.1A 2700W 1300RPM IP55 M3G150-IF centrifugal fan.

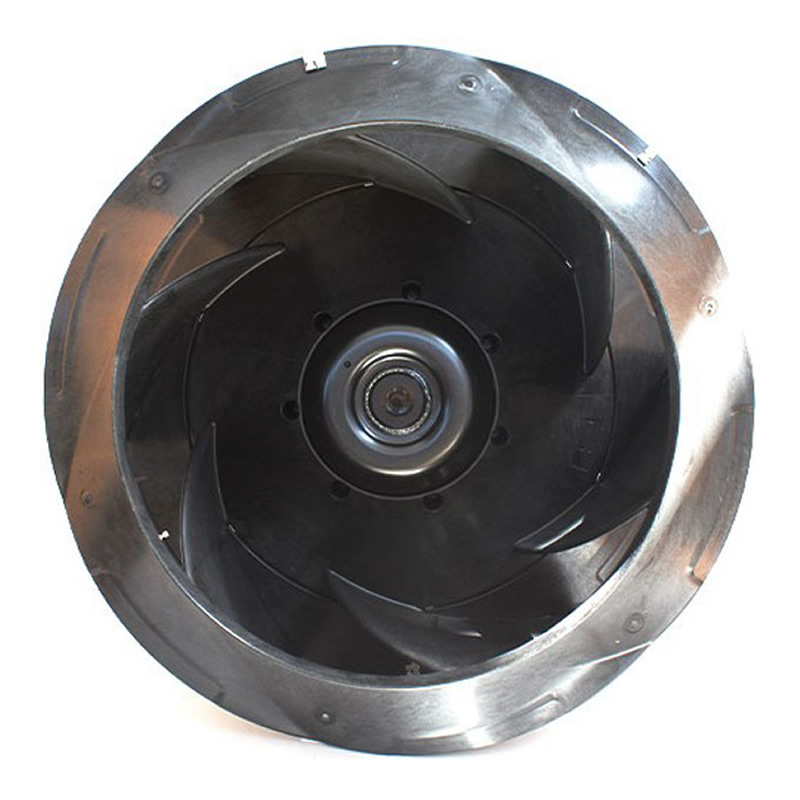

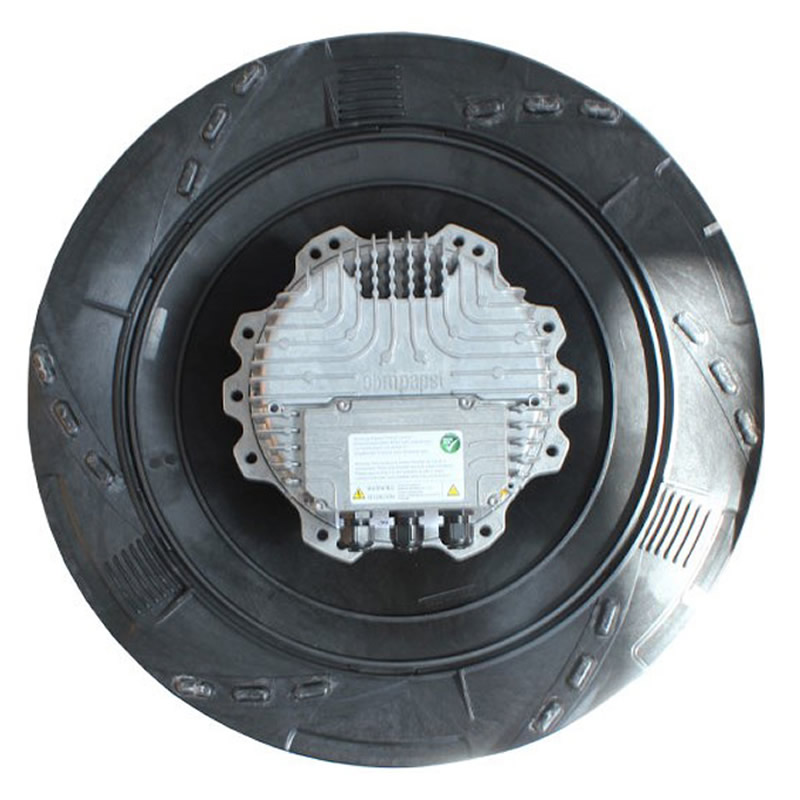

The ebm-papst R3G630-RB21-01 is a robust EC centrifugal fan designed for demanding applications. It features a large 630 mm impeller and utilizes durable ball bearings for extended operational life. This three-phase (3~) fan is designed to operate within a voltage range of 380 to 480 VAC, with a nominal voltage rating of 400 VAC and a current draw of 4.1 A, resulting in a power consumption of 2700 W. It achieves a fan speed of 1300 RPM and offers a high degree of protection against dust and water ingress with its IP55 rating. The fan is equipped with the M3G150-IF motor, further ensuring reliable performance.
Specifications
| Part Number | R3G630-RB21-01 |
|---|---|
| Manufacturer | ebm-papst |
| Bearing Type | Ball Bearing |
| Dimensions | 630 mm |
| Operating Voltage | 380 ~ 480 VAC |
| Voltage Rating | 400 VAC |
| Current Rating | 4.1 A |
| Power Rating | 2700 W |
| Fan Speed | 1300 RPM |
| IP Rating | IP55 |
| Motor | M3G150-IF |
| Phase | 3~ |
| Subcategory | EC centrifugal fan |
| Shipping Weight | 32 kg |
| Product PDF | R3G630-RB21-01-ebmpapst.pdf |
