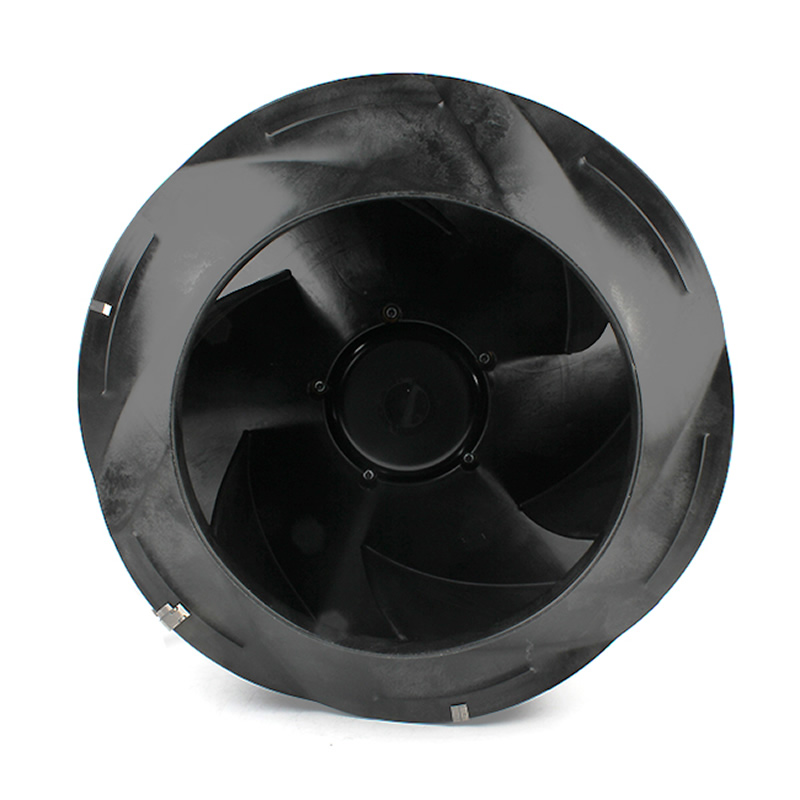

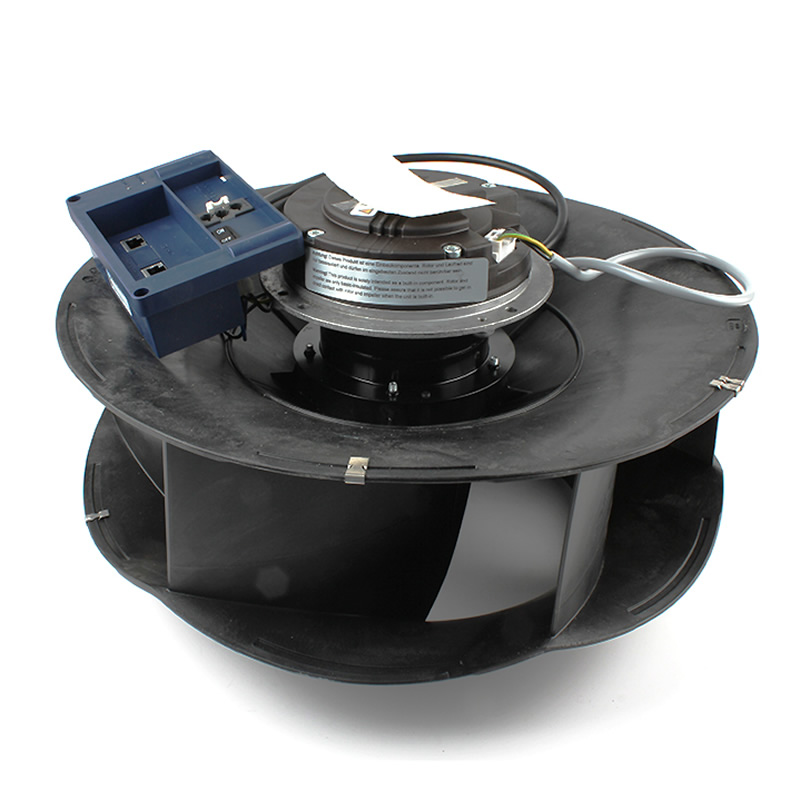

R3G400-RP45-54 ebmpapst 400mm 230VAC Ball Bearing 320W IP20 EC centrifugal fan
The ebm-papst R3G400-RP45-54 is an advanced and reliable 400 mm EC centrifugal fan powered by 230 VAC, suitable for applications demanding high static pressure, energy efficiency, and precise control. Operating efficiently at approximately 1300-1400 RPM, this fan typically consumes 330 W (1.5-1.7 A) to generate airflow up to 2500-3500 m³/h. Its IP54 protection, robust die-cast aluminum housing, and adaptability to operating temperatures from -25°C to 40°C (or higher) ensure stability in challenging environments. Integrated soft start, motor current limitation, and comprehensive electronic protection features make it a premium choice for precision air conditioning and industrial ventilation systems.
Specifications
| Model | R3G400-RP45-54 |
|---|---|
| Manufacturer | ebm-papst |
| Bearing Type | Ball Bearing |
| Dimensions | 400 mm |
| Voltage Rating | 230 VAC |
| Operating Voltage | 200 ~ 277 VAC |
| Power Rating | 320 W |
| Current Rating | 0.9 A, 1.7 A |
| IP Rating | IP20 |
| Subcategory | EC centrifugal fan |
