Description

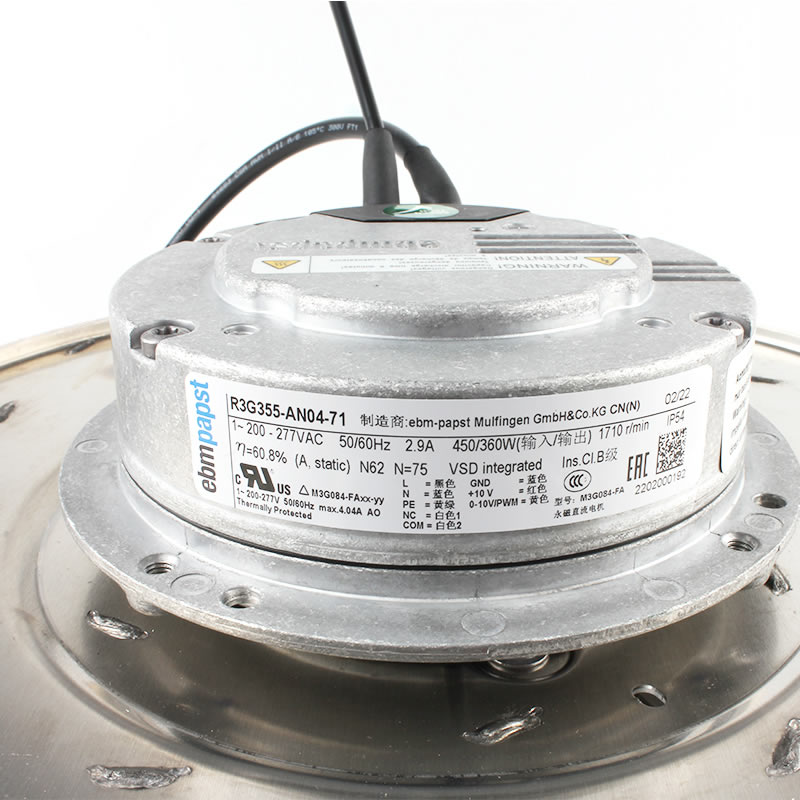

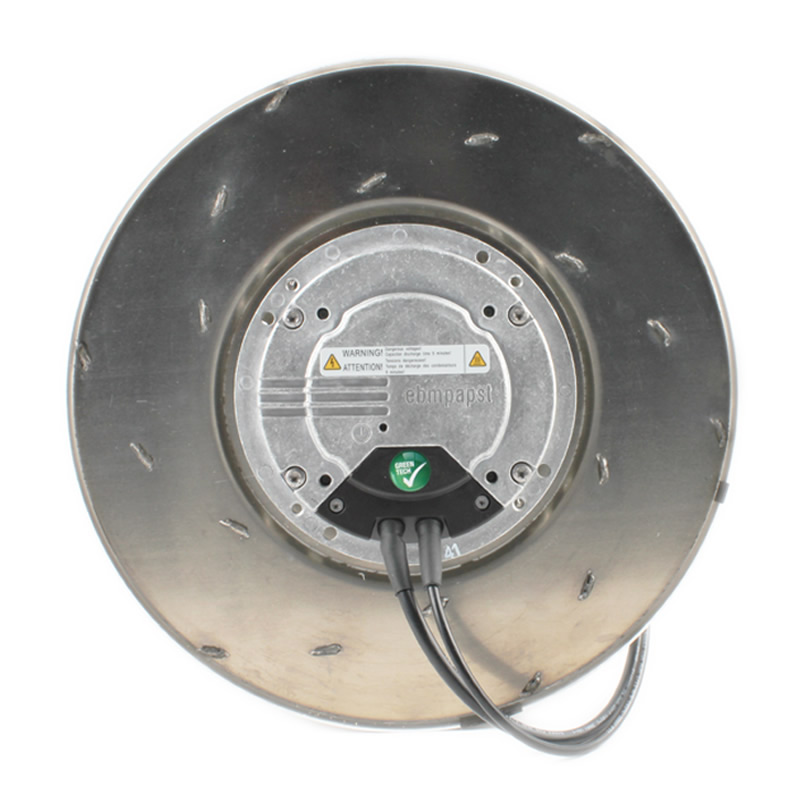

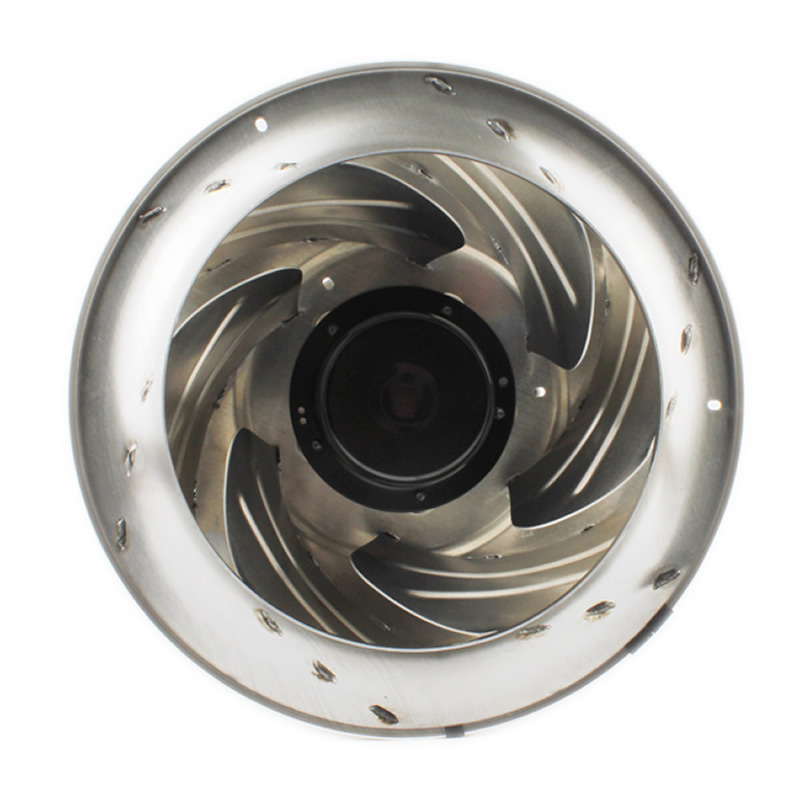

R3G355-AN04-71 ebmpapst 355mm 2.9A 450W 1710RPM IP54 230VAC 2185m³/h Ball Bearing EC centrifugal fan
The ebm-papst R3G355-AN04-71 is a sophisticated single-inlet EC centrifugal fan that runs on 230 VAC (200-277 VAC), providing exceptional performance. Operating at 1710-1715 RPM, this 450W fan efficiently moves 2185 m³/h of air at 400 Pa static pressure, achieving 60.8% overall efficiency. Its 355 mm aluminum impeller is housed within an IP54-protected die-cast aluminum casing. Equipped with advanced control capabilities and essential protective features like soft start, motor current limitation, line undervoltage detection, and electronics/motor over-temperature protection, it’s a dependable and versatile solution for critical air management needs.
Specifications
| Model | R3G355-AN04-71 |
|---|---|
| Manufacturer | ebm-papst |
| Dimensions | 355 mm |
| Operating Voltage | 200 ~ 277 VAC |
| Current Rating | 2.9 A |
| Power Rating | 450 W |
| Fan Speed | 1710 RPM |
| Bearing Type | Ball Bearing |
| Fan Type | EC |
| IP Rating | IP54 |
| Motor | M3G084-FA |
| Phase | 1~ |
| Voltage Rating | 230 VAC |
| Air Flow CMH | 2185 m³/h |
| Number of blades | 6 |
| Operating Temperature | -13 ~ 104°F (-25 ~ 40°C) |
| Subcategory | EC centrifugal fan |
| Shipping Weight | 8 kg |
| Product PDF | R3G355-AN04-71-ebmpapst.pdf |
