R2E220-AB06-05 ebmpapst

Description

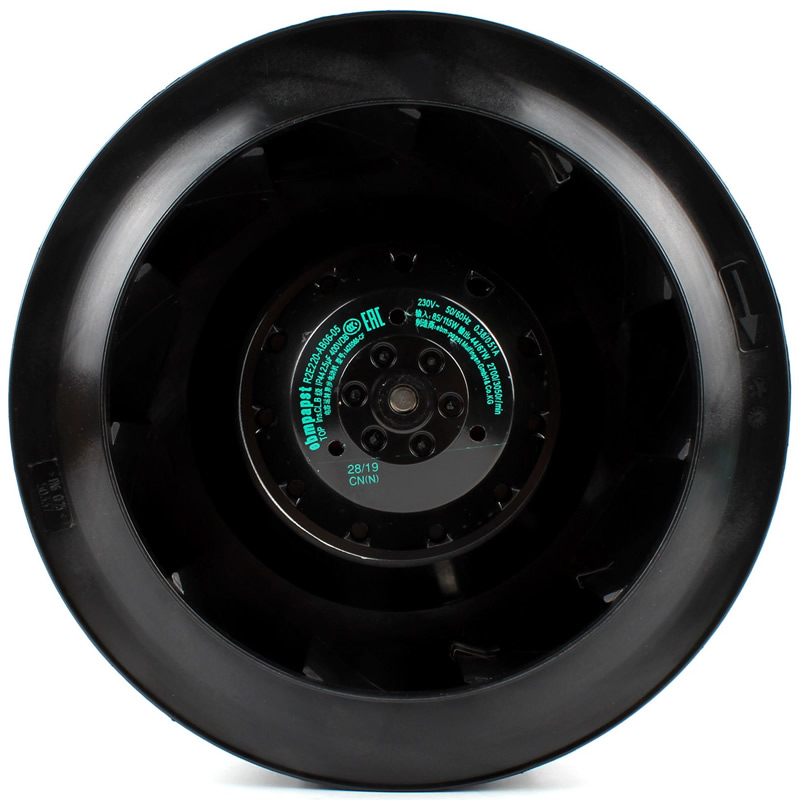

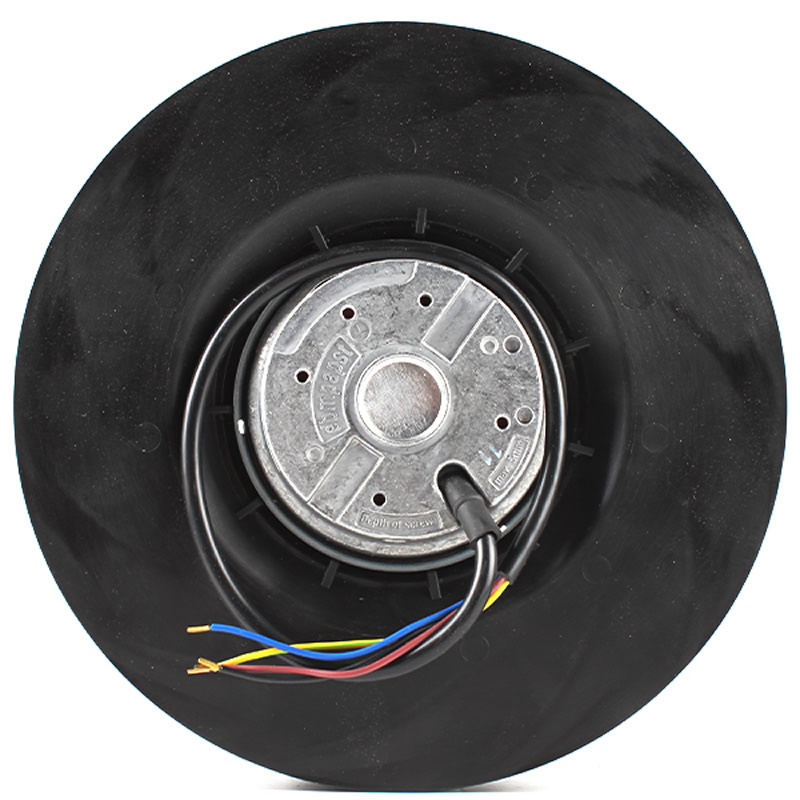

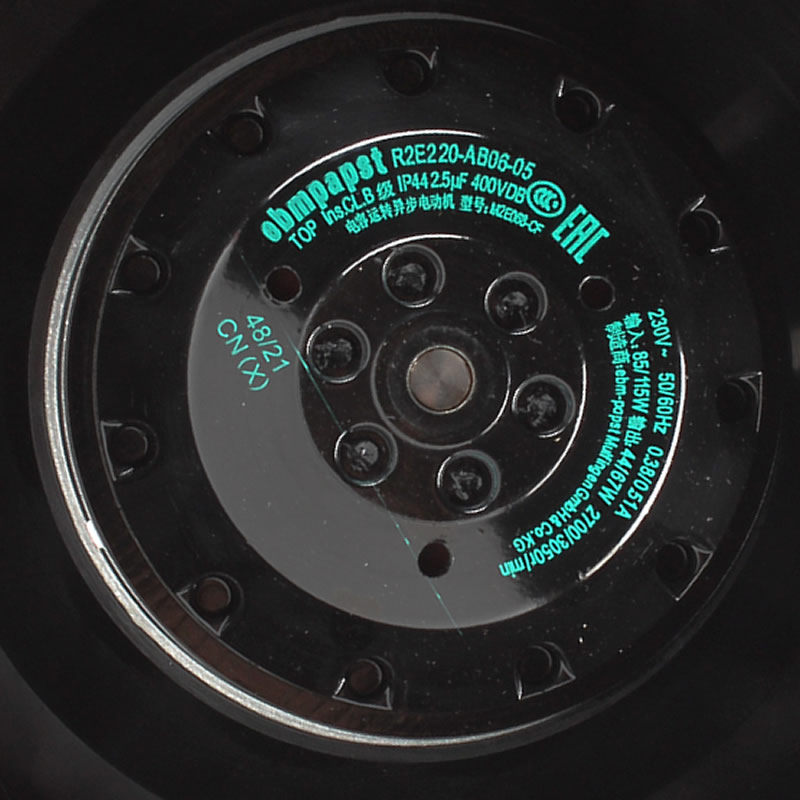

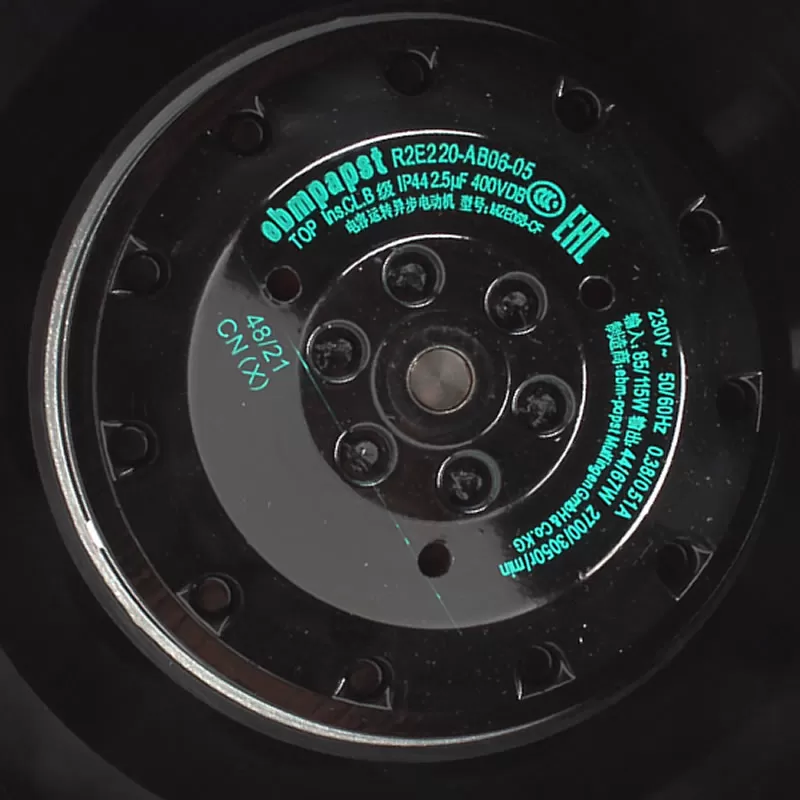

R2E220-AB06-05 ebmpapst 3050RPM 50/60Hz 75dB(A) 230VAC IP44 AC centrifugal fan.

The ebm-papst R2E220-AB06-05 is an AC centrifugal fan with backward-curved blades and a single inlet. It is driven by an integrated AC motor (specifically, motor type M2E068-CF).

Key Specifications and Features:

• Type: AC Centrifugal Fan, backward-curved, single inlet
• Motor: M2E068-CF (AC Motorized Impeller)
• Nominal Voltage: 230 VAC
• Dimensions: Approximately 220 mm in diameter and 71-73 mm in depth.
• Power Rating: 115 W
• Current: Specific current draw is not consistently available in the snippets but is related to the power rating and voltage.
• Frequency: Operates at 50 Hz (as indicated by airflow curves in some datasheets).
• Airflow: While specific maximum airflow values vary slightly across sources (e.g., 885 m³/h), datasheets typically include detailed airflow vs. static pressure curves.
• Static Pressure: Performance curves illustrate the static pressure capabilities.
• Bearing Type: Ball bearing
• Impeller Material: Glass-fiber reinforced PA plastic. It has 11 blades.
• Rotor Surface: Coated in black.
• Housing Material: One source mentions plastic housing, while others focus on the impeller and rotor materials.
• Weight: Approximately 1.75 kg (one source indicated 1.0 kg, but 1.75 kg appears more frequent in datasheet snippets).
• Direction of Rotation: Clockwise, viewed on the rotor.
• Mounting Position: Shaft horizontal or rotor on the bottom; rotor on top on request.
• Operating Temperature: Typically specified as -20 to 65°C or 0 to 45°C depending on the specific source or operating mode.Storage Temperature: -40 to +80°C.
• Motor Protection: Features an internally wired Thermal Overload Protector (TOP).
• Insulation Class: “B”
• Humidity Class: F1-2
• Protection Class: IP 44 (depending on installation and position as per EN 60034-5).
• Leakage Current: < 0.75 mA.
• Operation Mode: S1.
• Termination: Typically has connection lines, with some datasheets showing lead tips.
• Noise Level: Specific dB(A) values are not uniformly provided in the snippets, but performance data would include this.
• Approvals: CE, EN 60335-1, CCC, GOST.

Typical Applications:

As an AC centrifugal fan, the R2E220-AB06-05 is commonly used in applications requiring significant airflow against static pressure, such as:

• Ventilation systems
• Air conditioning units
• Electronic cabinet cooling
• Industrial machinery
• Heating equipment

The fan’s robust construction, integrated motor, and multiple certifications make it a reliable component for professional ventilation and cooling tasks. Note that an inlet ring (part number 09609-2-4013) is not typically included in the standard scope of delivery.

Specifications
