Description

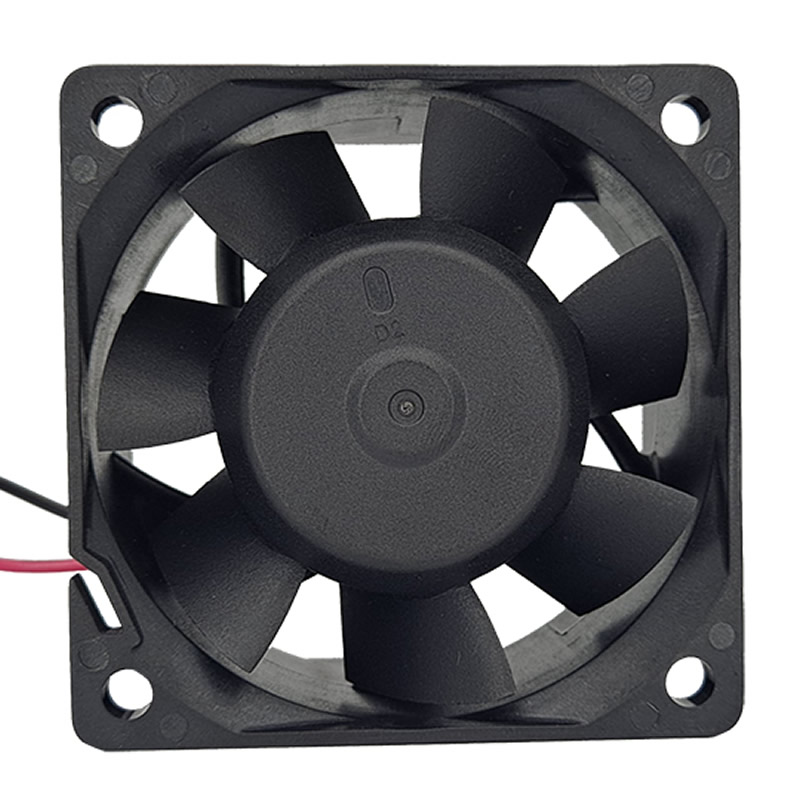

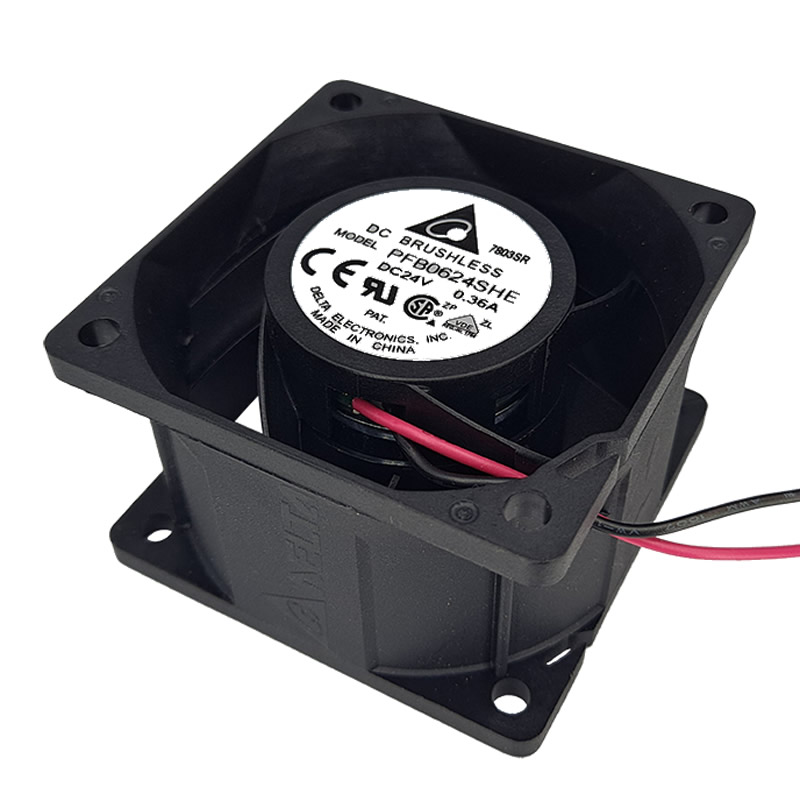

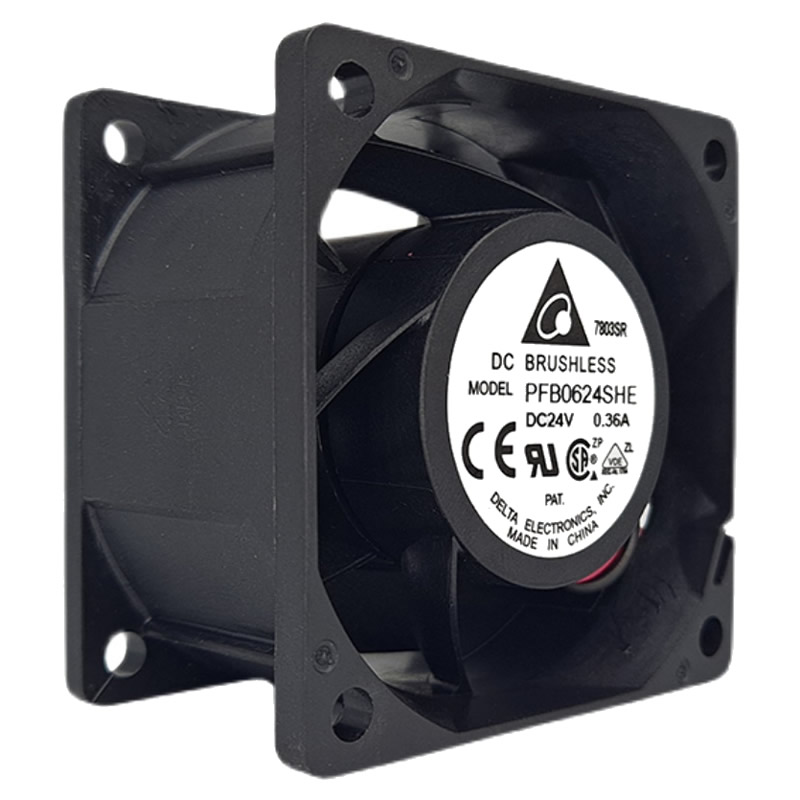

PFB0624SHE Delta 60x60x38mm Ball 24VDC 43.57CFM 0.918inchH2O 50.5dB(A) 6.72W 8000RPM 0.36A 2wireleads axial fan
Specifications
| Model | PFB0624SHE |
|---|---|
| Manufacturer | Delta Electronics |
| Noise Level | 50.5 dB(A) |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Operating Voltage | 14 ~ 26.4 VDC |
| Current Rating | 0.36 A |
| Category | Axial |
| Weight | 0.287 lb (130.18 g) |
| Bearing Type | Ball Bearing |
| Voltage Rating | 24 VDC |
| Air Flow | 43.57 CFM |
| Static Pressure | 0.918 inchH2O (23.32 mmH2O) |
| Power Rating | 6.72 W |
| Fan Type | DC |
| Fan Speed | 8000 RPM |
| Termination | 2 wire leads |
| Dimensions | 60x60x38 mm |
| Air Flow (m3) | 1.234 m3/min |
| Series | PFB |
| Features | Locked Rotor Protection |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | PFB0624SHE-Delta.pdf |
