Description
G3G200-GN18-01 ebmpapst 200mm 230VAC 750W 3.60A 5700RPM Ball Bearing centrifugal fan

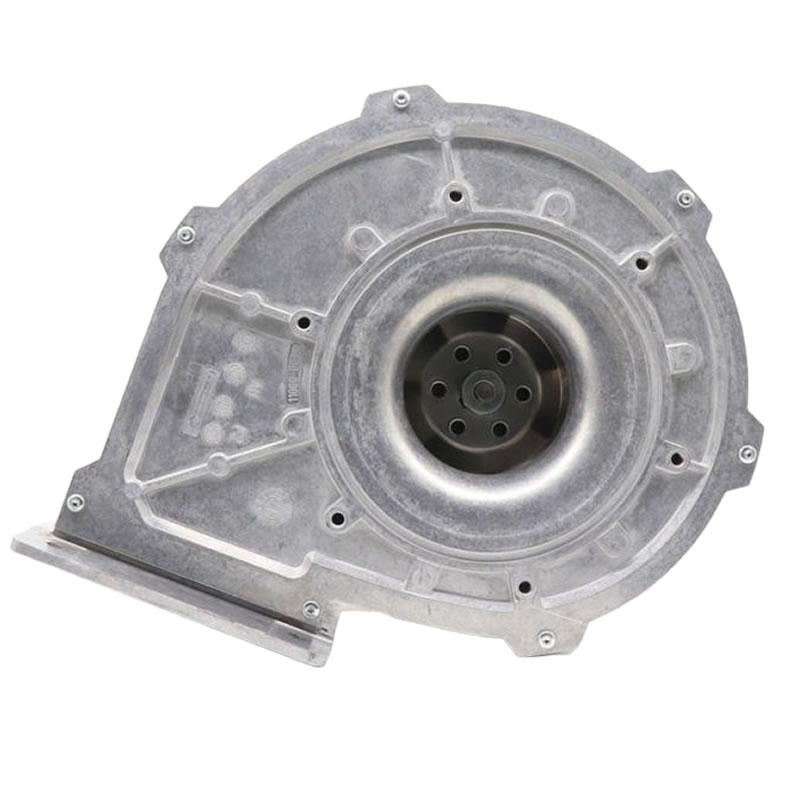

The ebm-papst G3G200-GN18-01 is an advanced 200 mm EC centrifugal fan engineered for exceptional performance and control. This 230 VAC fan achieves a high speed of 5700 RPM with 750 W (3.6 A) power consumption, delivering a powerful airflow of 485 m³/h and high pressure output of 2219 Pa. With its IP20 protection, robust die-cast aluminum housing, and 9.2 kg weight, it operates stably from -20°C to 60°C. The fan offers precise 0-10 VDC/PWM speed control and incorporates comprehensive electronic protection, including thermal overload, locked-rotor, and undervoltage detection, making it a reliable solution for demanding applications like gas boilers and industrial processes.
Other model name: M3G084-DF18-50
Specifications
| Model | G3G200-GN18-01 |
|---|---|
| Manufacturer | ebm-papst |
| Dimensions | 200 mm |
| Voltage Rating | 230 VAC |
| Power Rating | 750 W |
| Motor | M3G084-DF |
| Phase | 1~ |
| Current Rating | 3.60 A |
| Fan Speed | 5700 RPM |
| Bearing Type | Ball Bearing |
| Air Flow CMH | 485 m³/h |
| Subcategory | EC centrifugal fan |
| Shipping Weight | 10 kg |
| Product PDF | G3G200-GN18-01-ebmpapst.pdf |
