Description

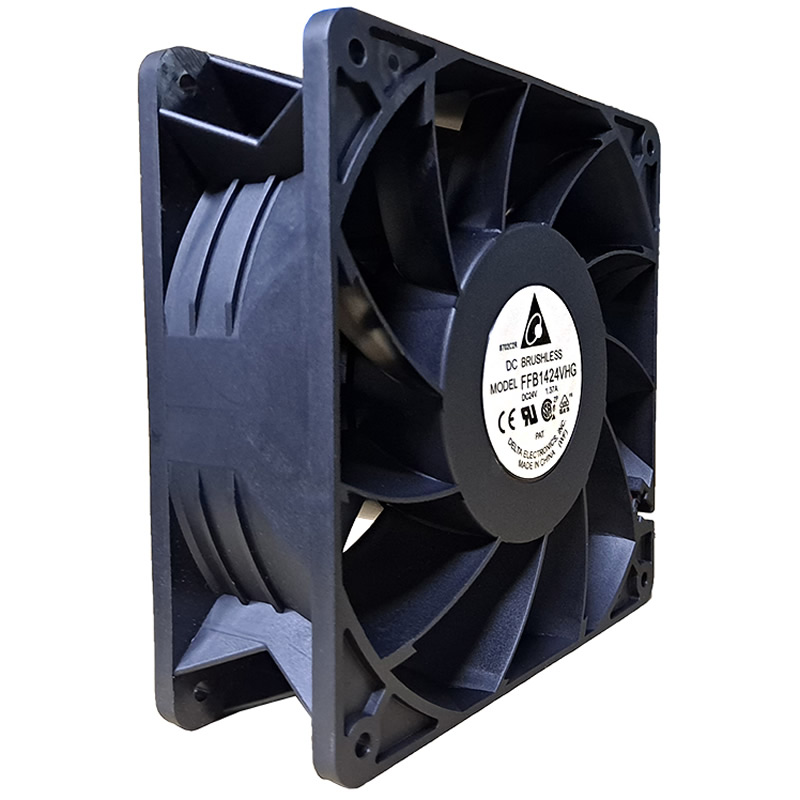

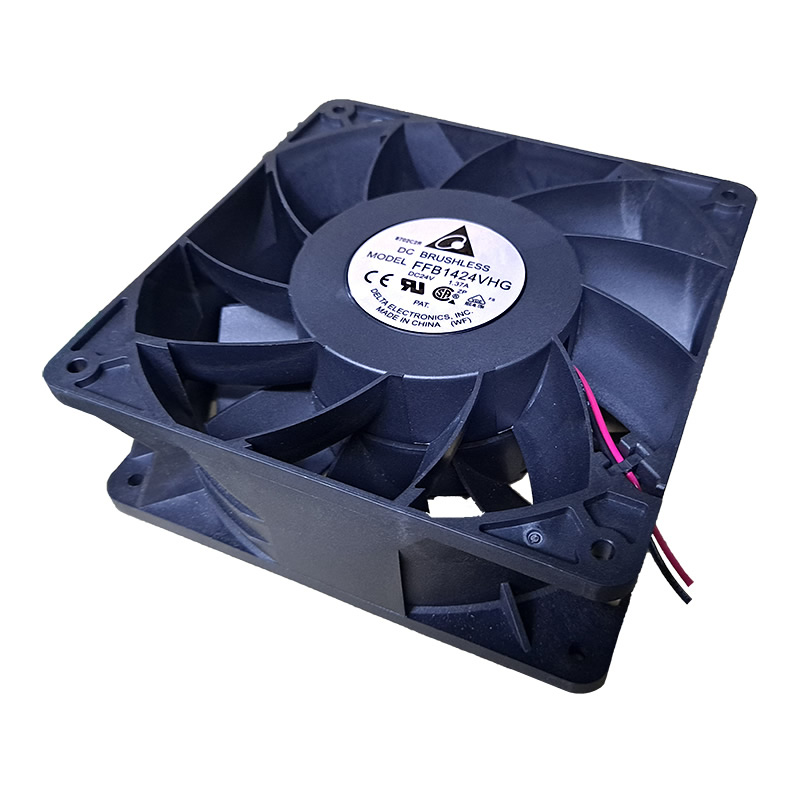

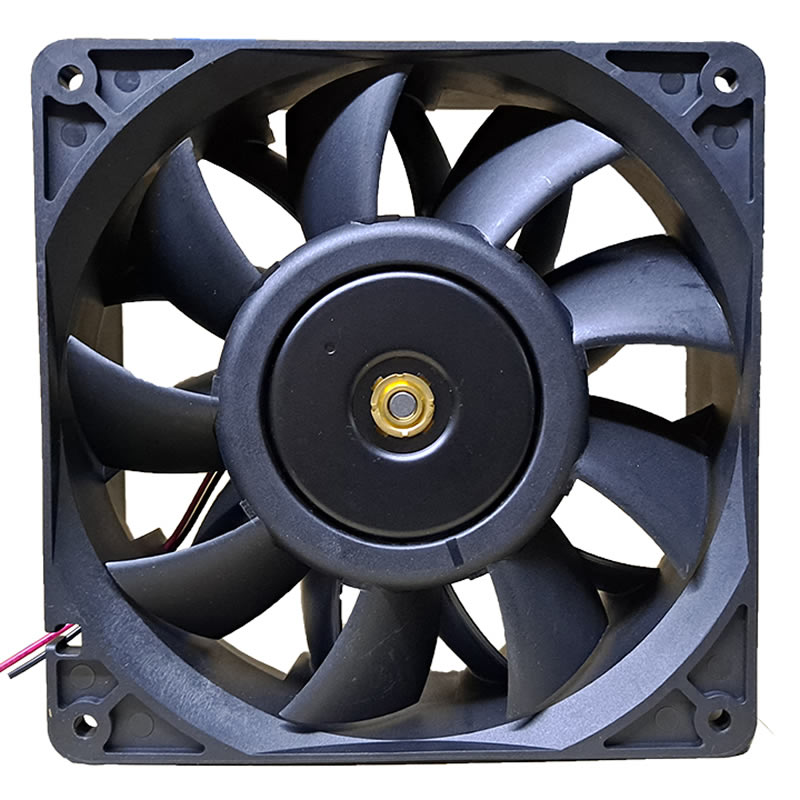

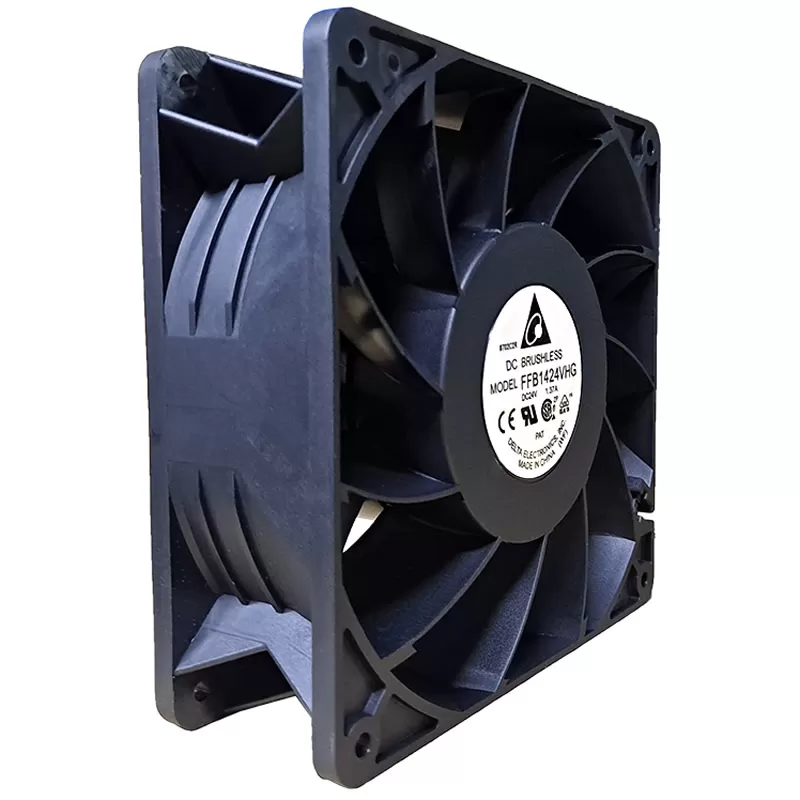

FFB1424VHG Delta 24VDC 139.7×139.7×50.80mm 252.1CFM 0.644inH2O(160.4Pa) Ball 58.5dB(A) 21.84W 3200RPM 2 Wire Leads DC Fan
Specifications
| Part Number | FFB1424VHG |
|---|---|
| Manufacturer | Delta Electronics |
| Series | FFB |
| Voltage Rating | 24 VDC |
| Dimensions | 139.7×139.7×50.80 mm |
| Air Flow | 252.1 CFM |
| Air Flow (m3) | 7.06 m³/min |
| Static Pressure | 0.644 in H2O (160.4 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Noise Level | 58.5 dB(A) |
| Power Rating | 21.84 W |
| Fan Speed | 3200 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 122°F (-10 ~ 50°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 1.5 lbs (670.0 g) |
| Shipping Weight | 0.75 kg |
