Description

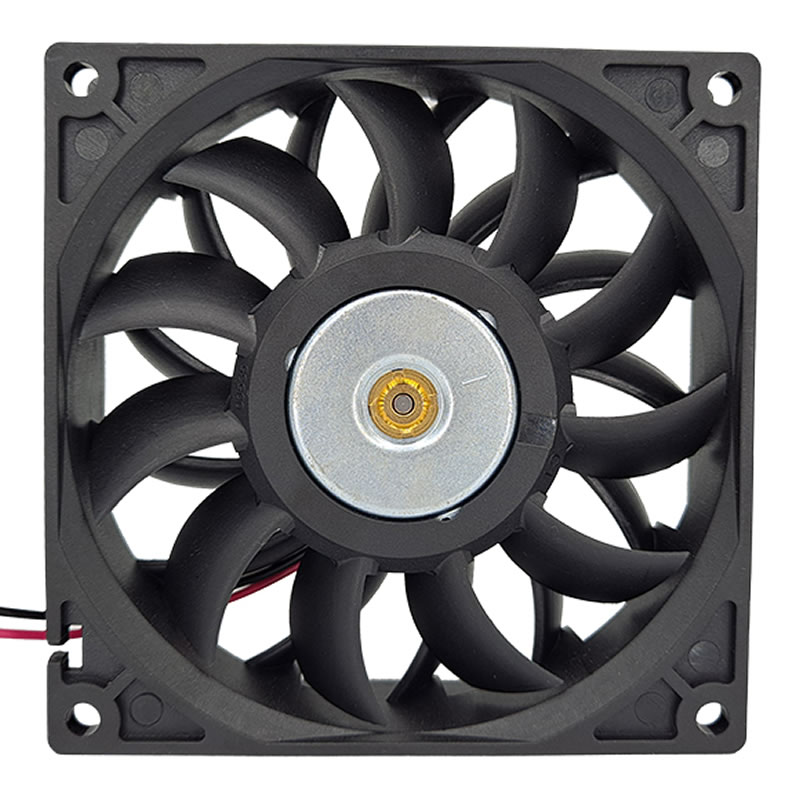

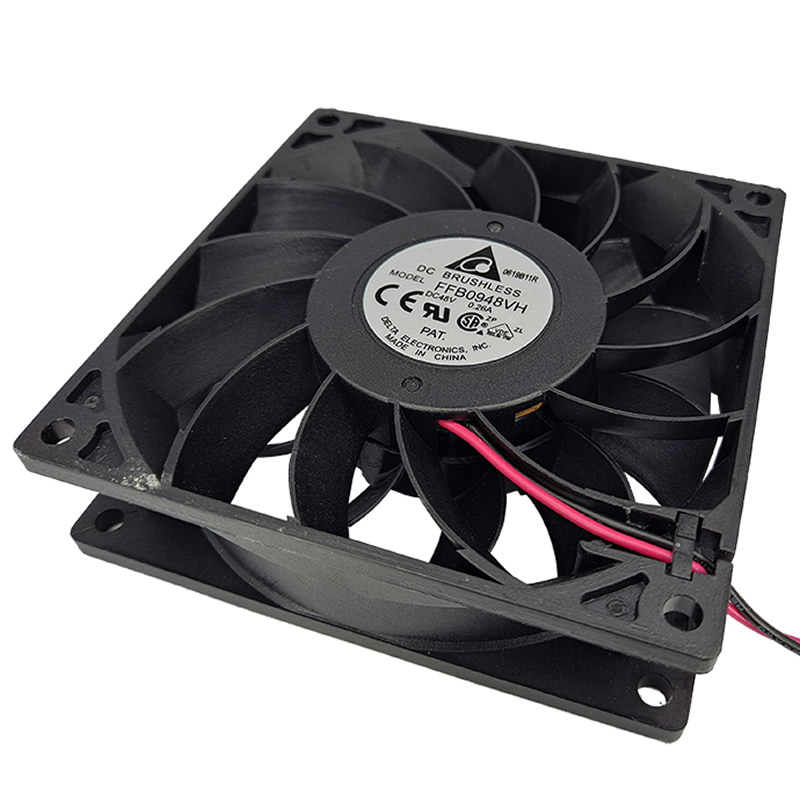

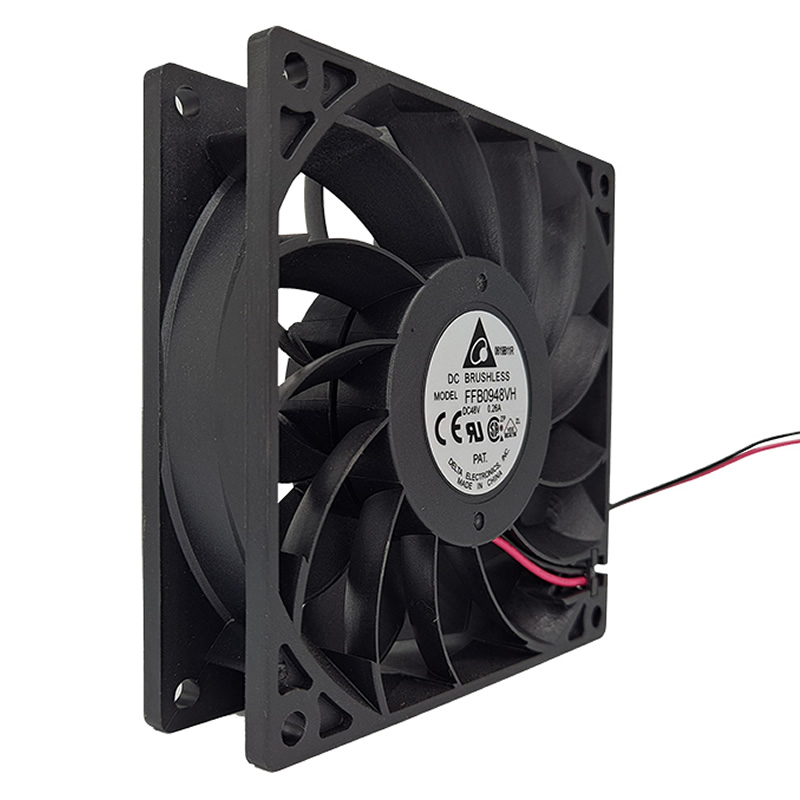

FFB0948VH Delta 92x92x25.40mm Ball 48VDC 81.97CFM(2.321m3/min) 0.319inchH2O(08.11mmH2O) 48.2dB(A) 8.16W 3700RPM 3wireleads fan
Specifications
| Part Number | FFB0948VH |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 92x92x25.40 mm |
| Power Rating | 8.16 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | FFB |
| Air Flow (m3) | 2.321 m3/min |
| Termination | 3 wire leads |
| Fan Speed | 3700 RPM |
| Fan Type | DC |
| Static Pressure | 0.319 inchH2O (08.11 mmH2O) |
| Noise Level | 48.2 dB(A) |
| Air Flow | 81.97 CFM |
| Voltage Rating | 48 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.286 lb (129.73 g) |
| Category | Axial |
| Current Rating | 0.17 A |
| Operating Voltage | 28 ~ 53 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40°C |
| Shipping Weight | 0.25 kg |
| Product PDF | FFB0948VH-Delta.pdf |
