Description

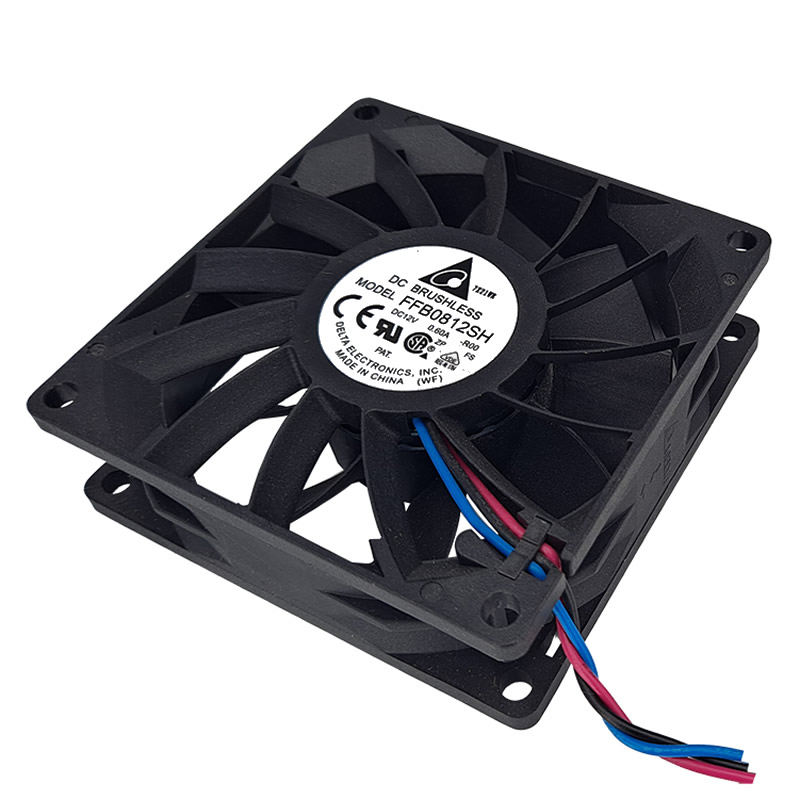

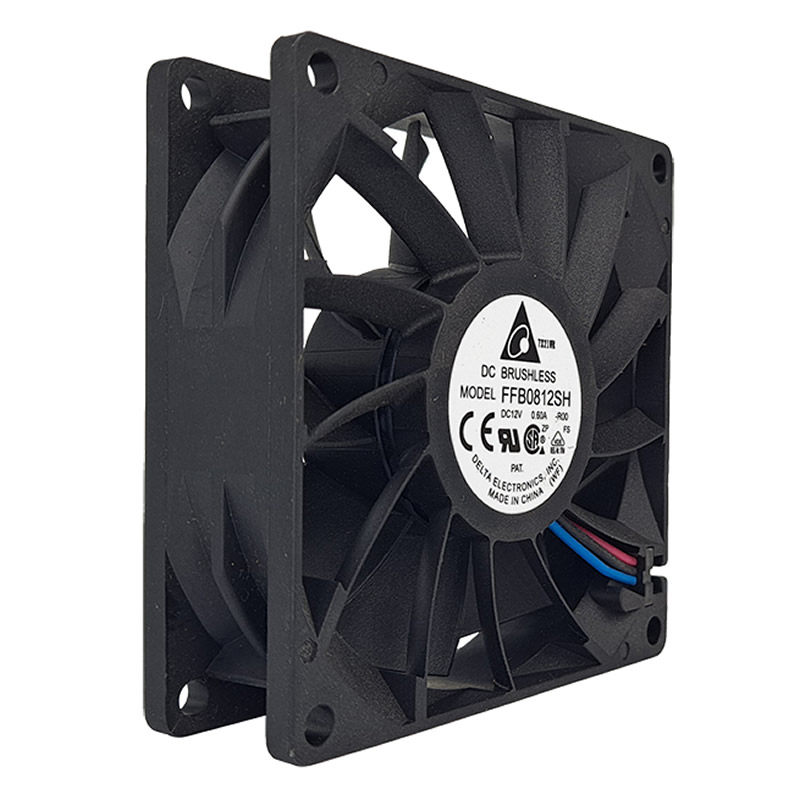

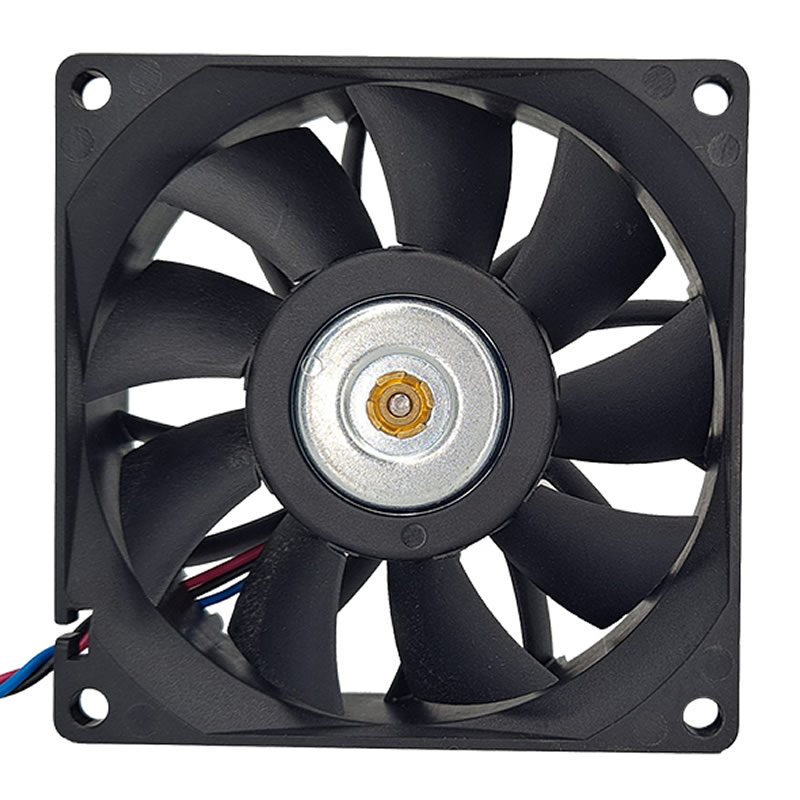

FFB0812SH-R00 Delta 80x80x25.40mm Ball 12VDC 67.02CFM(1.898m3/min) 0.392inchH2O(9.955mmH2O) 48.6dB(A) 6.00W 4500RPM 3wireleads fan
Specifications
| Model | FFB0812SH-R00 |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 6.00 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Sensor |
| Series | FFB |
| Air Flow (m3) | 1.898 m3/min |
| Dimensions | 80x80x25.40 mm |
| Termination | 3 wire leads |
| Fan Speed | 4500 RPM |
| Fan Type | DC |
| Static Pressure | 0.392 inchH2O (9.955 mmH2O) |
| Noise Level | 48.6 dB(A) |
| Air Flow | 67.02 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.253 lb (114.76 g) |
| Category | Axial |
| Current Rating | 0.6 A |
| Operating Voltage | 4 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | FFB0812SH-R00-Delta.pdf |
