Description

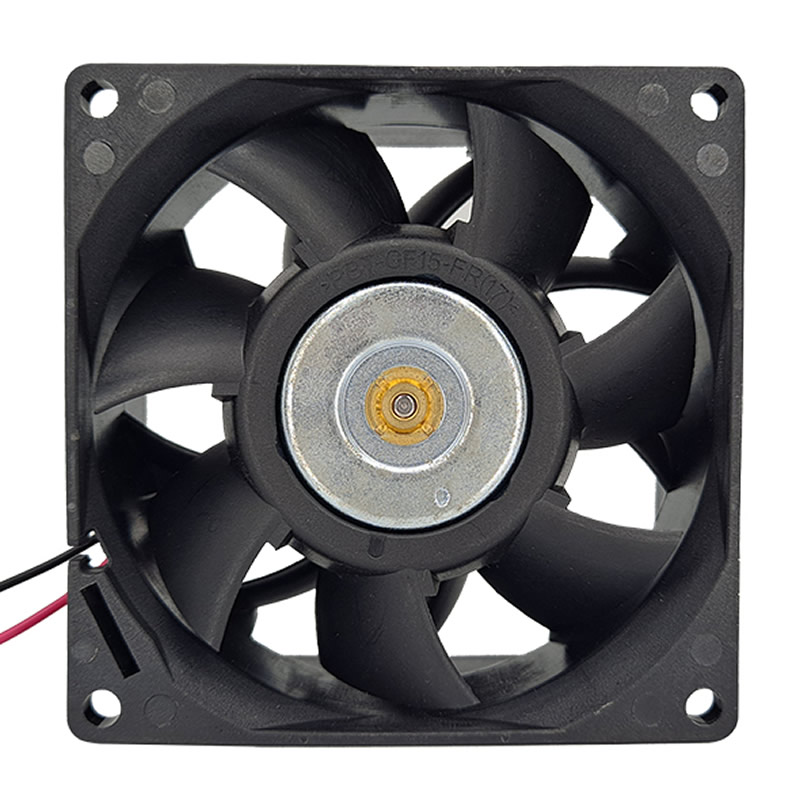

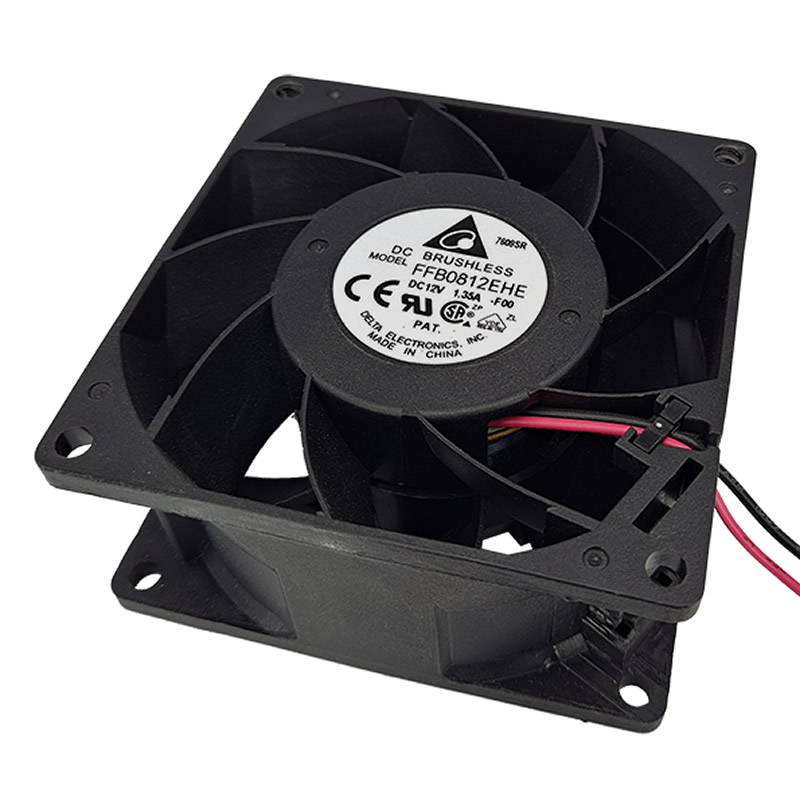

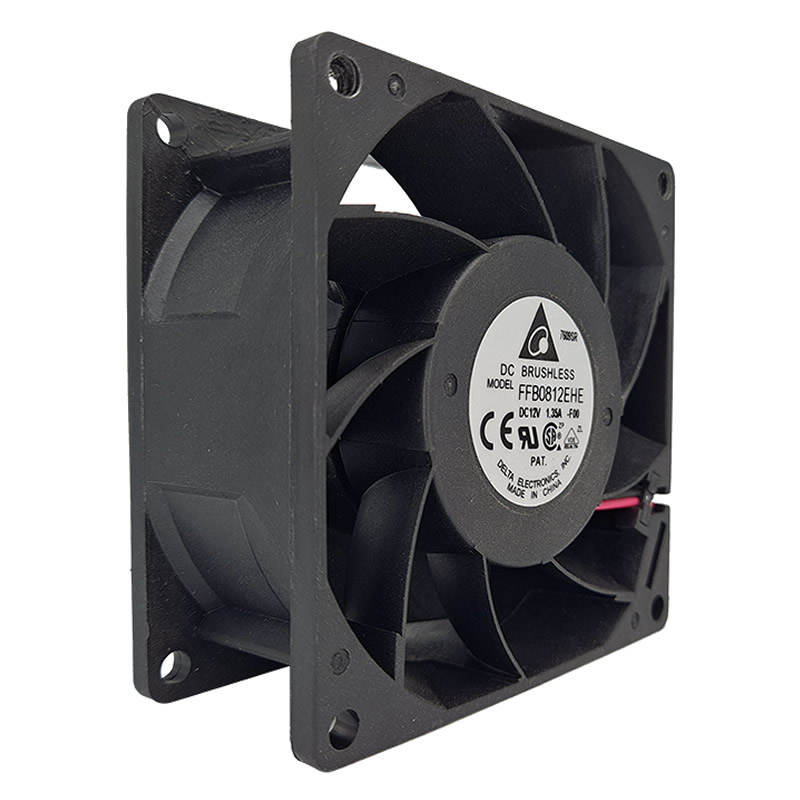

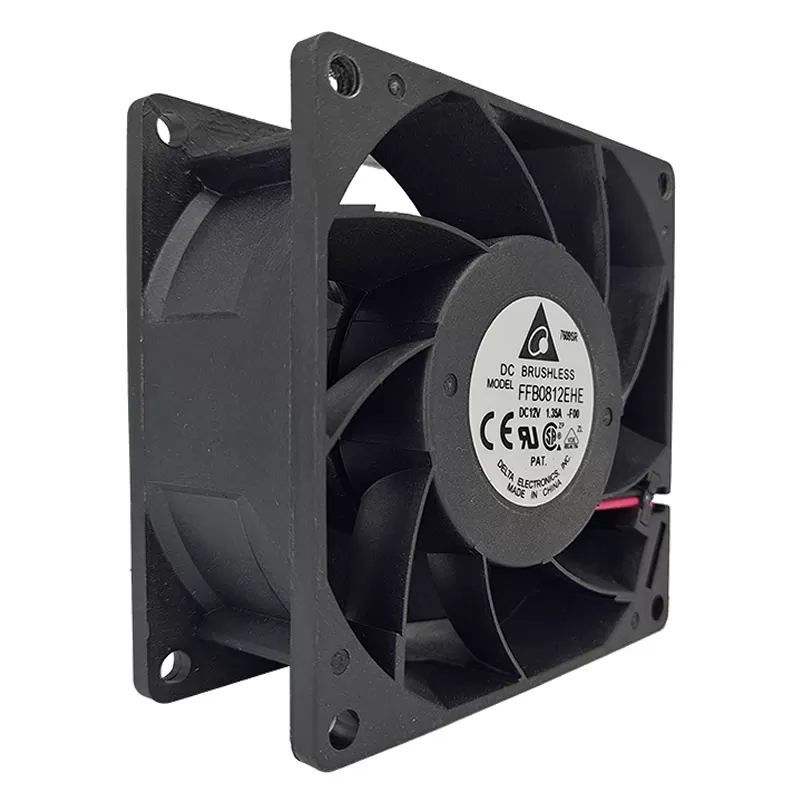

FFB0812EHE-F00 Delta 80x80x38mm Ball 12VDC 80.16CFM(2.270m3/min) 0.812inchH2O(20.63mmH2O) 52.5dB(A) 10.80W 5700RPM 3wireleads fan
Specifications
| Part Number | FFB0812EHE-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 10.80 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | FFB |
| Air Flow (m3) | 2.270 m3/min |
| Dimensions | 80x80x38 mm |
| Fan Speed | 5700 RPM |
| Fan Type | DC |
| Static Pressure | 0.812 inchH2O (20.63 mmH2O) |
| Noise Level | 52.5 dB(A) |
| Air Flow | 80.16 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.375 lb (170.1 g) |
| Category | Axial |
| Current Rating | 0.90 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Termination | 3 wire leads |
| Number of blades | 7 |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | FFB0812EHE-F00-Delta.pdf |
