Description

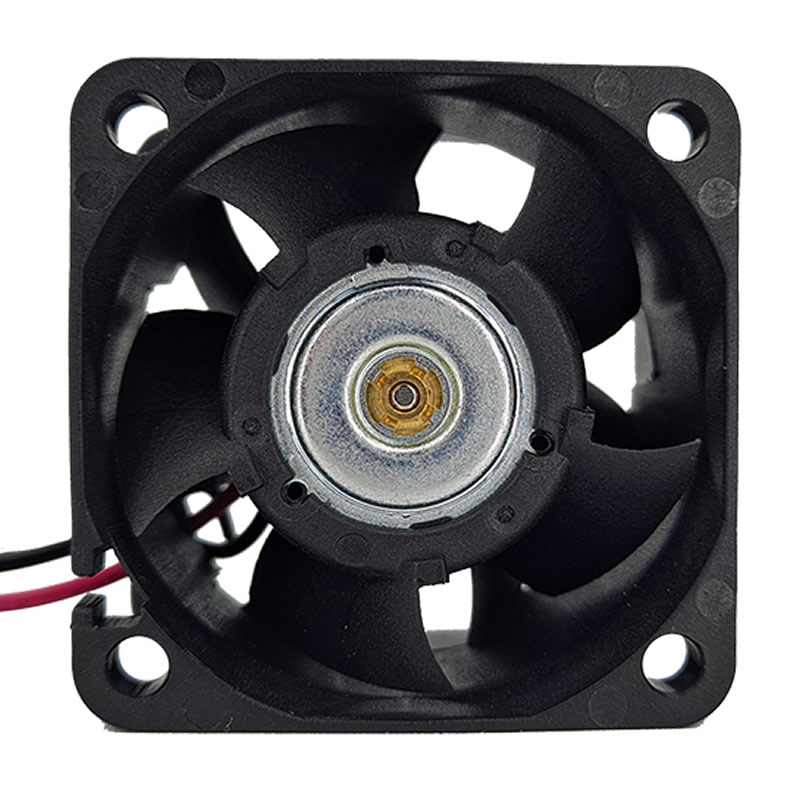

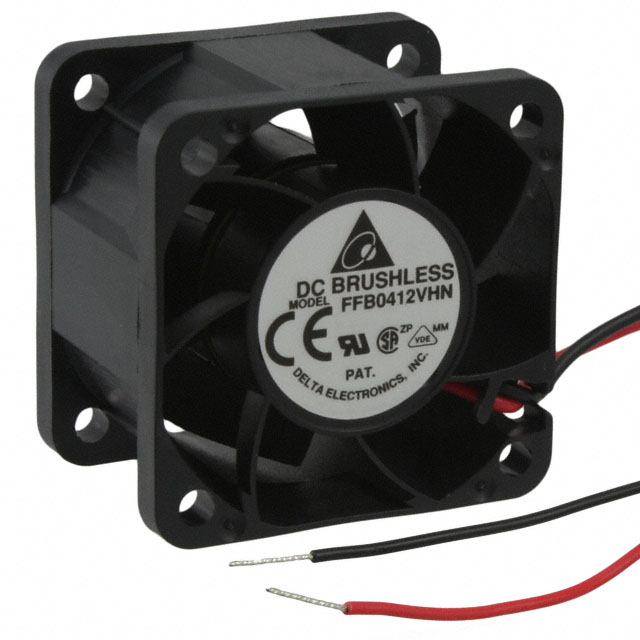

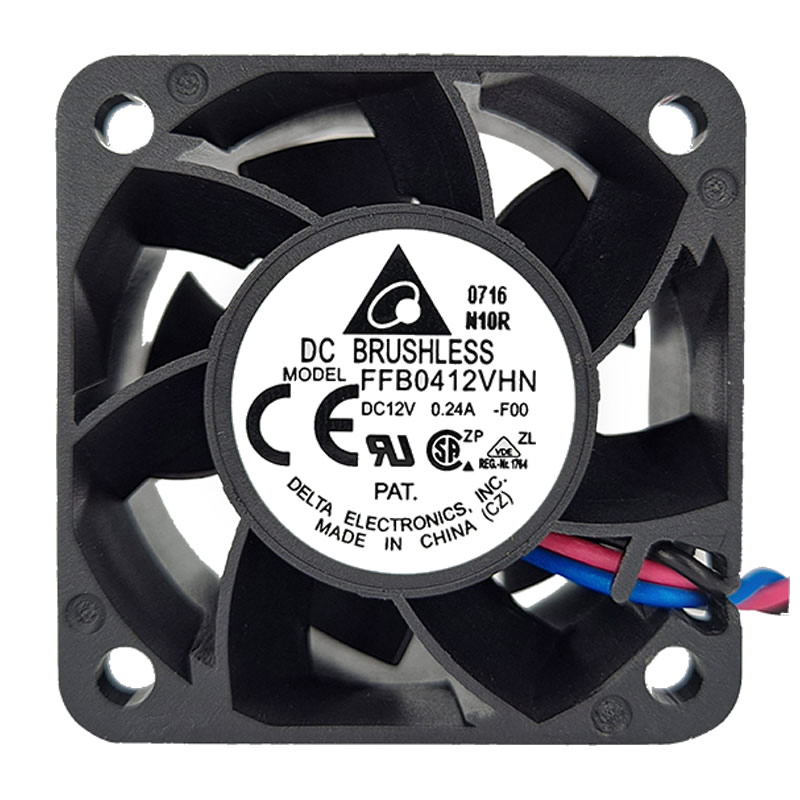

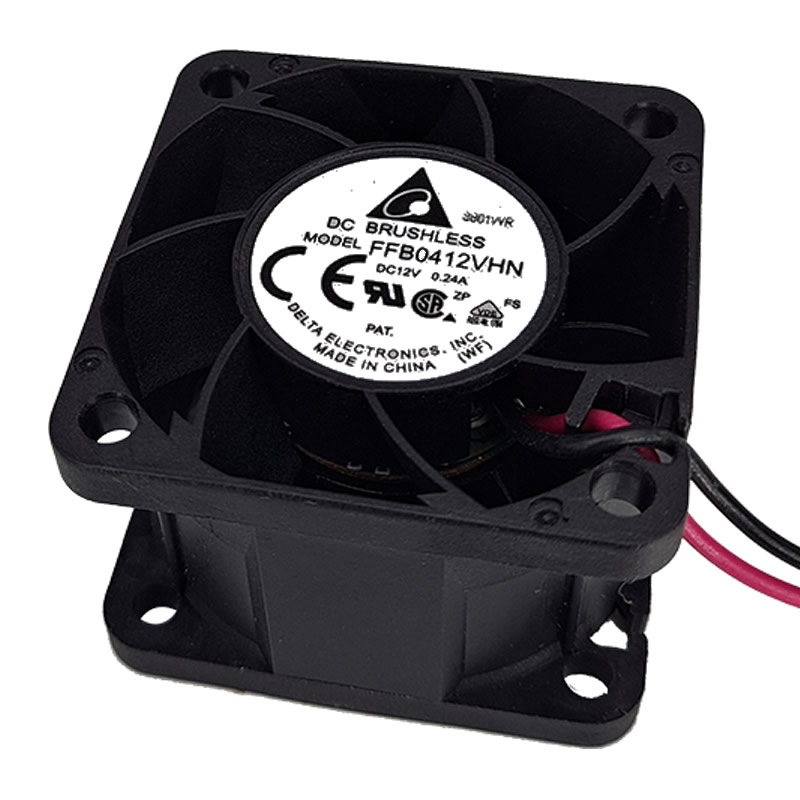

FFB0412VHN Delta 40x40x28mm Ball 12VDC 15.79CFM(0.447m3/min) 0.509inchH2O(12.94mmH2O) 45.0dB(A) 1.92W 9500RPM 2wireleads fan
Specifications
| Model | FFB0412VHN |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 1.92 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | FFB |
| Air Flow (m3) | 0.447 m3/min |
| Dimensions | 40x40x28 mm |
| Termination | 2 wire leads |
| Fan Speed | 9500 RPM |
| Fan Type | DC |
| Static Pressure | 0.509 inchH2O (12.94 mmH2O) |
| Noise Level | 45.0 dB(A) |
| Air Flow | 15.79 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.071 lb (32.21 g) |
| Category | Axial |
| Current Rating | 0.24 A |
| Operating Voltage | 4.5 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | FFB0412VHN-Delta.pdf |
