Description

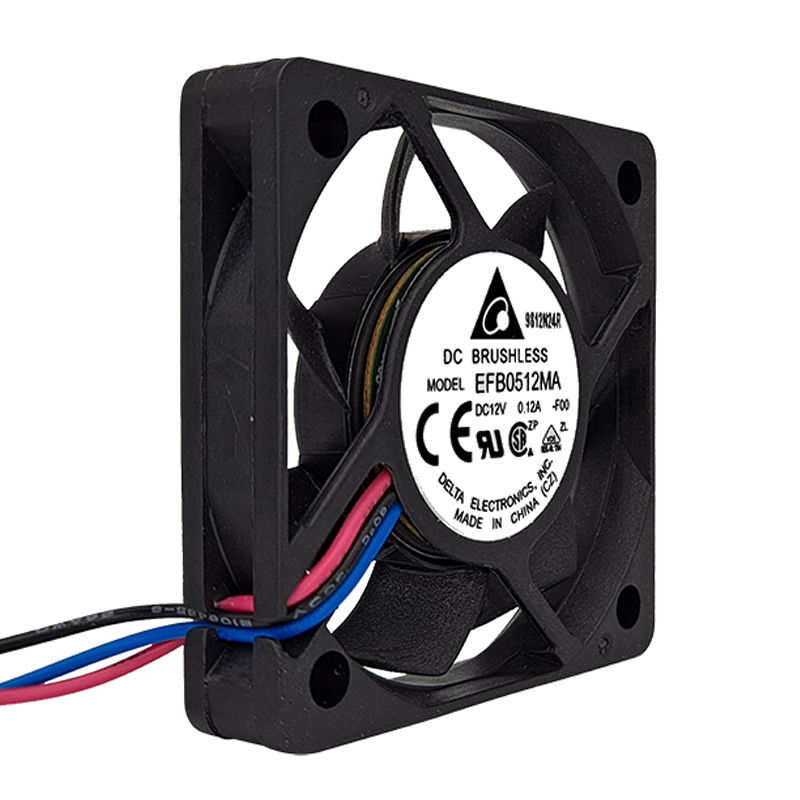

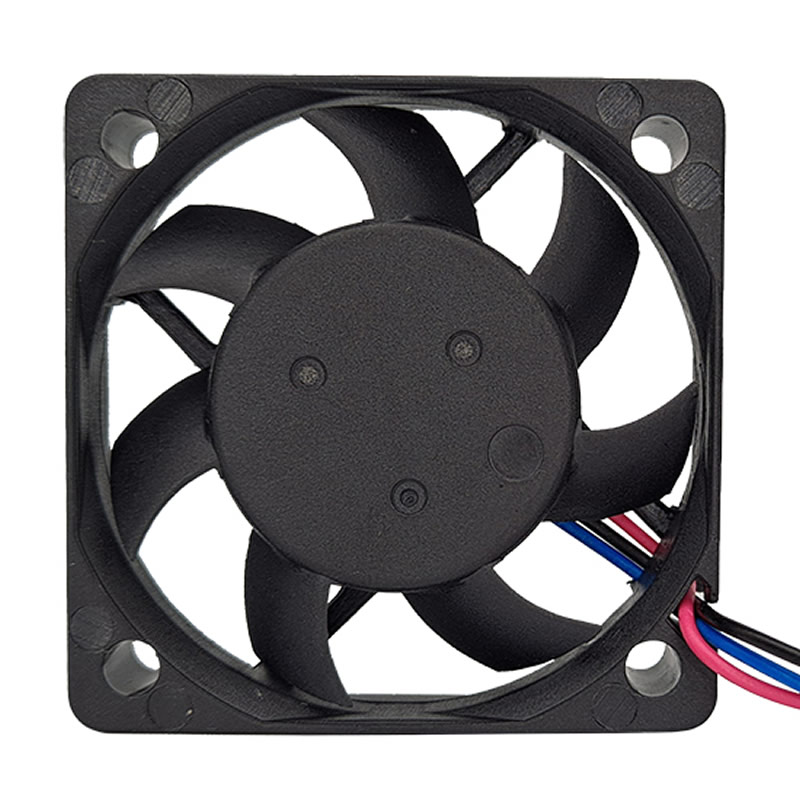

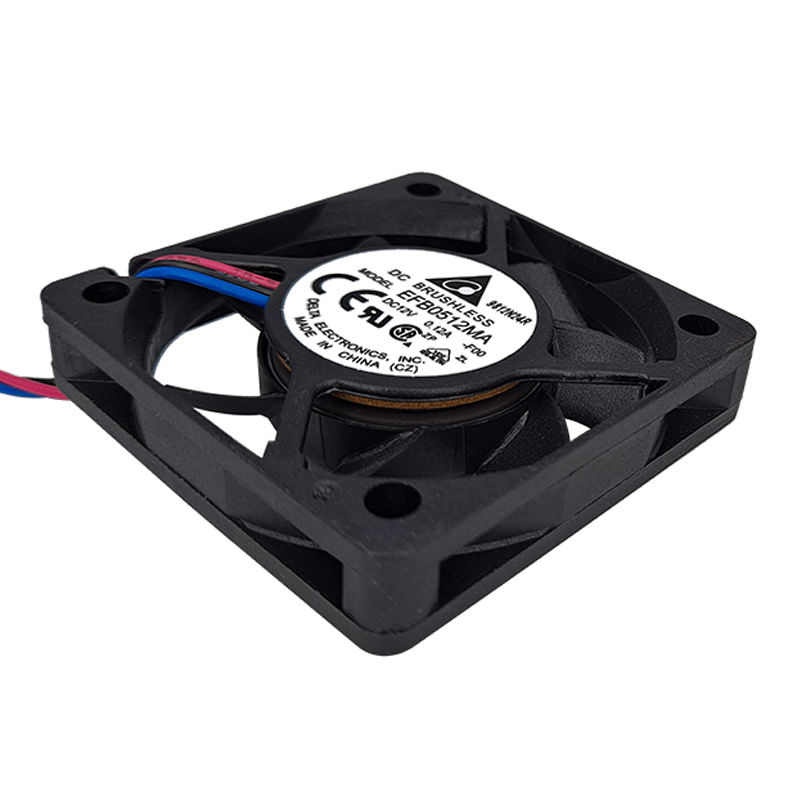

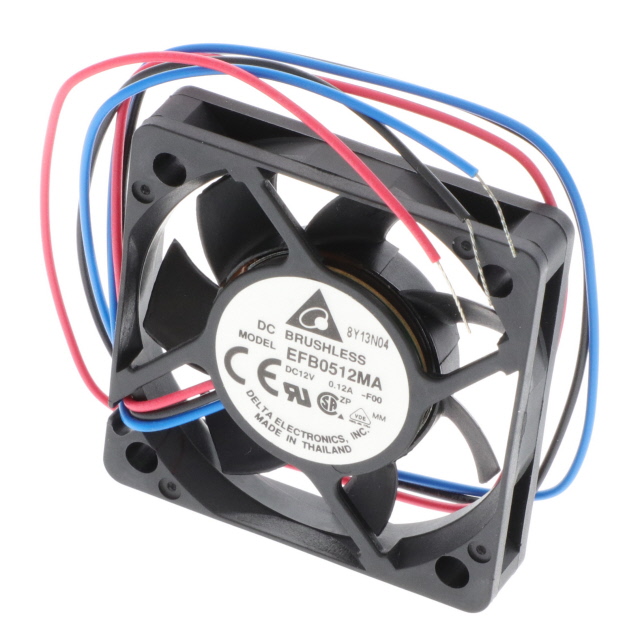

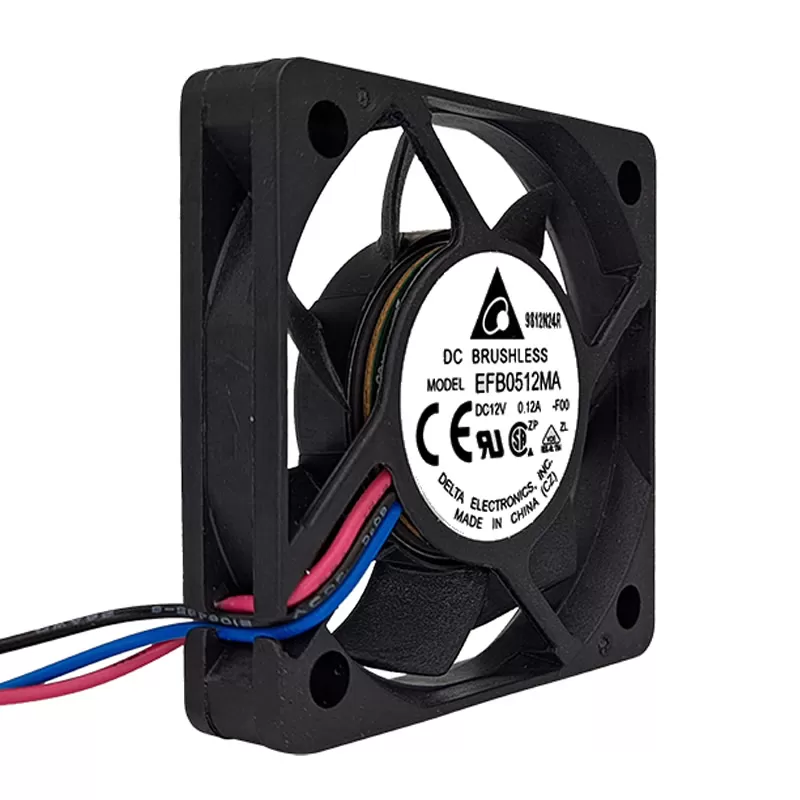

EFB0512MA-F00 Delta 50x50x10mm Ball 12VDC 9.21CFM(0.261m3/min) 0.113inchH2O(2.87mmH2O) 25.0dB(A) 0.96W 4500RPM 3wireleads fan
Specifications
| Part Number | EFB0512MA-F00 |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | EFB |
| Air Flow (m3) | 0.261 m3/min |
| Dimensions | 50x50x10 mm |
| Termination | 3 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 4500 RPM |
| Power Rating | 0.96 W |
| Noise Level | 25.0 dB(A) |
| Static Pressure | 0.113 inchH2O (2.87 mmH2O) |
| Air Flow | 9.21 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.057 lb (25.85 g) |
| Category | Axial |
| Current Rating | 0.08 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | EFB0512MA-F00-Delta.pdf |
