Description

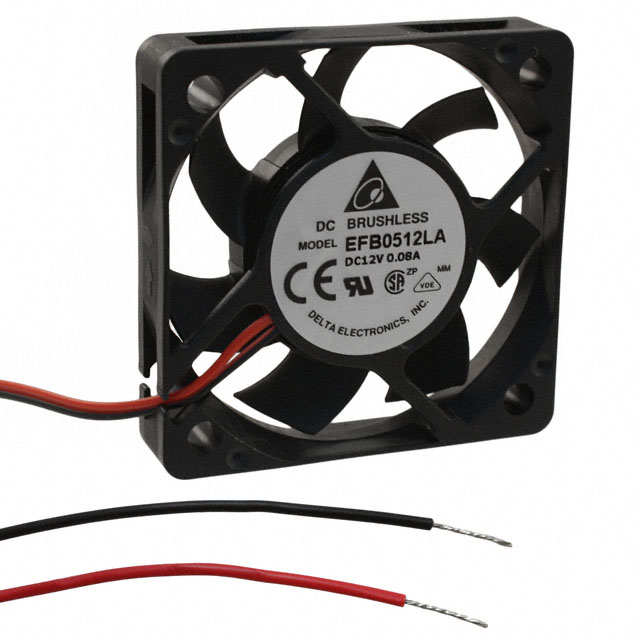

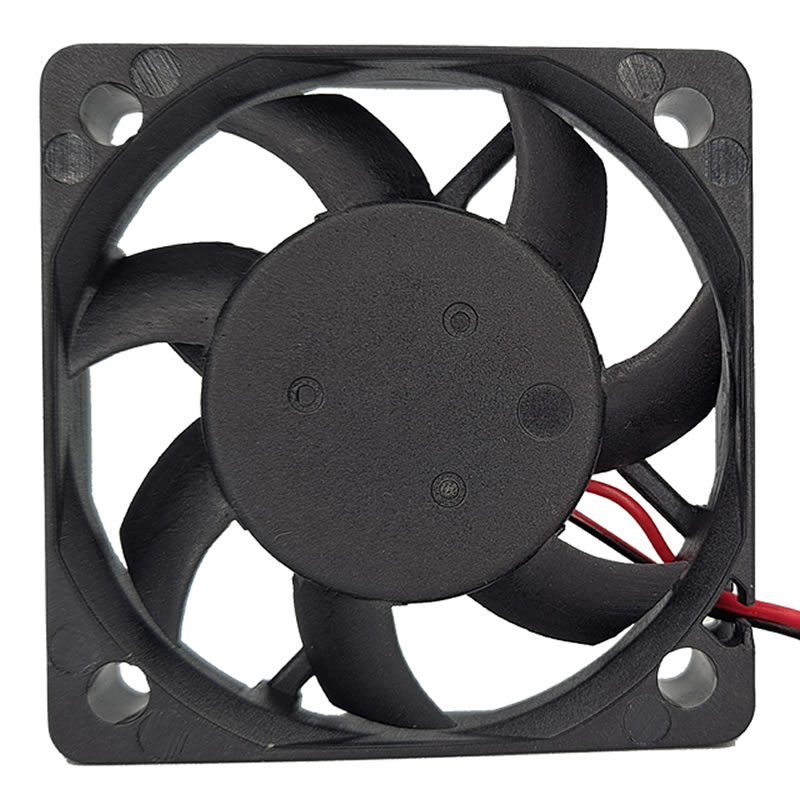

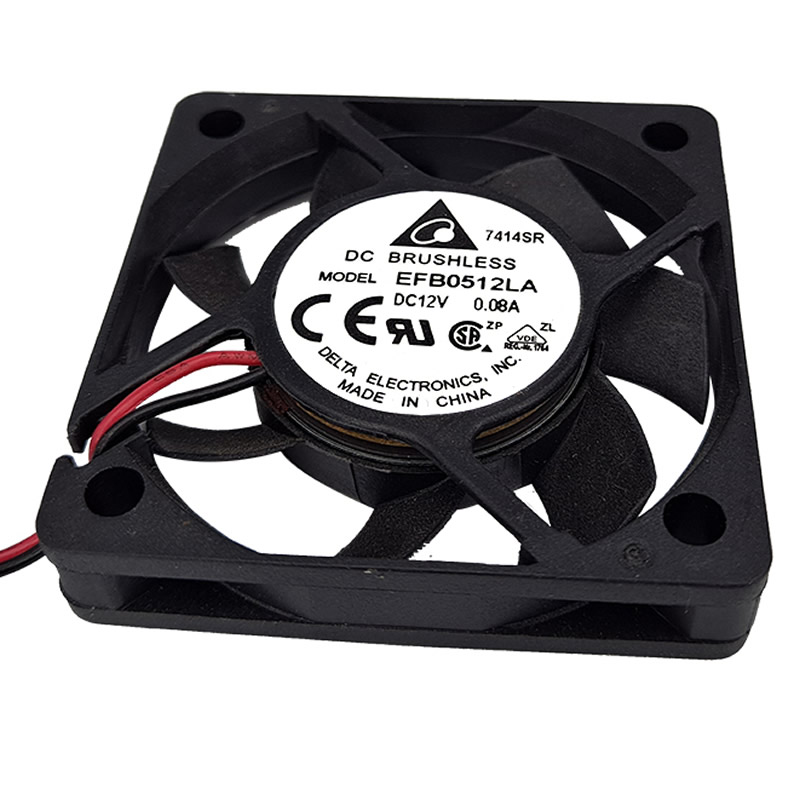

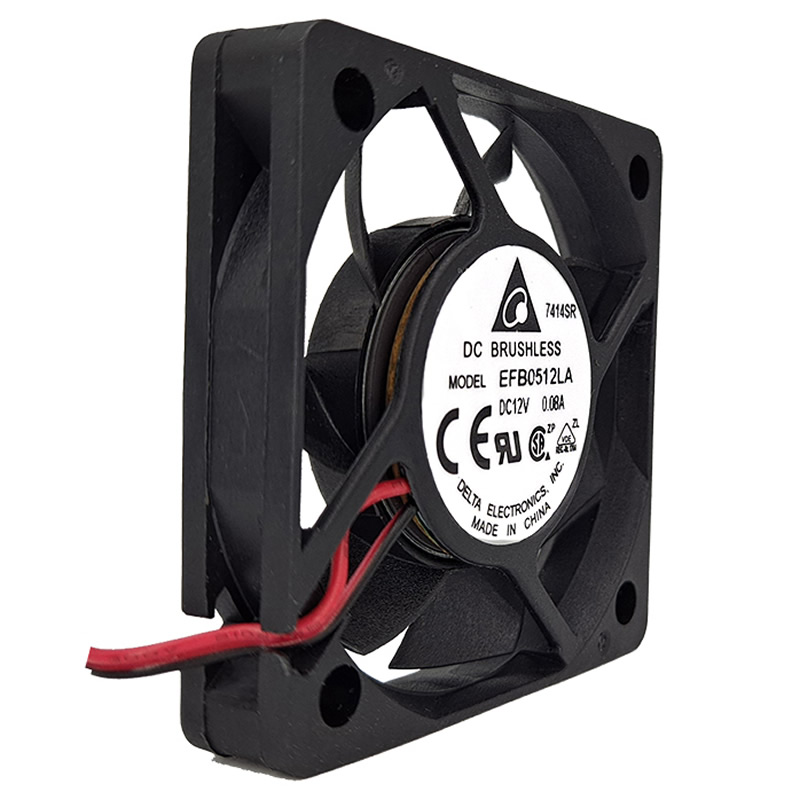

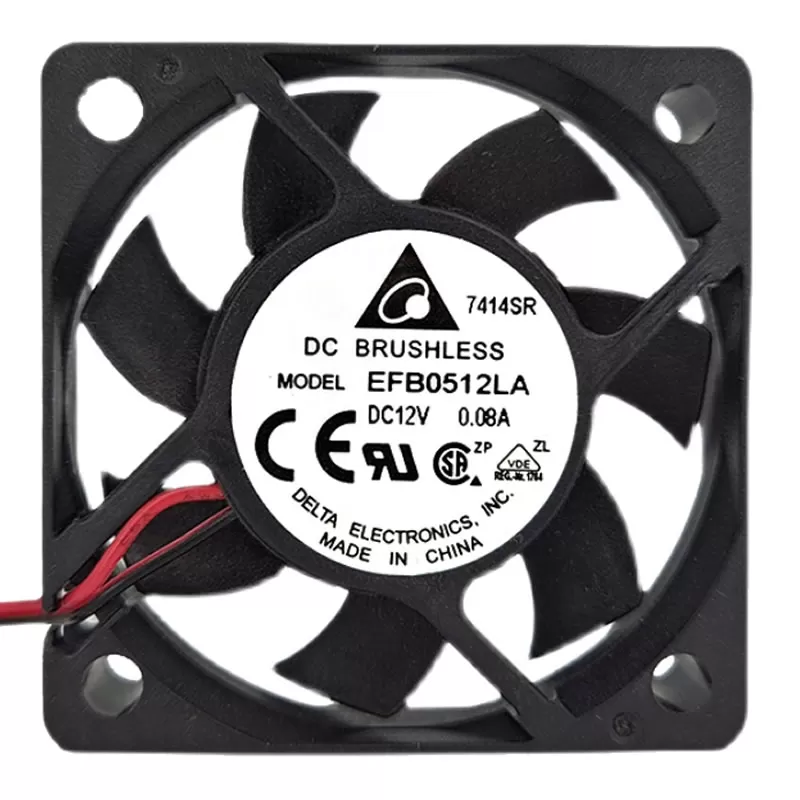

EFB0512LA Delta 50x50x10mm Ball 12VDC 7.50CFM(0.212m3/min) 0.068inchH2O(1.72mmH2O) 18.0dB(A) 0.60W 3500RPM 2wireleads fan
Specifications
| Part Number | EFB0512LA |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 0.60 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | EFB |
| Air Flow (m3) | 0.212 m3/min |
| Dimensions | 50x50x10 mm |
| Termination | 2 wire leads |
| Fan Speed | 3500 RPM |
| Fan Type | DC |
| Static Pressure | 0.068 inchH2O (1.72 mmH2O) |
| Noise Level | 18.0 dB(A) |
| Air Flow | 7.50 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.057 lb (25.85 g) |
| Category | Axial |
| Current Rating | 0.05 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | EFB0512LA-Delta.pdf |
