Description

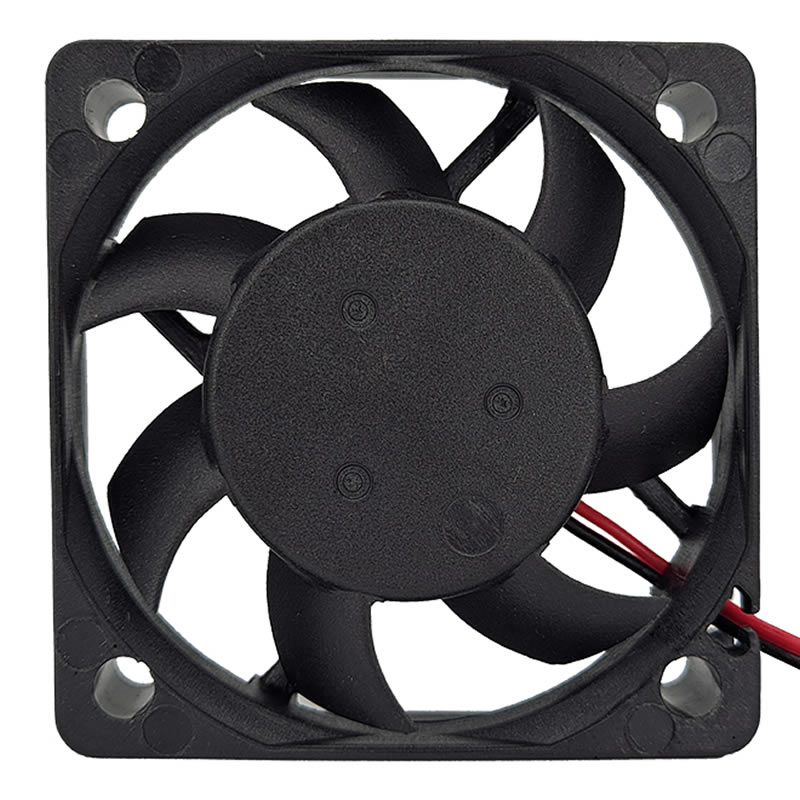

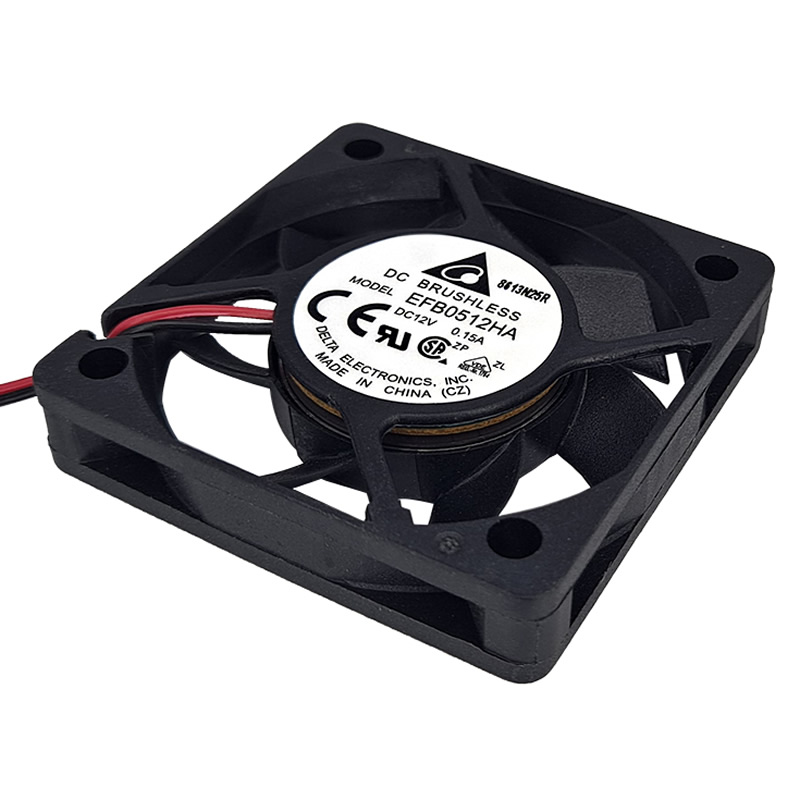

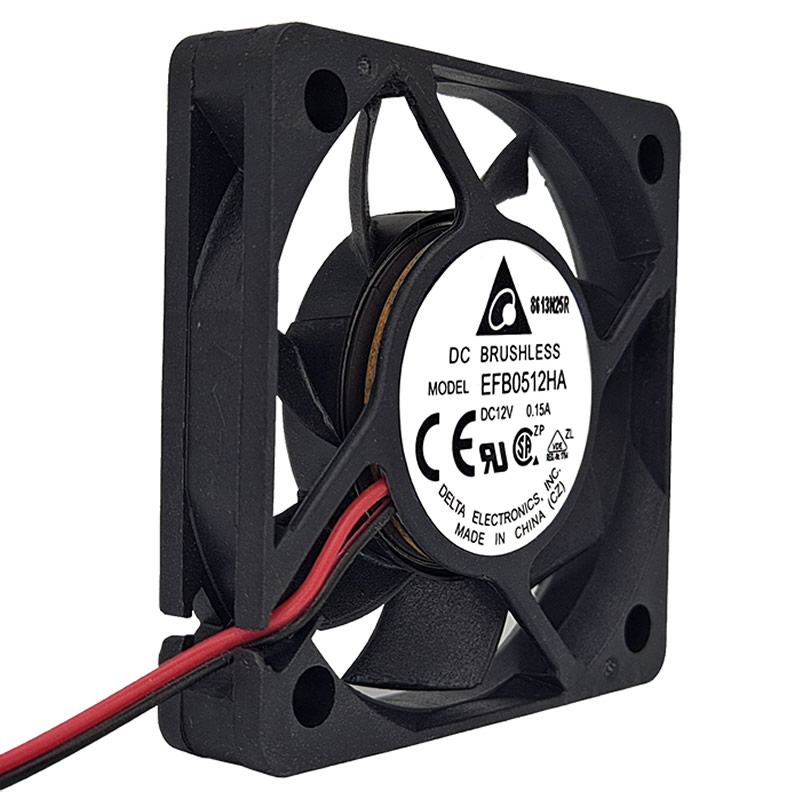

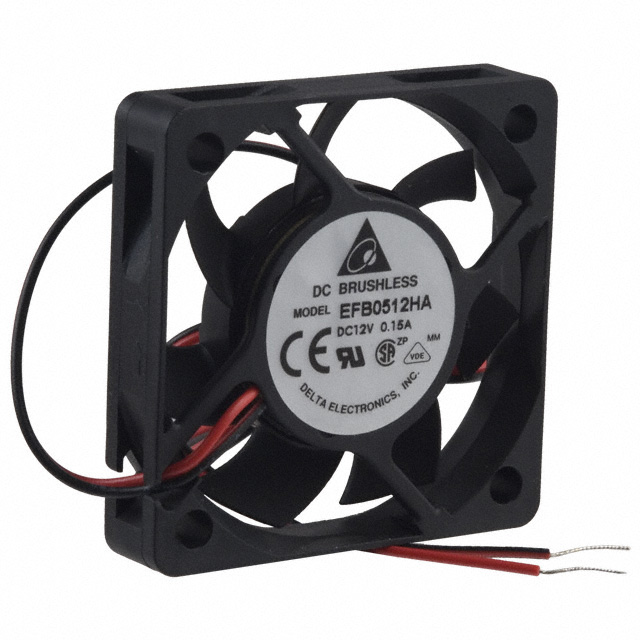

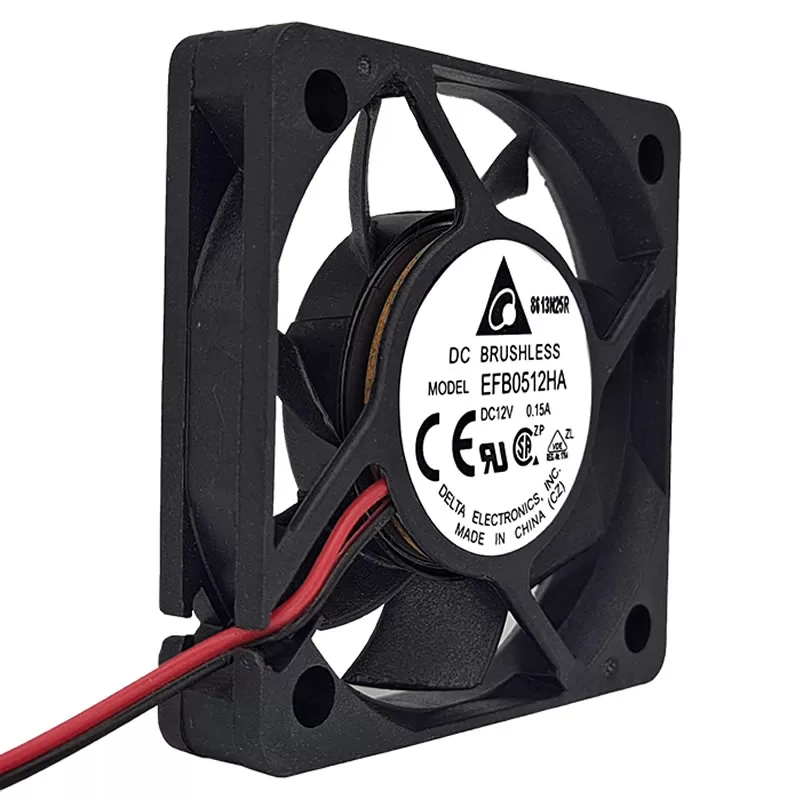

EFB0512HA Delta 50x50x10mm Ball 12VDC 11.40CFM(0.323m3/min) 0.167inchH2O(4.24mmH2O) 30.0dB(A) 1.20W 5500RPM 2wireleads fan
Delta EFB0512HA is a DC brushless axial flow fan with a nominal voltage of 12VDC (operating voltage 7.0-13.8VDC), maximum input current of 0.15A, power of 1.80W, and rotational speed of 5500RPM. It delivers a maximum air flow of 0.323m³/min (minimum 0.291m³/min) and maximum static pressure of 4.24mmH₂O (minimum 3.43mmH₂O), with an average acoustic noise of 30.0dB(A) (maximum 35.0dB(A)). Measuring 50.0×40.0×10.0mm and weighing 25g, the frame and impeller are made of UL 94V-0 flame-retardant plastic, equipped with double ball bearings and rotating clockwise when viewed from the nameplate side. It uses UL 2468-F AWG#28 leads (red for positive, black for negative), operates at -10°C to 70°C, stores at -40°C to 75°C, and has a working humidity of 5%-90%RH. With locked rotor protection (preventing fire within 96 hours of lock-up) and reverse polarity protection, it has a lifespan of 70,000 hours at 40°C and 15%-65%RH, suitable for low-power cooling in small electronic devices.
Specifications
| Part Number | EFB0512HA |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 50x50x10 mm |
| Power Rating | 1.20 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | EFB |
| Air Flow (m3) | 0.323 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 5500 RPM |
| Fan Type | DC |
| Static Pressure | 0.167 inchH2O (4.24 mmH2O) |
| Noise Level | 30.0 dB(A) |
| Air Flow | 11.40 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.057 lb (25.85 g) |
| Category | Axial |
| Current Rating | 0.10 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | EFB0512HA-Delta.pdf |
