Description

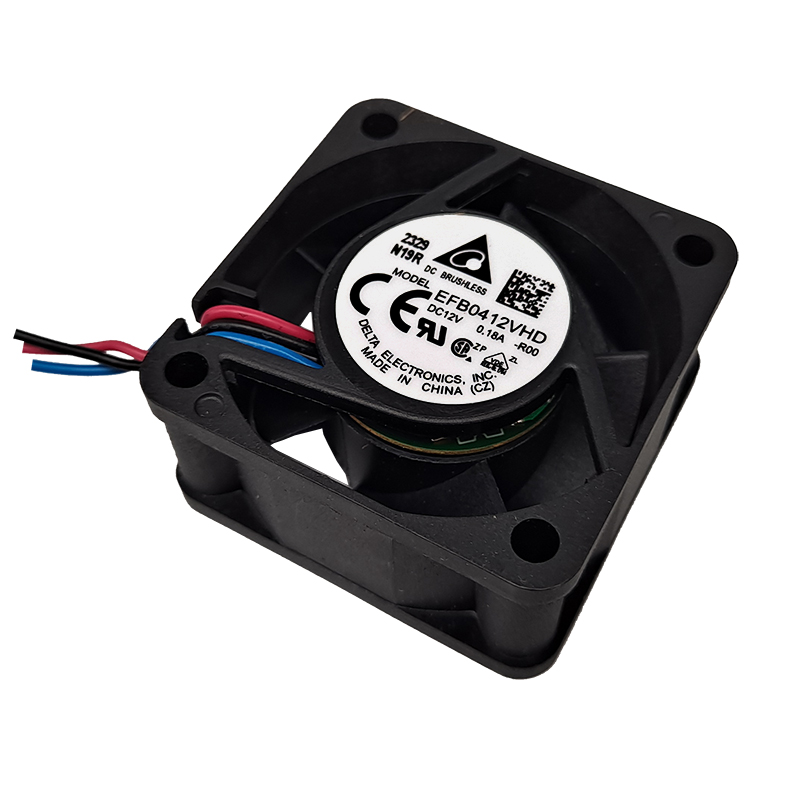

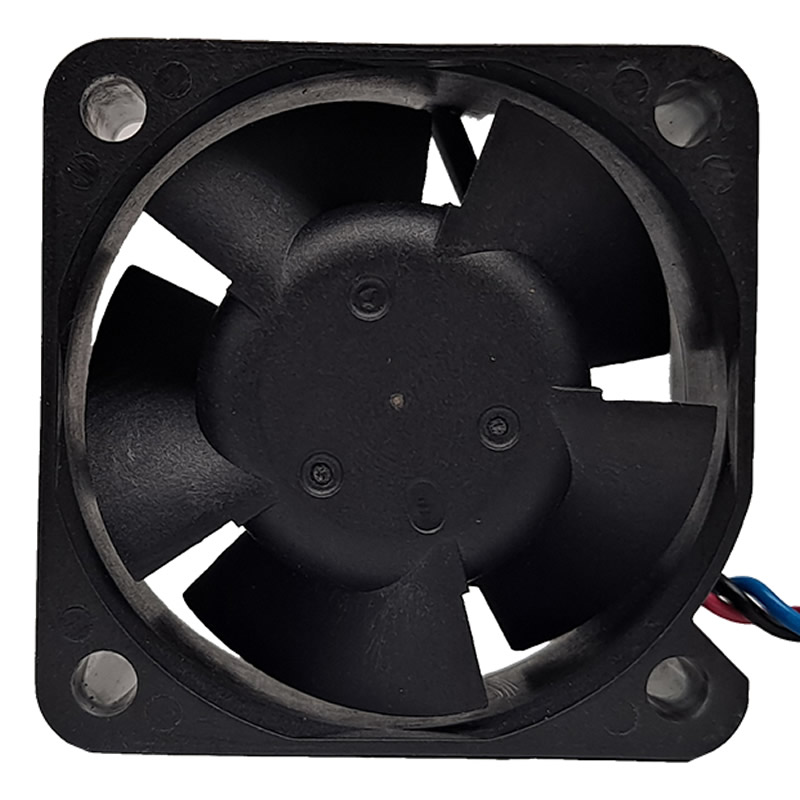

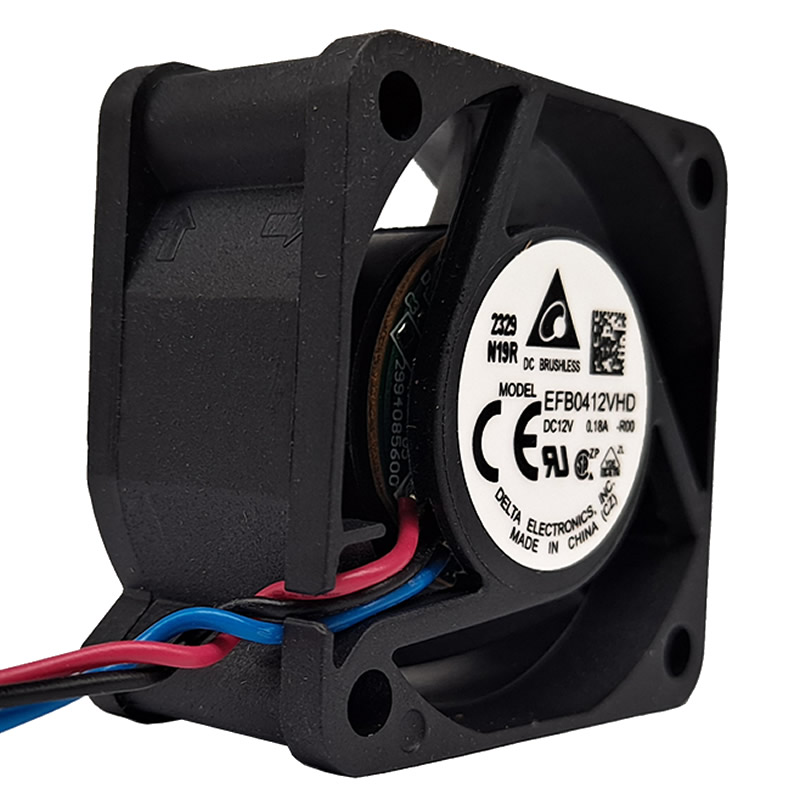

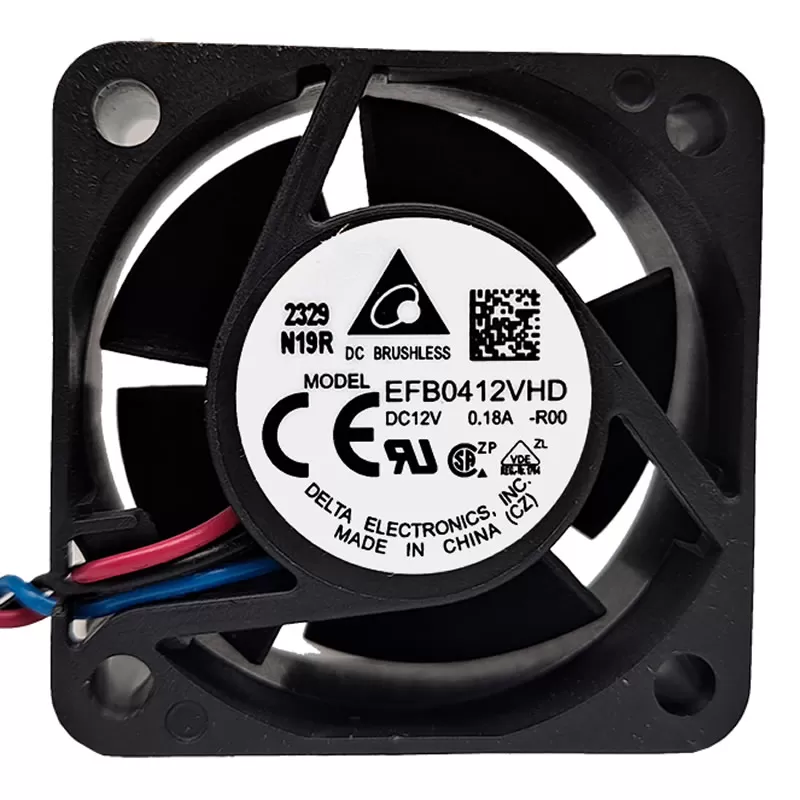

EFB0412VHD-R00 Delta 40x40x20mm Ball 12VDC 10.10CFM(0.286m3/min) 0.416inchH2O(10.57mmH2O) 32.5dB(A) 1.44W 9000RPM 3wire leads Locked Rotor Sensor fan
Specifications
| Part Number | EFB0412VHD-R00 |
|---|---|
| Category | Axial |
| Material Blade | Plastic |
| Material Frame | Plastic |
| Operating Voltage | 7 ~ 13.8 VDC |
| Current Rating | 0.12 A |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Fan Speed | 9000 RPM |
| Bearing Type | Ball Bearing |
| Voltage Rating | 12 VDC |
| Air Flow | 10.10 CFM |
| Static Pressure | 0.416 inchH2O (10.57 mmH2O) |
| Noise Level | 32.5 dB(A) |
| Power Rating | 1.44 W |
| Manufacturer | Delta Electronics |
| Fan Type | DC |
| Termination | 3 wire leads |
| Dimensions | 40x40x20 mm |
| Air Flow (m3) | 0.286 m3/min |
| Series | EFB |
| Features | Locked Rotor Sensor |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.073 lb (33.11 g) |
| Shipping Weight | 0.25 kg |
