Description

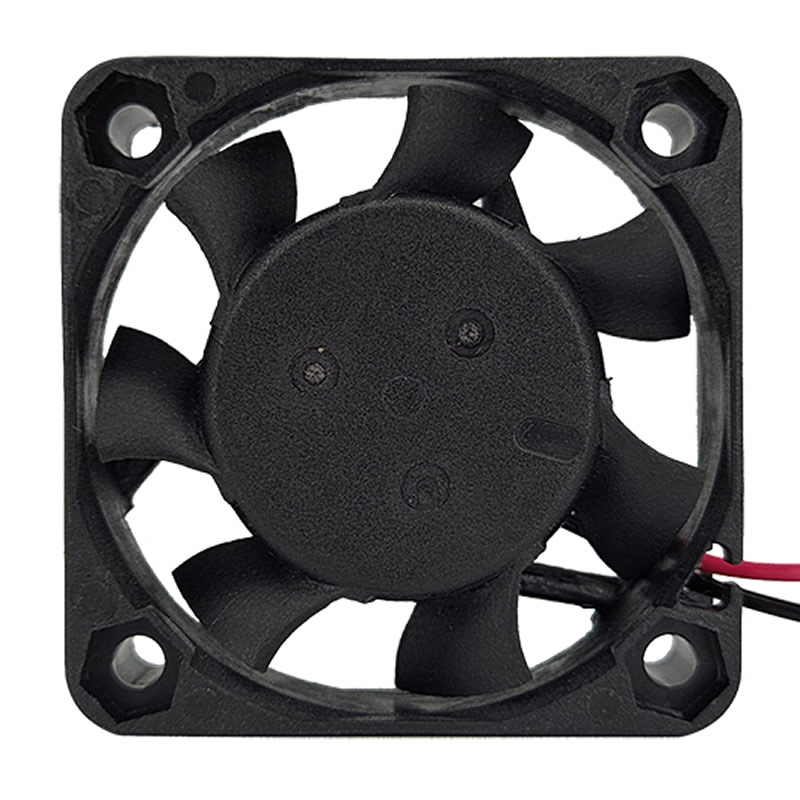

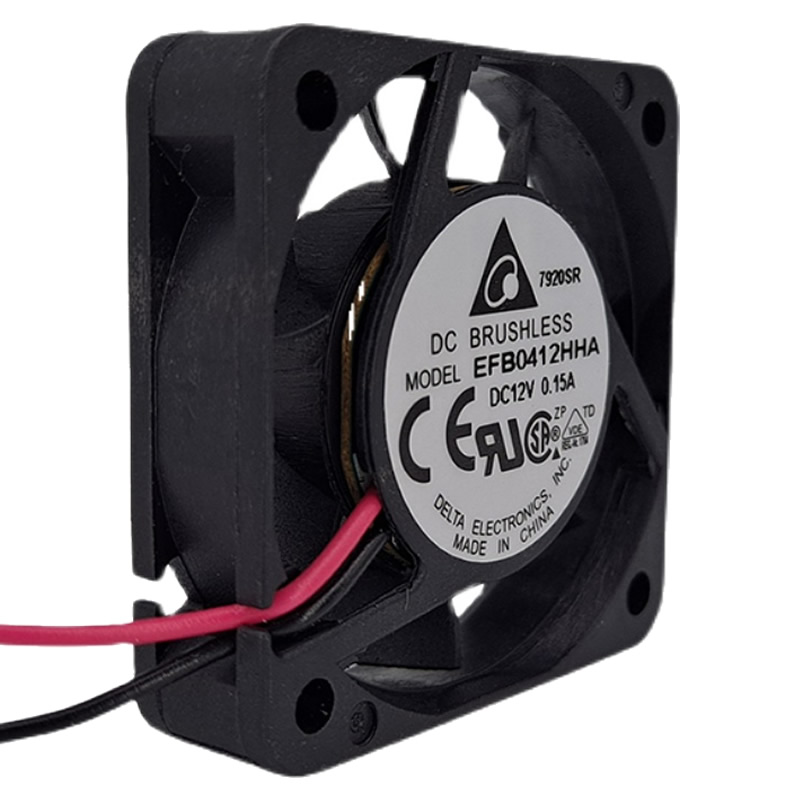

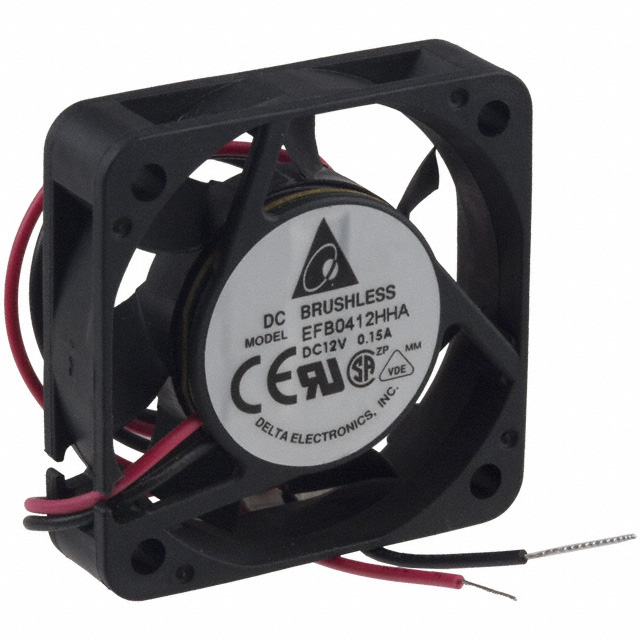

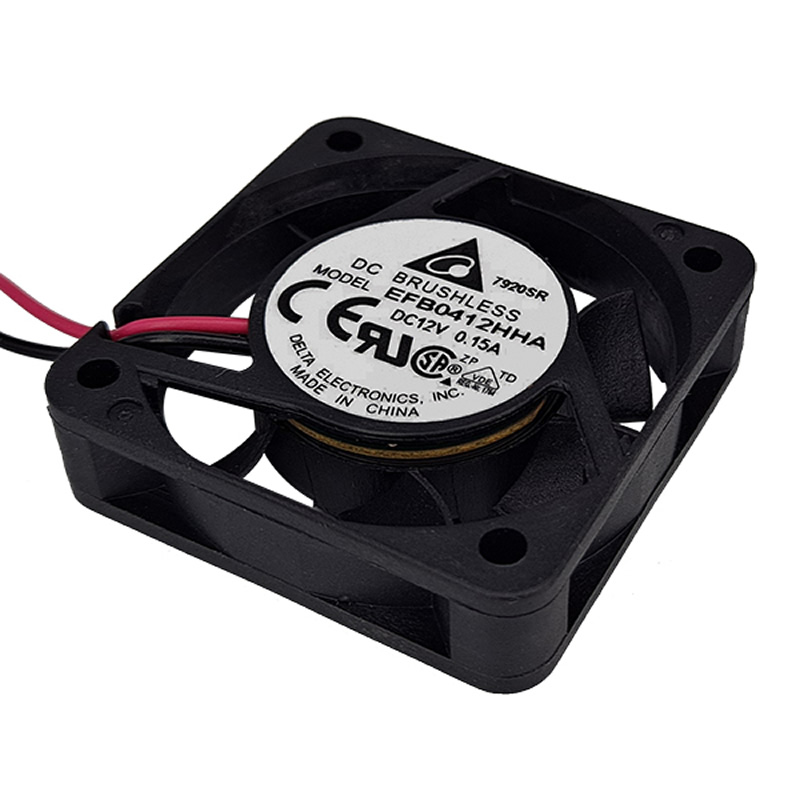

EFB0412HHA Delta 12VDC 40x40x10mm 8.1CFM 0.174inH2O(43.3Pa) Ball 33dB(A) 1.2W 7000RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | EFB0412HHA |
|---|---|
| Manufacturer | Delta Electronics |
| Series | EFB |
| Voltage Rating | 12 VDC |
| Dimensions | 40x40x10 mm |
| Air Flow | 8.1 CFM |
| Air Flow (m3) | 0.227 m³/min |
| Static Pressure | 0.174 in H2O (43.3 Pa) |
| Bearing Type | Ball Bearing |
| Fan Type | DC |
| Features | Locked Rotor Protection |
| Noise Level | 33 dB(A) |
| Power Rating | 1.2 W |
| Fan Speed | 7000 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.032 lb (14.51 g) |
| Shipping Weight | 0.125 kg |
| Product PDF | EFB0412HHA-Delta.pdf |
