Description

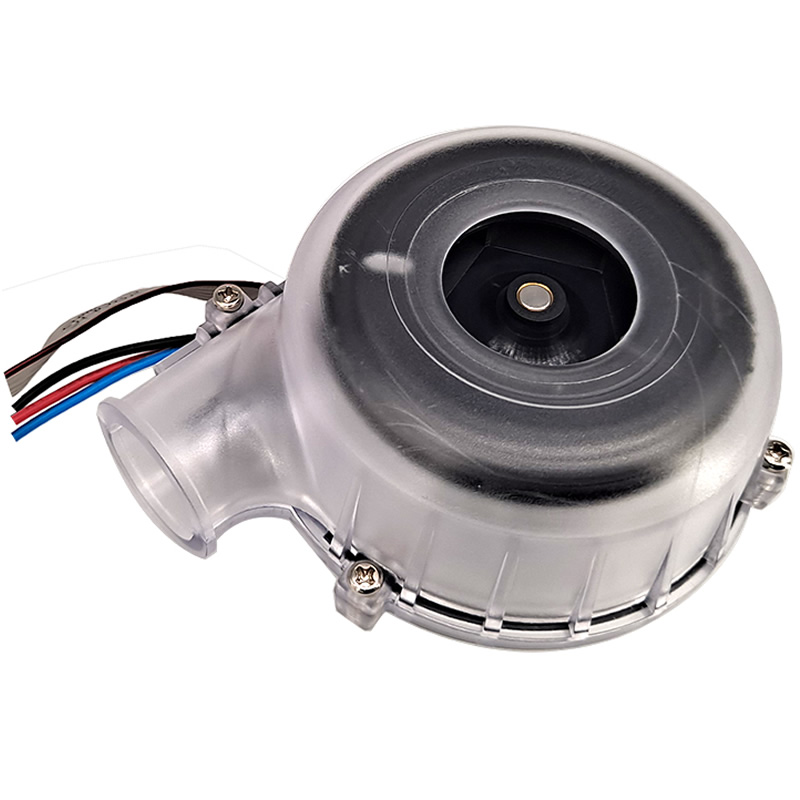

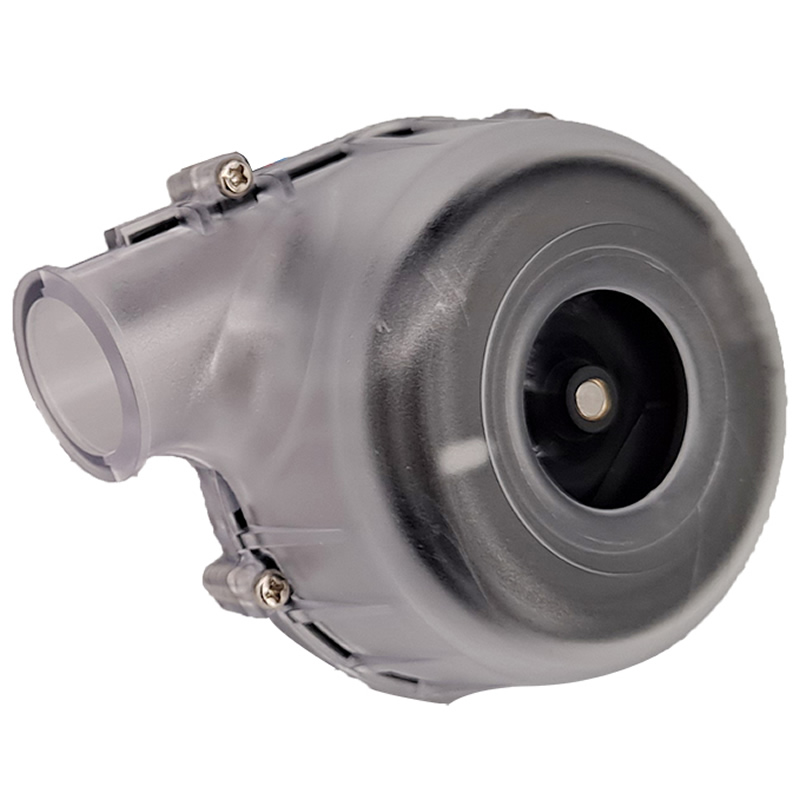

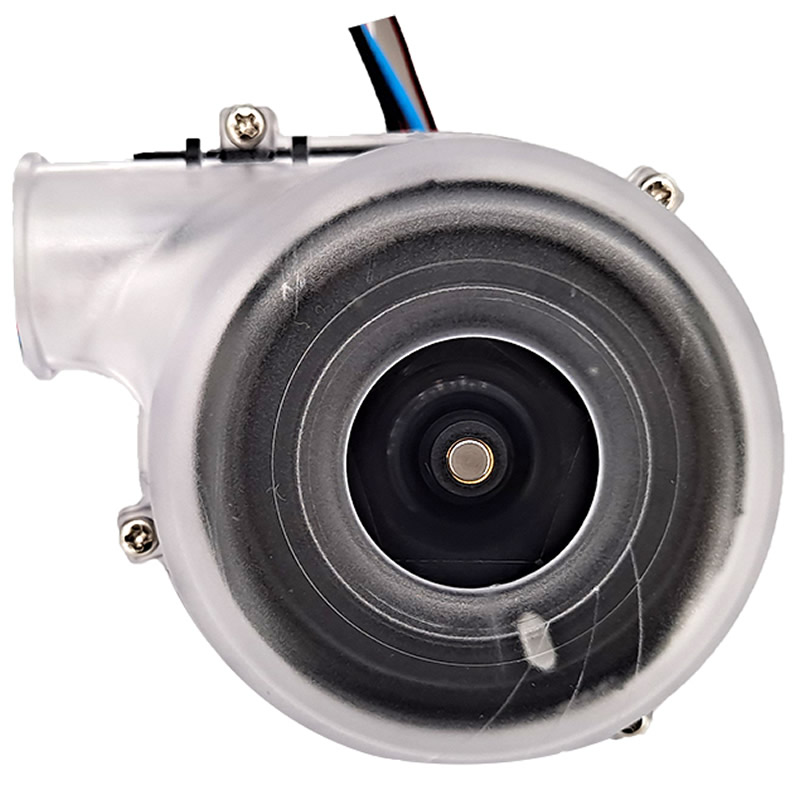

BFN0724SS-01 Delta 80.4x67x58mm Ball 24VDC 18.06CFM(511.407m3/min) 19.66inchH2O(499.36mmH2O) 38.0dB(A) 36.00W 31500RPM 3wireleads fan
Delta’s special cooling blower for respiratory anesthesia machine eddy current
Specifications
| Part Number | BFN0724SS-01 |
|---|---|
| Power Rating | 36.00 W |
| Approval Agency | CE |
| Operating Temperature | 14 ~ 104°F (-10 ~ 40°C) |
| IP Rating | IP20 |
| Series | BFN |
| Air Flow (m3) | 511.407 m3/min |
| Dimensions | 80.4x67x58 mm |
| Termination | 3 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 31500 RPM |
| Fan Type | DC |
| Static Pressure | 19.66 inchH2O (499.36 mmH2O) |
| Noise Level | 38.0 dB(A) |
| Air Flow | 18.06 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.508 lb (230.42 g) |
| Category | Blower |
| Current Rating | 1.50 A |
| Operating Voltage | 21.6 ~ 26.4 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 15000 Hrs @ 25⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | BFN0724SS-01-Delta.pdf |
