Description

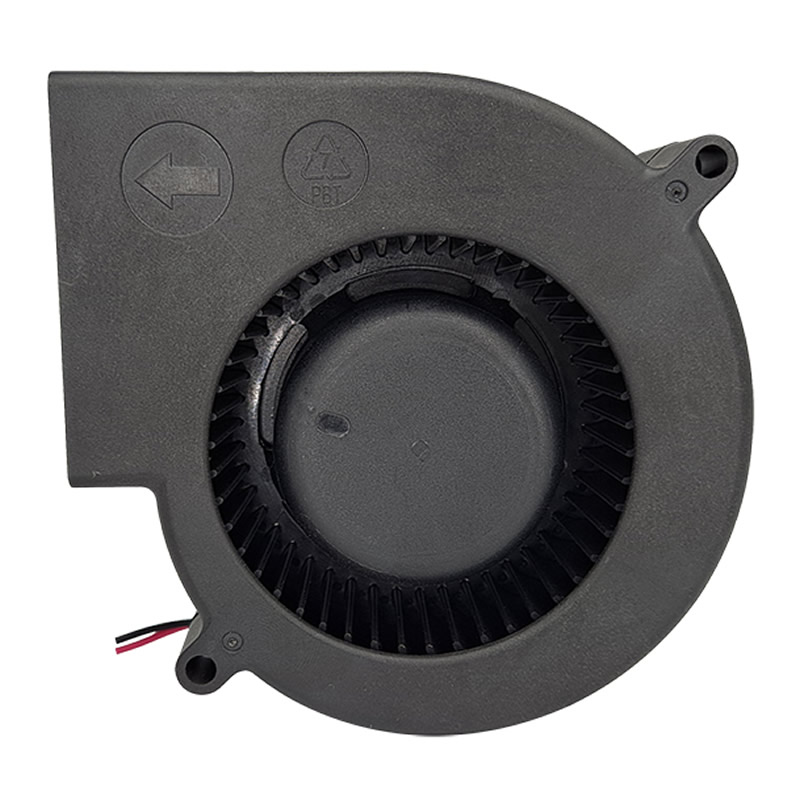

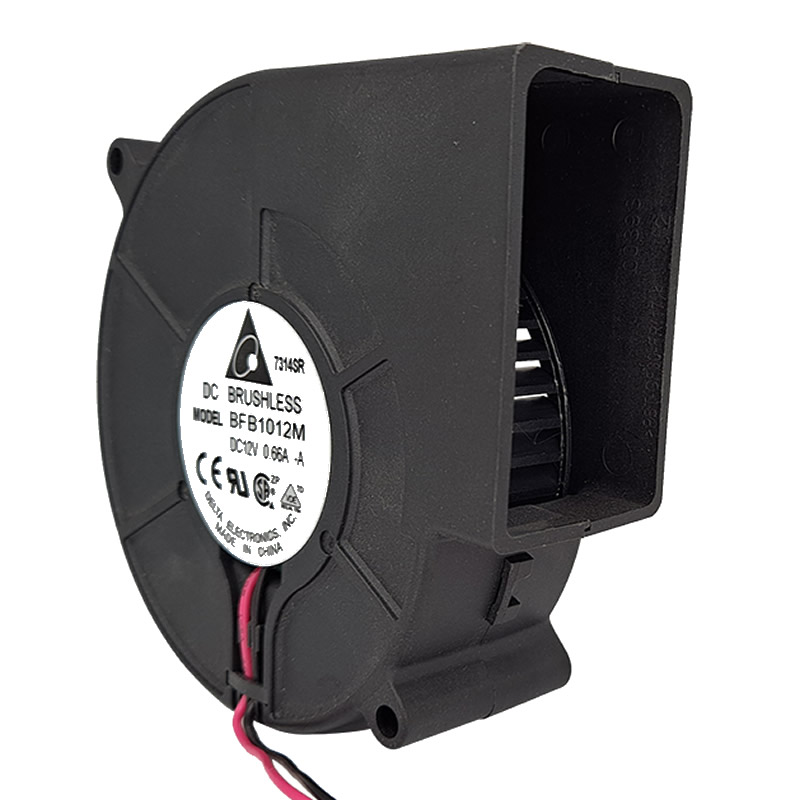

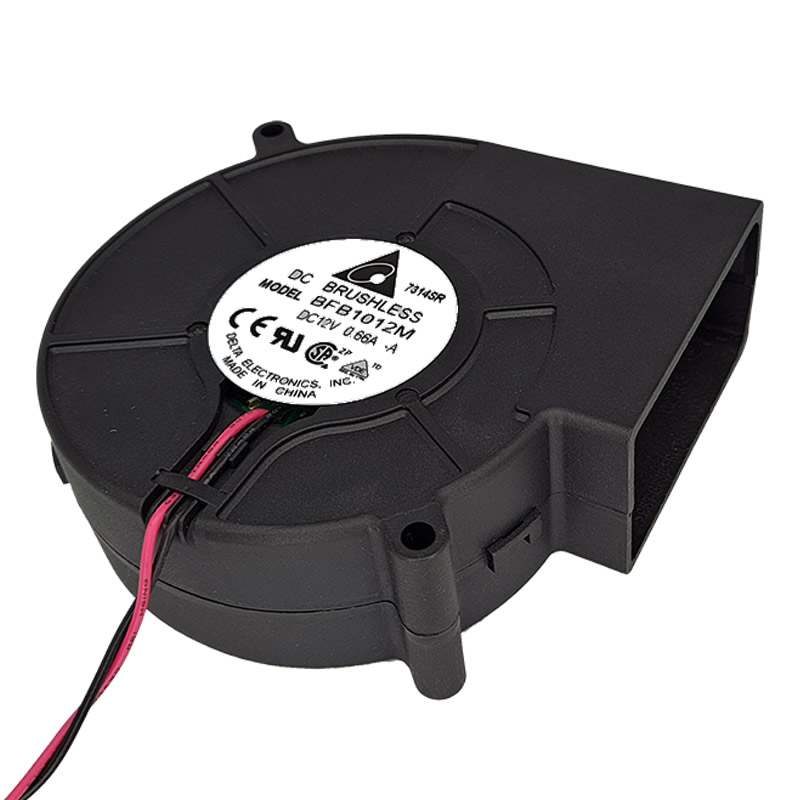

BFB1012M-A Delta 97.2×94.4x33mm Ball 12VDC 27.44CFM(0.777m3/min) 0.893inchH2O(22.68mmH2O) 52.5dB(A) 6.60W 3200RPM 2wireleads fan
Delta BFB1012M-A is a DC brushless blower with a nominal voltage of 12VDC (operating voltage 4.0-13.2VDC), maximum input current of 0.66A, power of 7.92W. It delivers a maximum air flow of 0.777m³/min (minimum 0.699m³/min) and maximum static pressure of 22.68mmH₂O (minimum 16.78mmH₂O), with an average acoustic noise of 52.5dB(A) (maximum 56.5dB(A)). Measuring approximately 50.0×39.0×33.0mm, the frame and impeller use UL 94V-0 flame-retardant plastic, double ball bearings, rotating clockwise from the nameplate side, with UL 1007-F AWG#24 leads (red+ black-). Operating at -10°C to 60°C, storing at -40°C to 75°C, it features locked rotor protection (preventing fire within 96h of lock-up) and reverse polarity protection, with a 50,000-hour lifespan at 40°C/15%-65%RH, suitable for high-airflow/static pressure scenarios like communication equipment and industrial cooling.
Specifications
| Part Number | BFB1012M-A |
|---|---|
| Manufacturer | Delta Electronics |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | BFB |
| Air Flow (m3) | 0.777 m3/min |
| Dimensions | 97.2×94.4×33 mm |
| Termination | 2 wire leads |
| Fan Speed | 3200 RPM |
| Power Rating | 6.60 W |
| Noise Level | 52.5 dB(A) |
| Static Pressure | 0.893 inchH2O (22.68 mmH2O) |
| Air Flow | 27.44 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.366 lb (166.01 g) |
| Category | Blower |
| Current Rating | 0.55 A |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 40⁰C |
| Shipping Weight | 0.5 kg |
| Product PDF | BFB1012M-A-Delta.pdf |
