Description

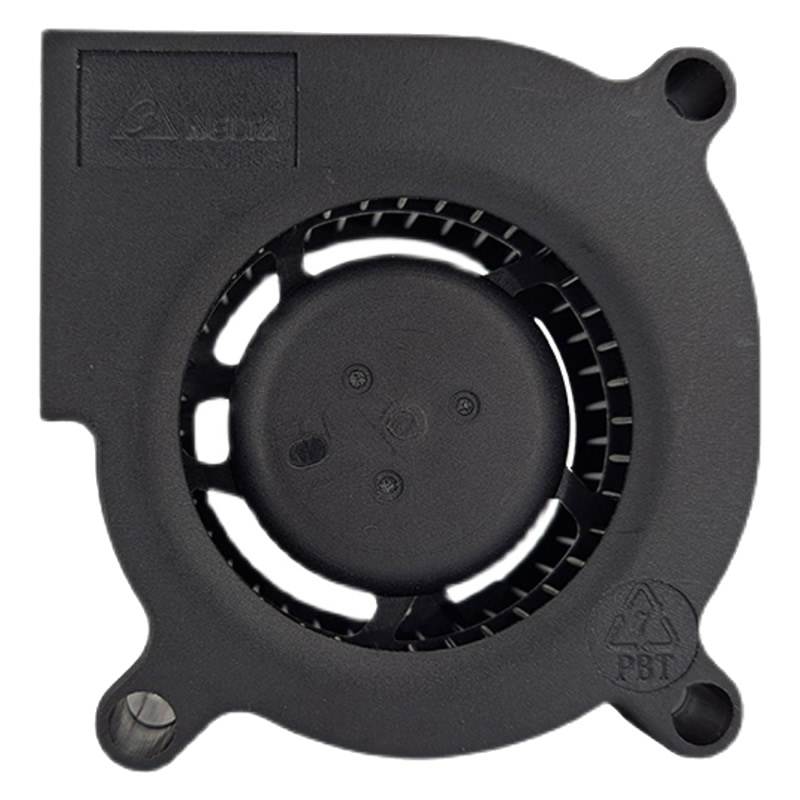

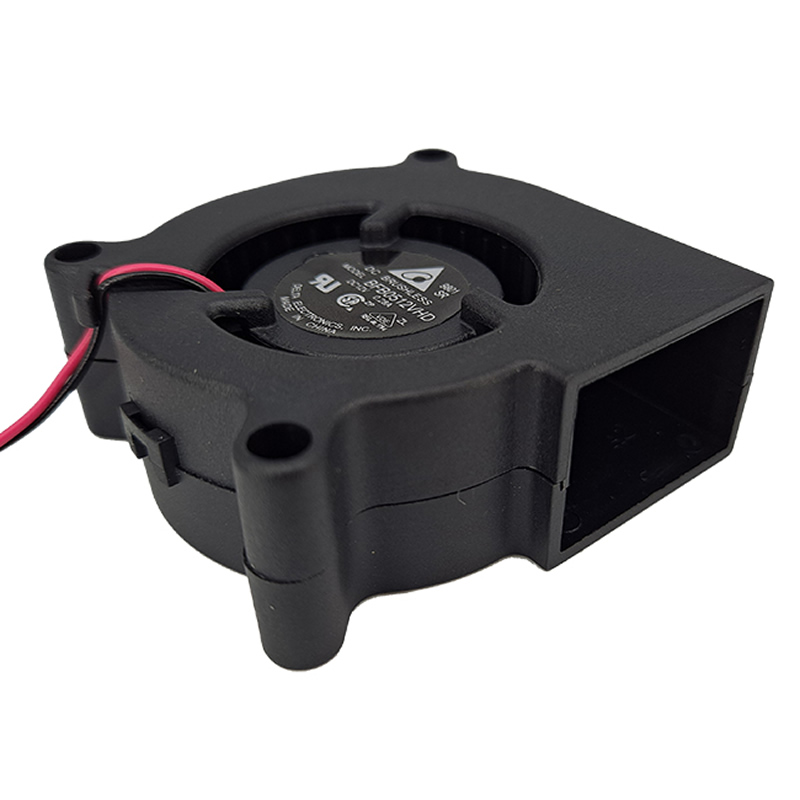

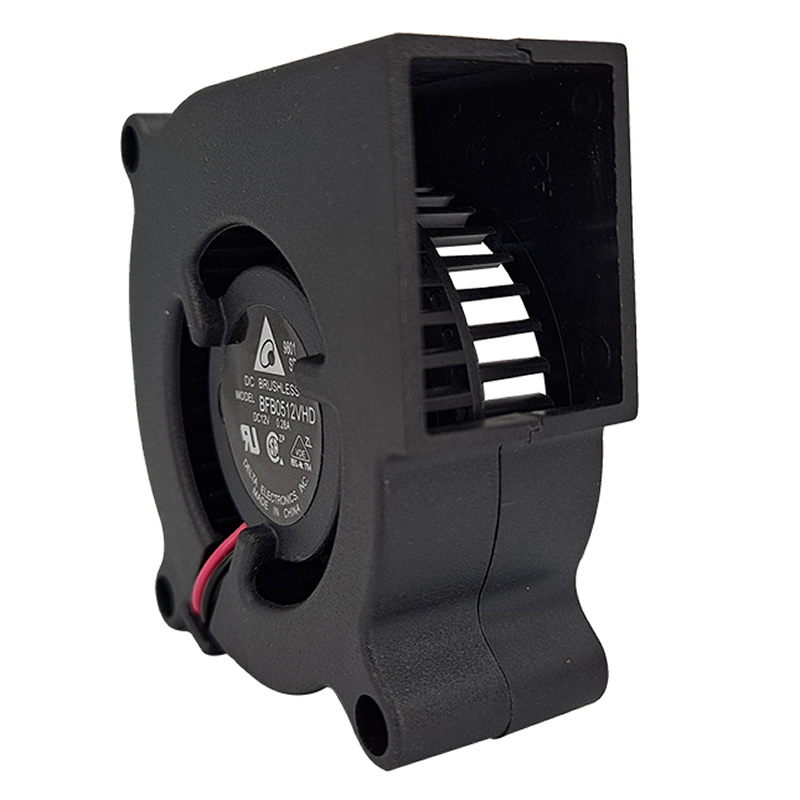

BFB0512VHD Delta 50x50x20mm Ball 12VDC 6.75CFM(0.191m3/min) 0.732inchH2O(18.60mmH2O) 38.5dB(A) 2.76W 5300RPM 2wireleads fan
Specifications
| Part Number | BFB0512VHD |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 2.76 W |
| Dimensions | 50x50x20 mm |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | BFB |
| Air Flow (m3) | 0.191 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 5300 RPM |
| Fan Type | DC |
| Static Pressure | 0.732 inchH2O (18.60 mmH2O) |
| Noise Level | 38.5 dB(A) |
| Air Flow | 6.75 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.057 lb (25.85 g) |
| Category | Blower |
| Current Rating | 0.23 A |
| Operating Voltage | 5 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | BFB0512VHD-Delta.pdf |
