Description

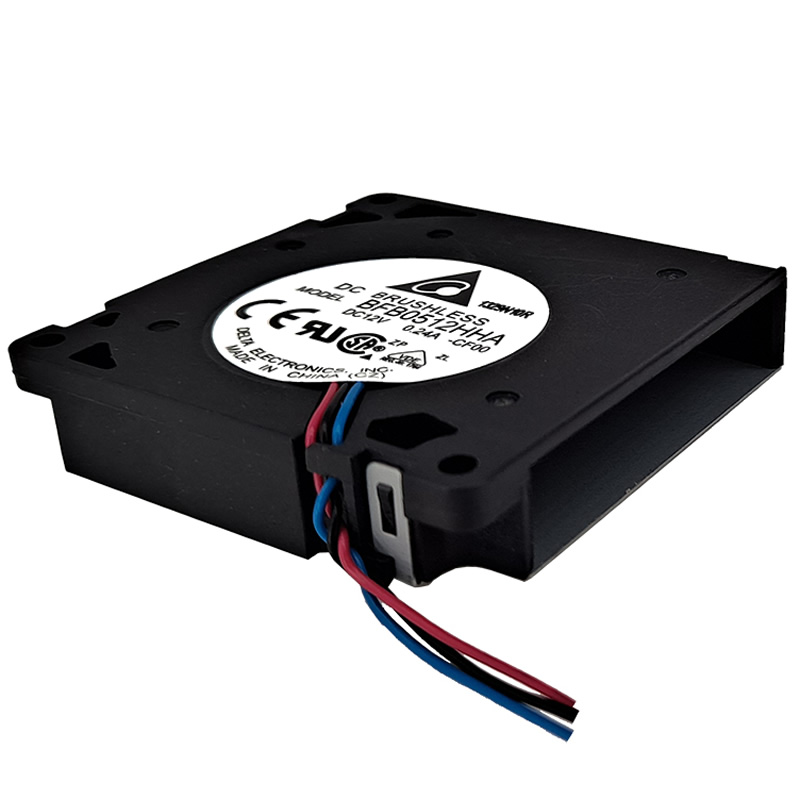

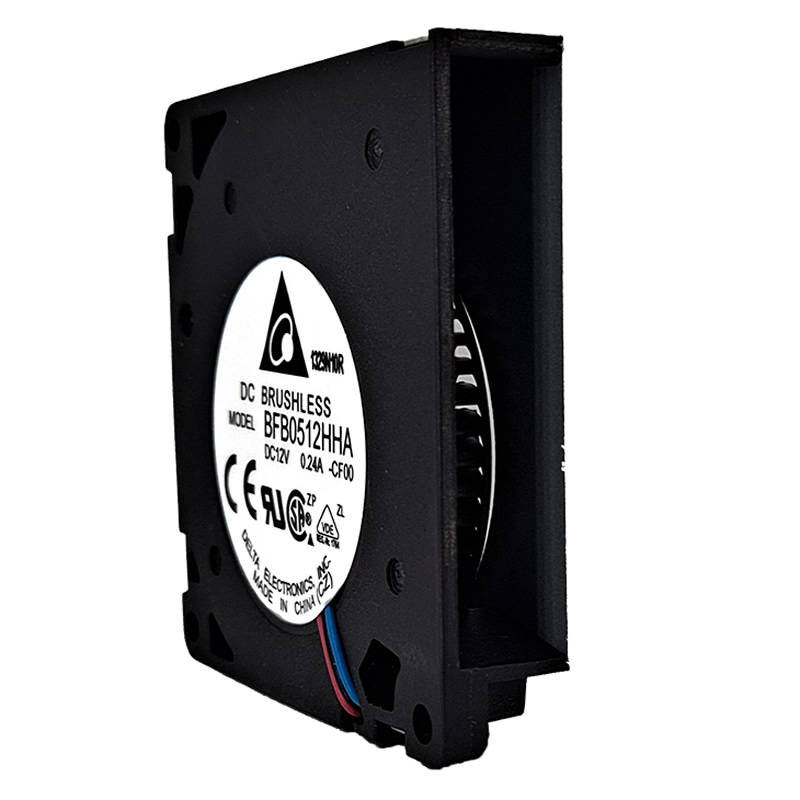

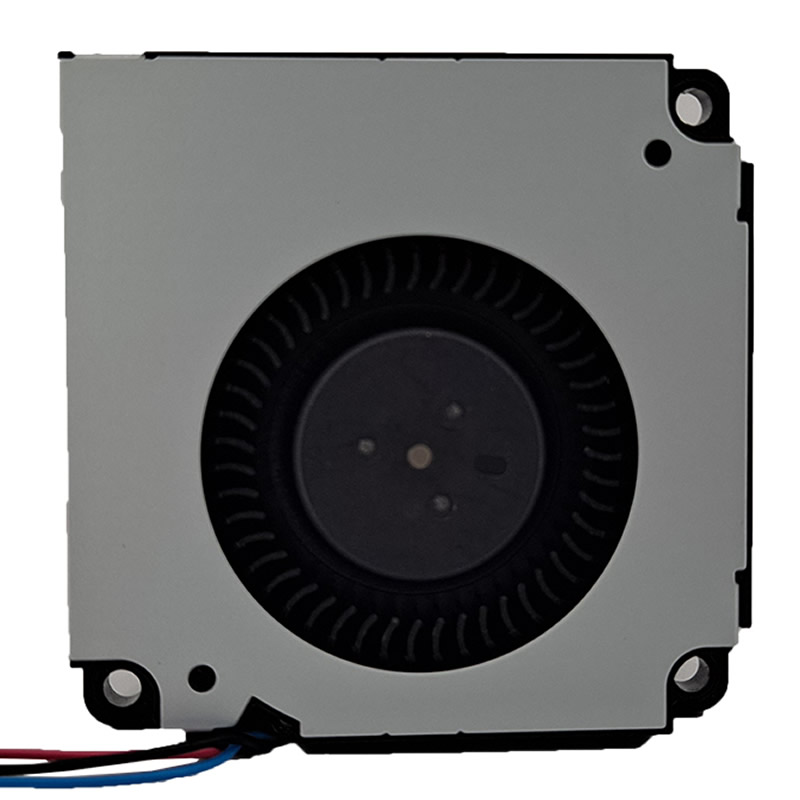

BFB0512HHA-CF00 Delta 50x50x10.3mm Ball 12VDC 0.24A 3.99CFM(0.113m3/min) 0.790inchH2O(20.09mmH2O) 37.5dB(A) 1.92W 5900RPM 3wireleads fan
Specifications
| Model | BFB0512HHA-CF00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 50x50x10.3 mm |
| Power Rating | 1.92 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | BFB |
| Air Flow (m3) | 0.113 m3/min |
| Termination | 3 wire leads |
| Fan Speed | 5900 RPM |
| Fan Type | DC |
| Static Pressure | 0.790 inchH2O (20.09 mmH2O) |
| Noise Level | 37.5 dB(A) |
| Air Flow | 3.99 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.05 lb (22.68 g) |
| Category | Blower |
| Current Rating | 0.24 A |
| Operating Voltage | 5 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 30000 Hrs @ 40°C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | BFB0512HHA-CF00-Delta.pdf |
