Description

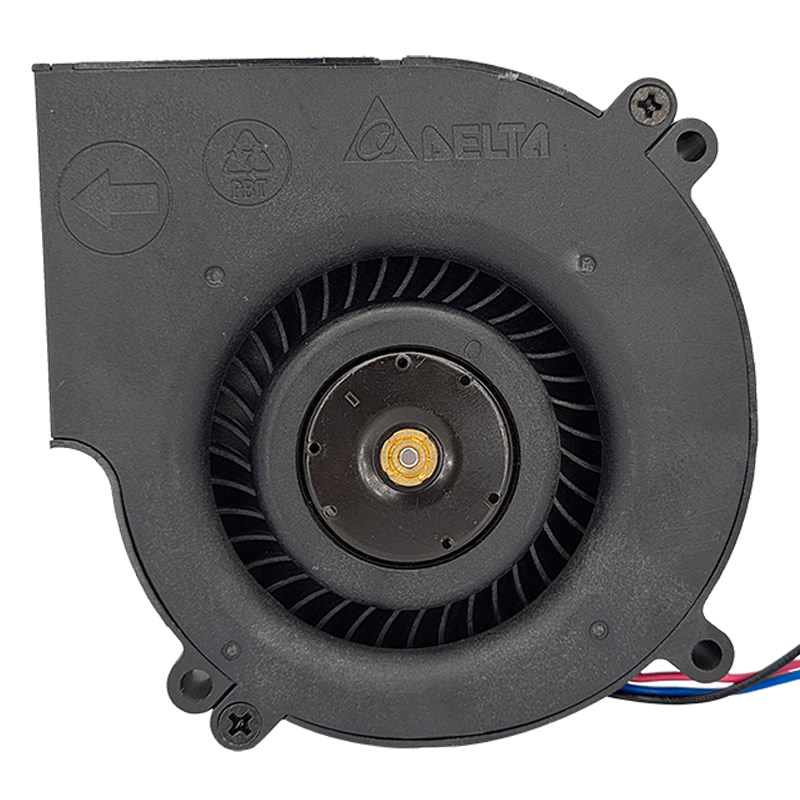

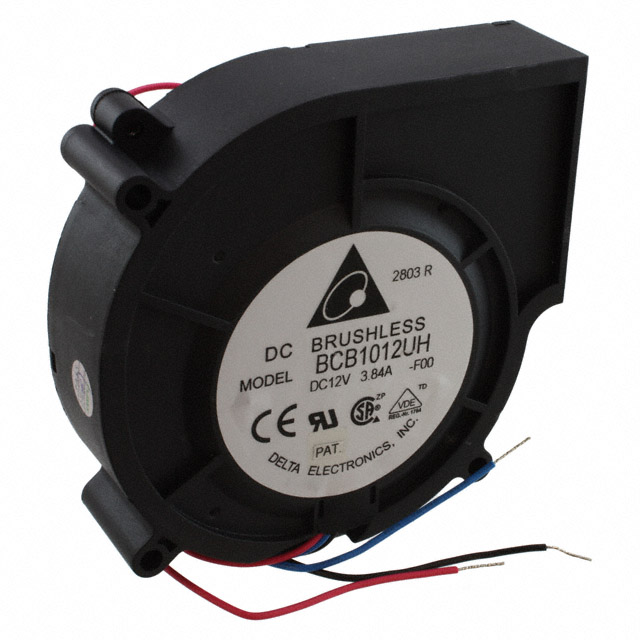

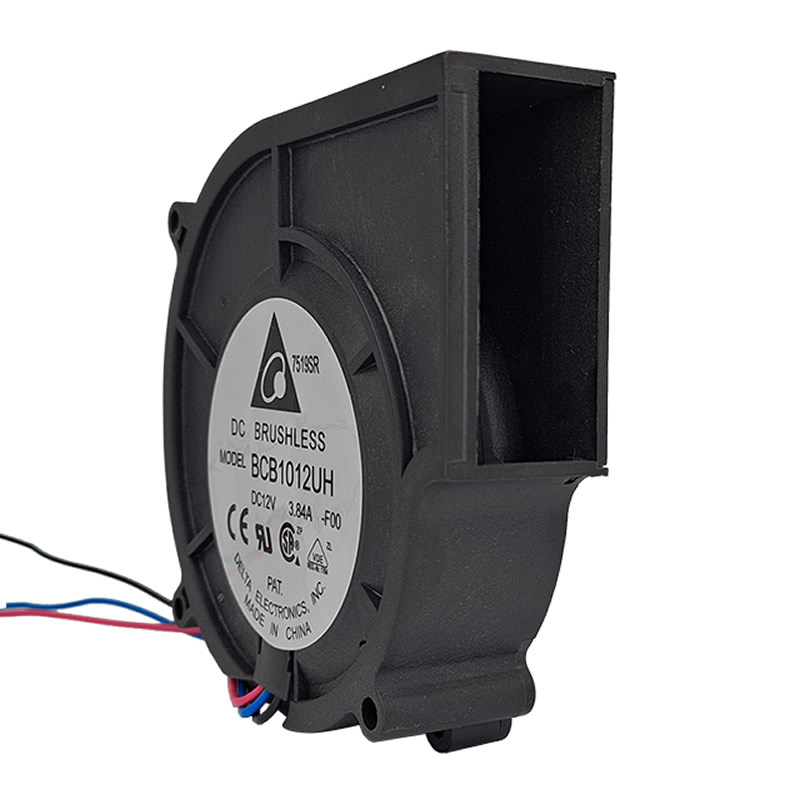

BCB1012UH-F00 Delta 97.2×94.4x25mm Ball 12VDC 35.31CFM(1.000m3/min) 4.053inchH2O(102.95mmH2O) 67.8dB(A) 38.40W 9300RPM 3wireleads fan
Specifications
| Model | BCB1012UH-F00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 97.2×94.4×25 mm |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection, Speed Sensor (Tach) |
| Series | BCB |
| Air Flow (m3) | 1.000 m3/min |
| Fan Speed | 9300 RPM |
| Power Rating | 38.40 W |
| Noise Level | 67.8 dB(A) |
| Static Pressure | 4.053 inchH2O (102.95 mmH2O) |
| Air Flow | 35.31 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.391 lb (177.35 g) |
| Category | Blower |
| Current Rating | 3.20 A |
| Operating Voltage | 6 ~ 13.2 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 40⁰C |
| Termination | 3 wire leads |
| Shipping Weight | 0.25 kg |
| Product PDF | BCB1012UH-F00-Delta.pdf |
