Description

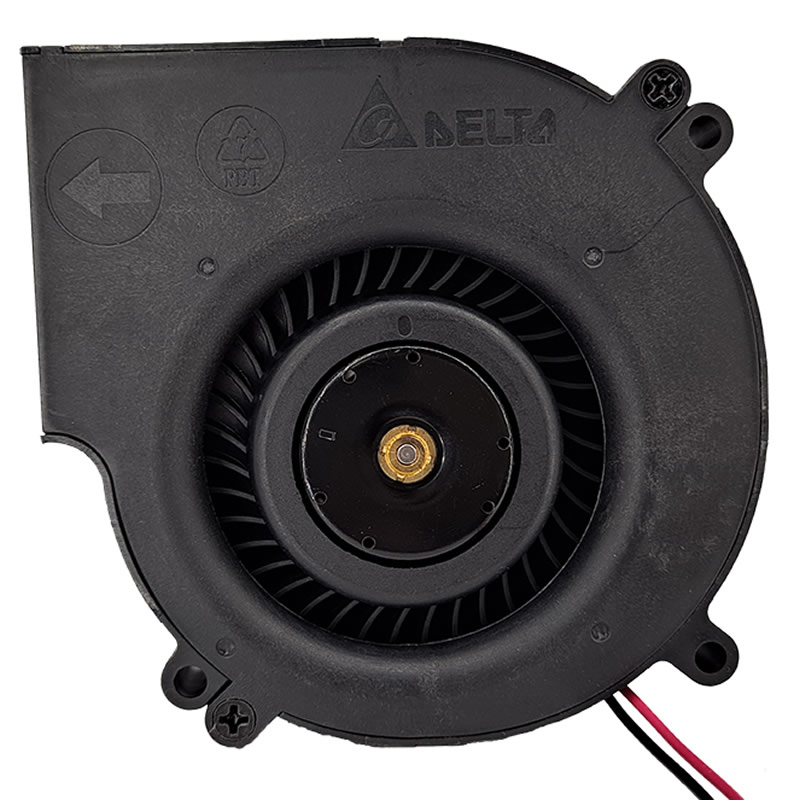

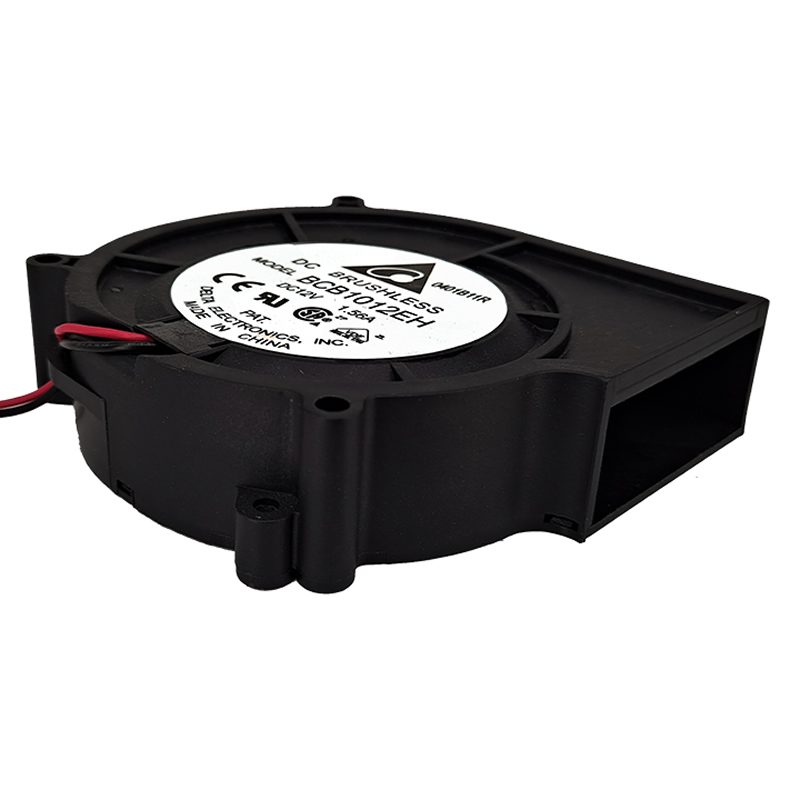

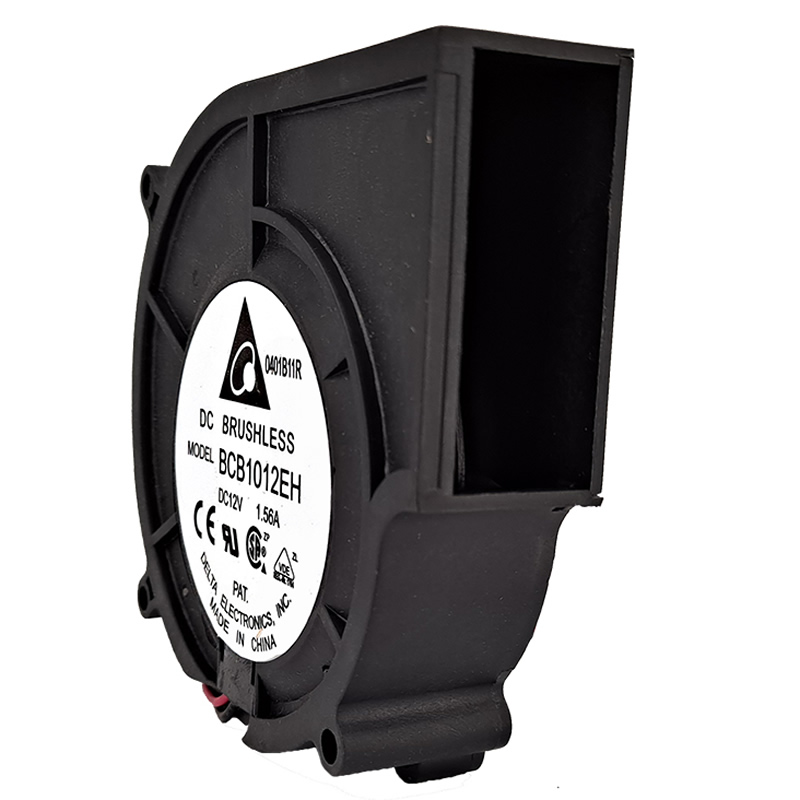

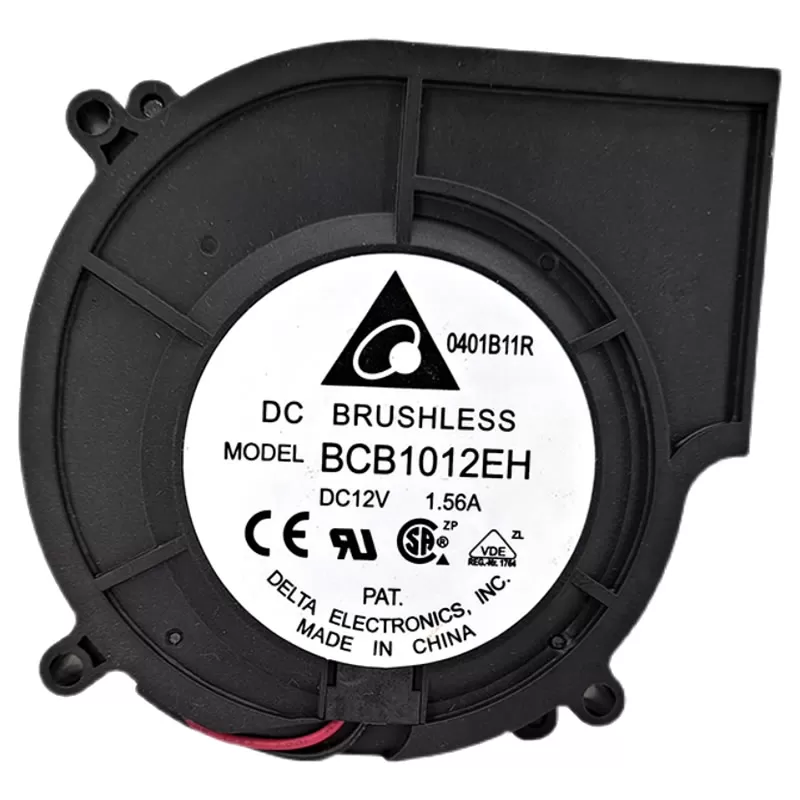

BCB1012EH Delta 97.2×94.4x25mm Ball 12VDC 25.78CFM(0.730m3/min) 2.038inchH2O(51.77mmH2O) 63.9dB(A) 15.60W 6700RPM 2wireleads fan
Specifications
| Part Number | BCB1012EH |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | BCB |
| Air Flow (m3) | 0.730 m3/min |
| Dimensions | 97.2×94.4×25 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 6700 RPM |
| Power Rating | 15.60 W |
| Noise Level | 63.9 dB(A) |
| Static Pressure | 2.038 inchH2O (51.77 mmH2O) |
| Air Flow | 25.78 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.391 lb (177.35 g) |
| Category | Blower |
| Current Rating | 1.30 A |
| Operating Voltage | 6 ~ 13.2 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 50000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | BCB1012EH-Delta.pdf |
