Description

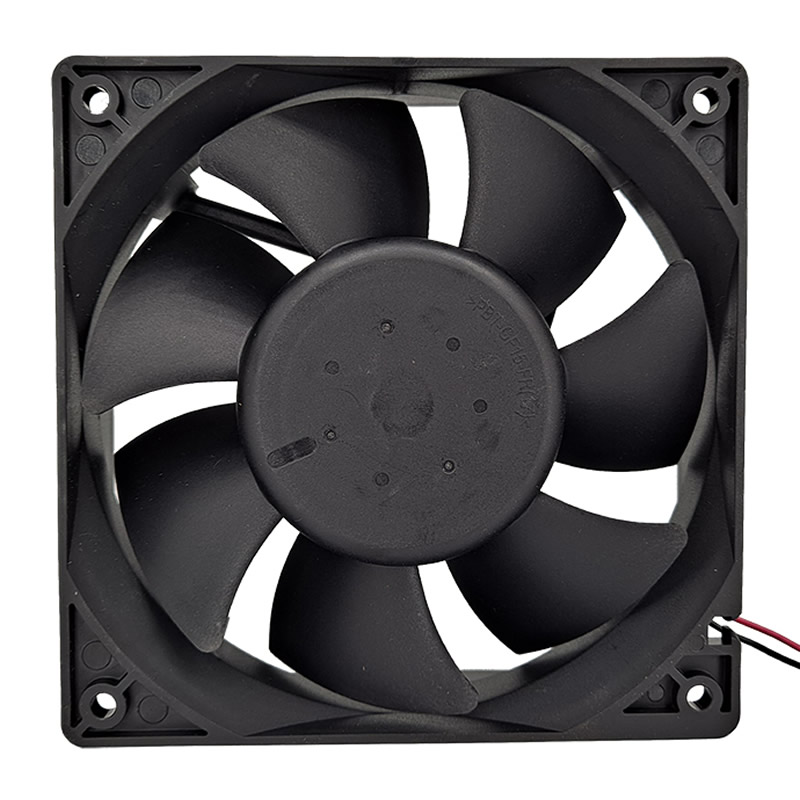

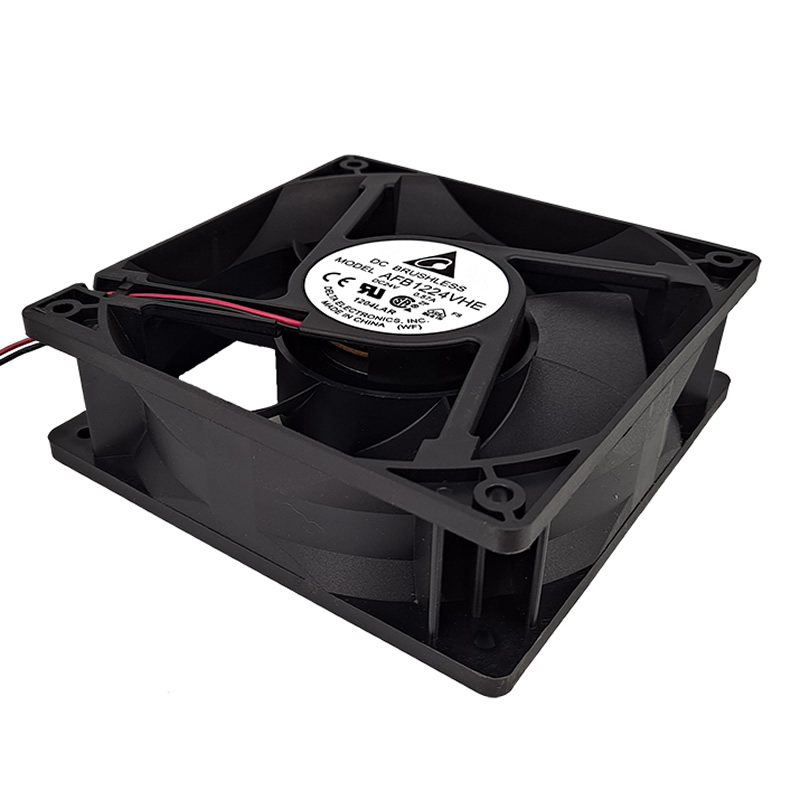

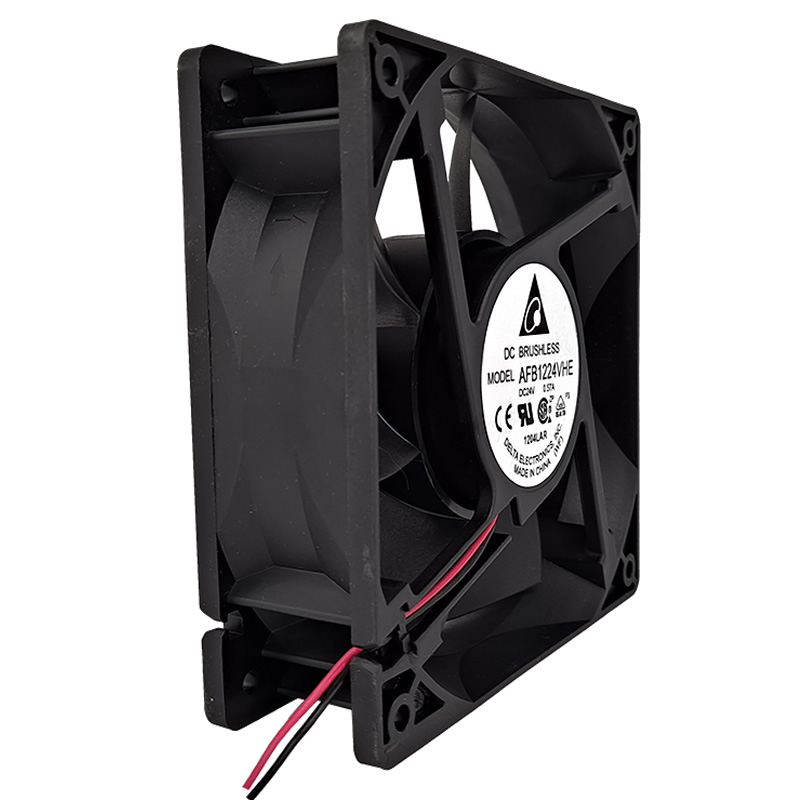

AFB1224VHE Delta 120x120x38mm Ball 24VDC 129.96CFM(3.680m3/min) 0.420inchH2O(10.70mmH2O) 48.0dB(A) 9.12W 3200RPM 2wireleads fan
Specifications
| Model | AFB1224VHE |
|---|---|
| Manufacturer | Delta Electronics |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 3.680 m3/min |
| Dimensions | 120x120x38 mm |
| Termination | 2 wire leads |
| Fan Speed | 3200 RPM |
| Power Rating | 9.12 W |
| Noise Level | 48.0 dB(A) |
| Static Pressure | 0.420 inchH2O (10.70 mmH2O) |
| Air Flow | 129.96 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.565 lb (256.28 g) |
| Category | Axial |
| Current Rating | 0.38 A |
| Operating Voltage | 7 ~ 27.6 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB1224VHE-Delta.pdf |
