Description

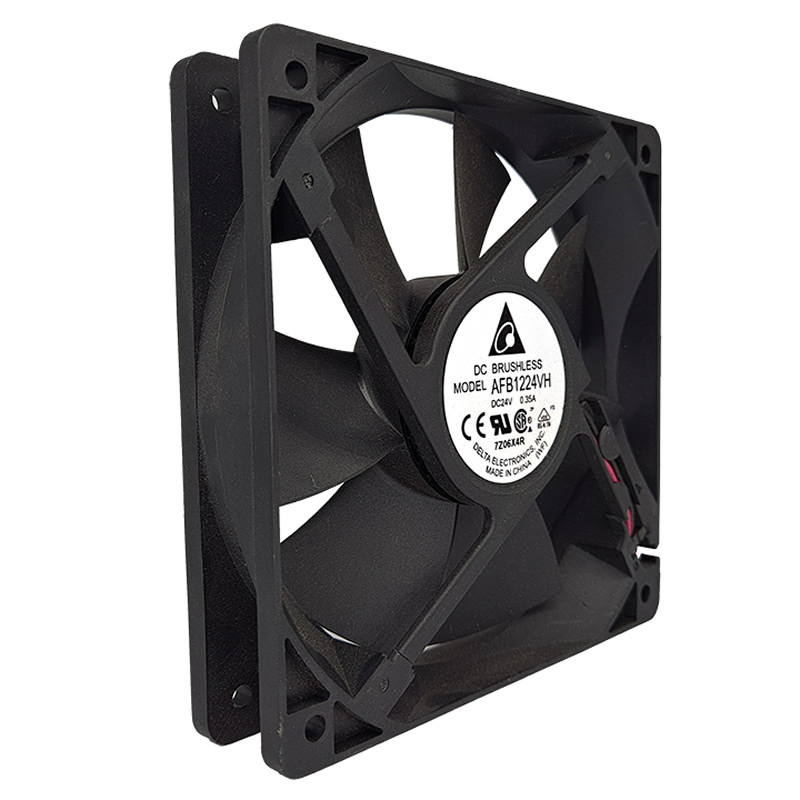

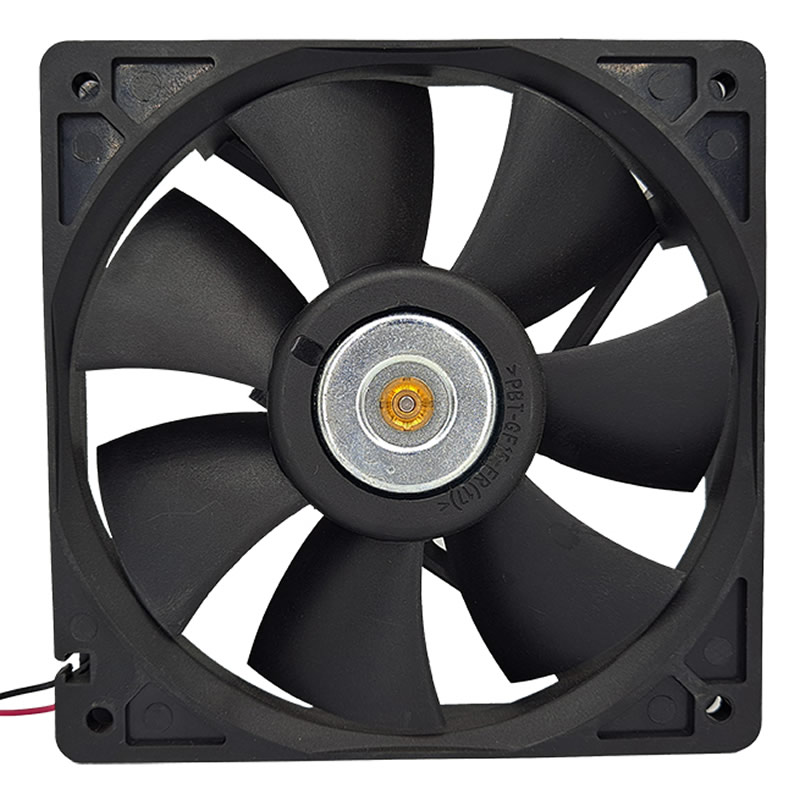

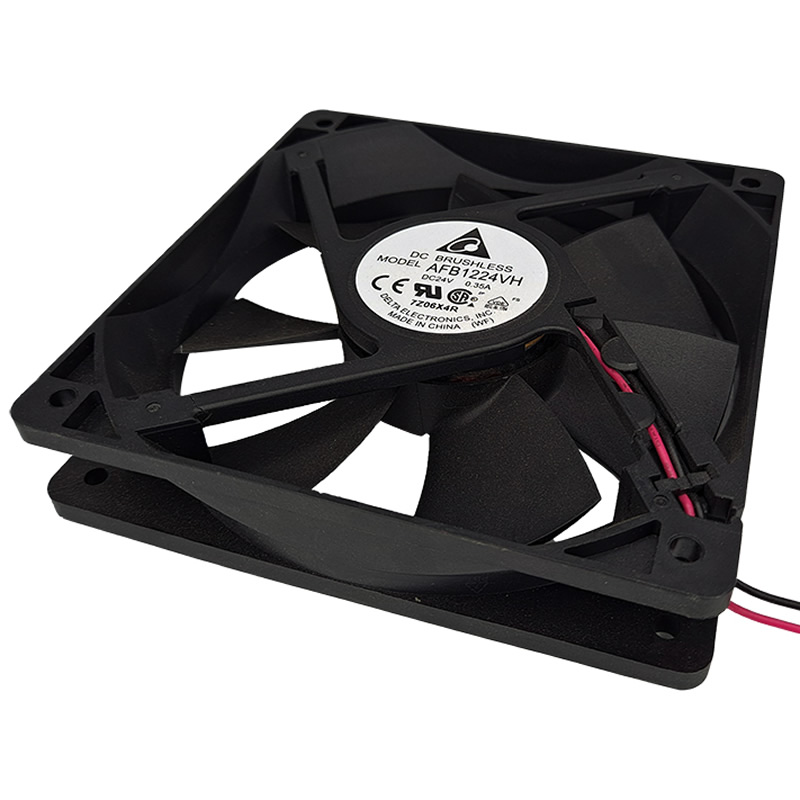

AFB1224VH Delta 120x120x25.40mm Ball 24VDC 103.71CFM(2.938m3/min) 0.371inchH2O(9.43mmH2O) 44.5dB(A) 5.52W 3100RPM 2wireleads fan
Specifications
| Part Number | AFB1224VH |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 120x120x25.40 mm |
| Noise Level | 44.5 dB(A) |
| Material Frame | Plastic |
| Operating Voltage | 14 ~ 27.6 VDC |
| Current Rating | 0.23 A |
| Category | Axial |
| Weight | 0.437 lb (198.00 g) |
| Bearing Type | Ball Bearing |
| Voltage Rating | 24 VDC |
| Air Flow | 103.71 CFM |
| Static Pressure | 0.371 inchH2O (9.43 mmH2O) |
| Power Rating | 5.52 W |
| Fan Type | DC |
| Fan Speed | 3100 RPM |
| Termination | 2 wire leads |
| Air Flow (m3) | 2.938 m3/min |
| Series | AFB |
| Features | Locked Rotor Protection |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB1224VH-Delta.pdf |
