Description

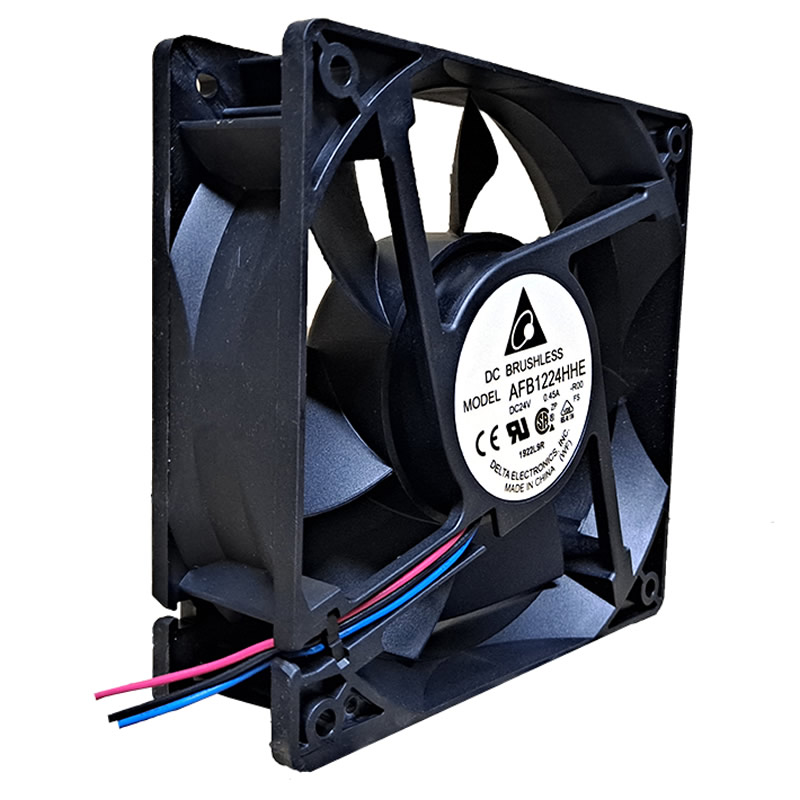

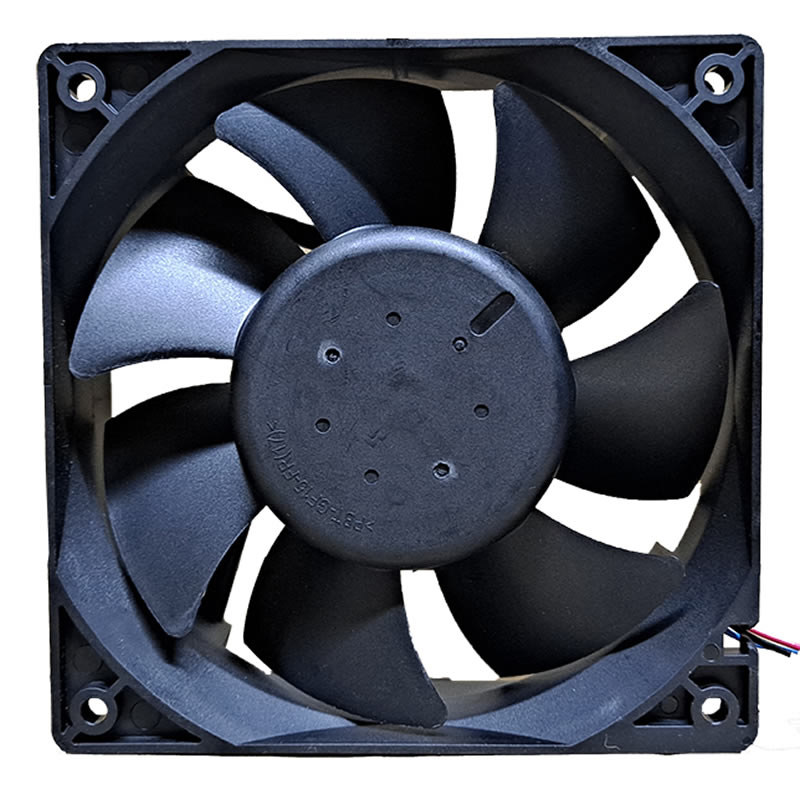

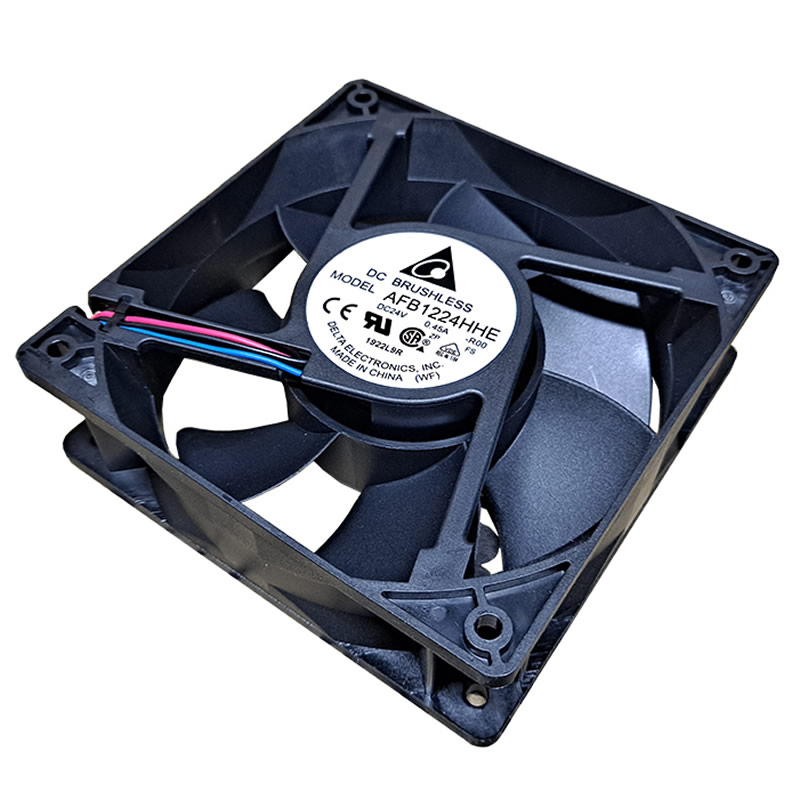

AFB1224HHE-R00 Delta 120x120x38mm Ball 24VDC 120.07CFM(3.400m3/min) 0.354inchH2O(9.00mmH2O) 44.0dB(A) 7.20W 2900RPM 3-wire leads fan
Delta AFB1224HHE-R00 is a DC brushless axial flow fan with a nominal voltage of 24VDC (operating voltage 7.0-27.6VDC), maximum input current of 0.45A, power of 10.80W, and rotational speed of 2900RPM. It delivers a maximum air flow of 3.400m³/min (minimum 3.130m³/min) and maximum static pressure of 9.00mmH₂O (minimum 7.62mmH₂O), with an average acoustic noise of 44.0dB(A) (maximum 47.0dB(A)). The frame and impeller are made of UL 94V-0 flame-retardant plastic, equipped with double ball bearings, weighing 256g, and rotating clockwise when viewed from the nameplate side. It uses UL 1007-F AWG#24 leads (red+ black- blue lock signal), operates at -10°C to 60°C, stores at -40°C to 75°C, and features locked rotor protection (preventing fire within 96h of lock-up) and reverse polarity protection, with a 70,000-hour lifespan at 40°C/15%-65%RH. Supporting rotation detect (RD) signal output in open collector mode, it is suitable for industrial equipment cooling requiring moderate air flow.
Specifications
| Part Number | AFB1224HHE-R00 |
|---|---|
| Manufacturer | Delta Electronics |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Sensor |
| Series | AFB |
| Air Flow (m3) | 3.400 m3/min |
| Dimensions | 120x120x38 mm |
| Termination | 3 wire leads |
| Fan Speed | 2900 RPM |
| Power Rating | 7.20 W |
| Noise Level | 44.0 dB(A) |
| Static Pressure | 0.354 inchH2O (9.00mmH2O) |
| Air Flow | 120.07 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.565 lb (256.28 g) |
| Category | Axial |
| Current Rating | 0.30 A |
| Operating Voltage | 7 ~ 27.6 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB1224HHE-R00-Delta.pdf |
