Description

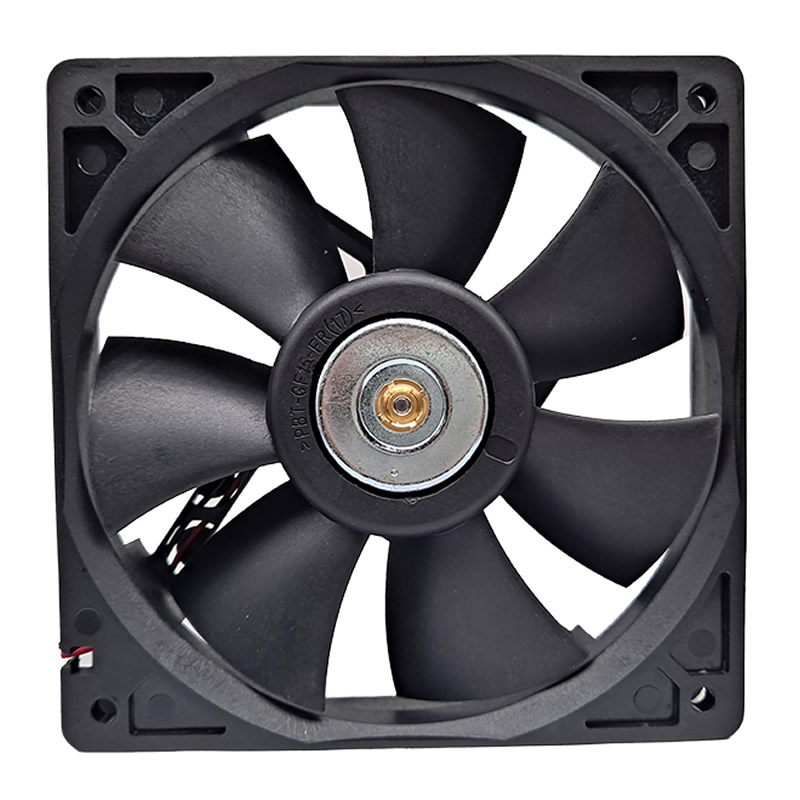

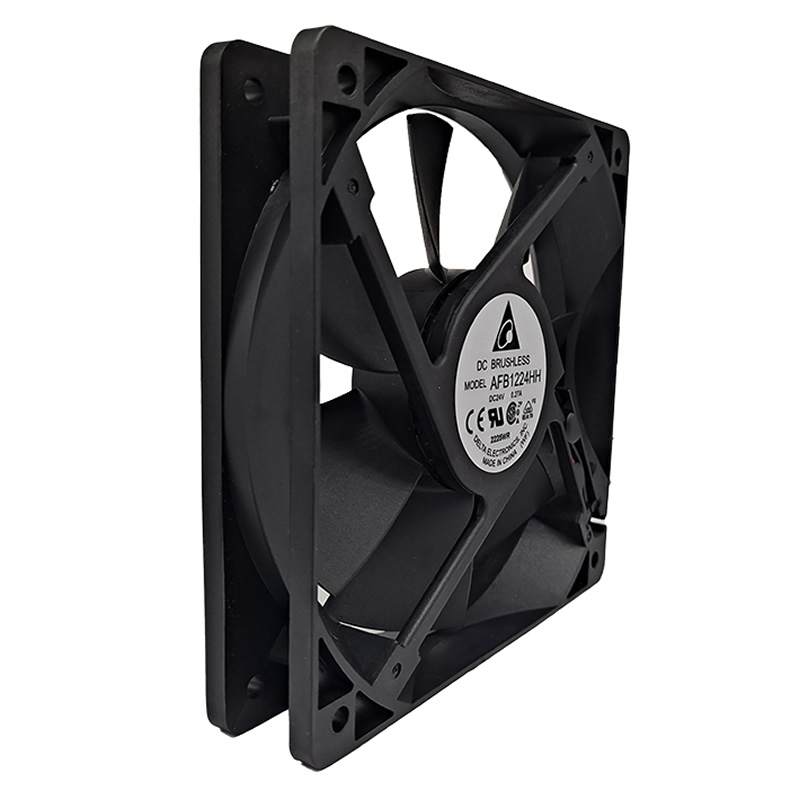

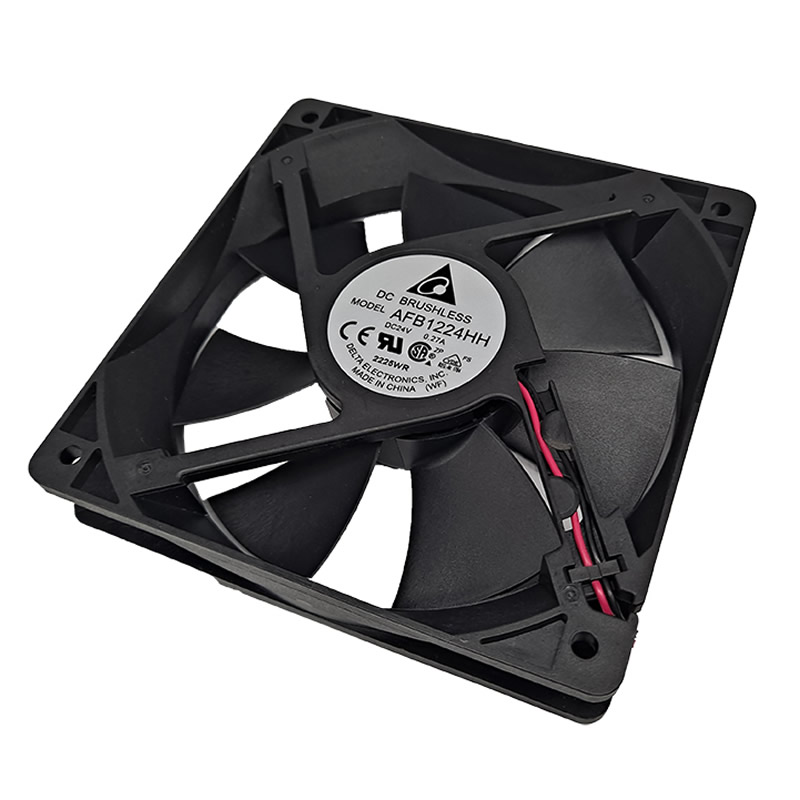

AFB1224HH Delta 120x120x25.40mm Ball 24VDC 95.14CFM(2.694m3/min) 0.304inchH2O(7.73mmH2O) 41.5dB(A) 4.32W 2800RPM 2wireleads fan
Specifications
| Part Number | AFB1224HH |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 2.694 m3/min |
| Dimensions | 120x120x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 2800 RPM |
| Power Rating | 4.32 W |
| Noise Level | 41.5 dB(A) |
| Static Pressure | 0.304 inchH2O (7.73 mmH2O) |
| Air Flow | 95.14 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.437 lb (198.00 g) |
| Category | Axial |
| Current Rating | 0.18 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Subcategory | DC axial compact fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB1224HH-Delta.pdf |
