Description

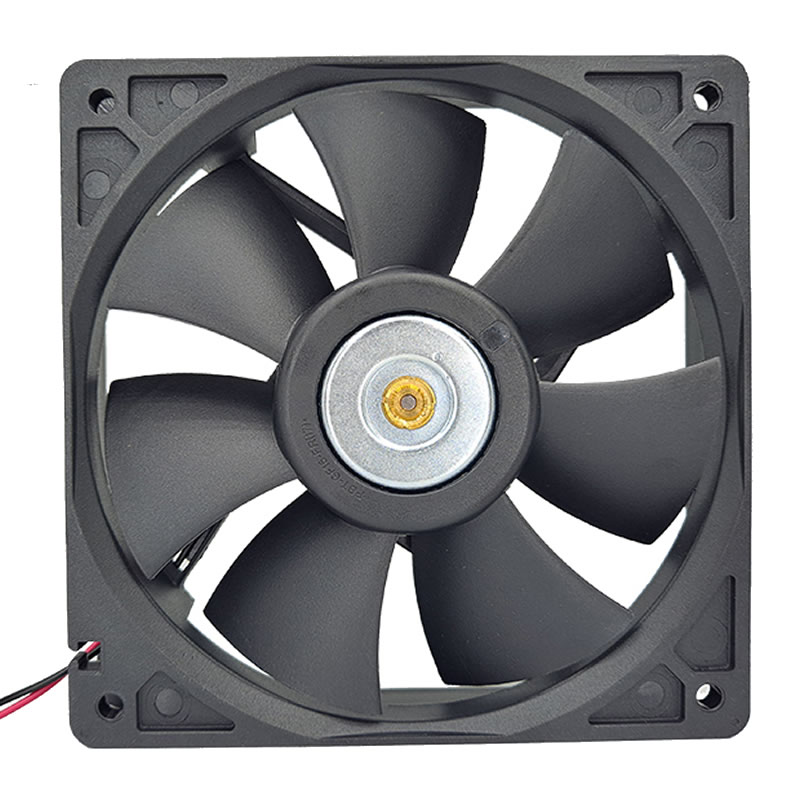

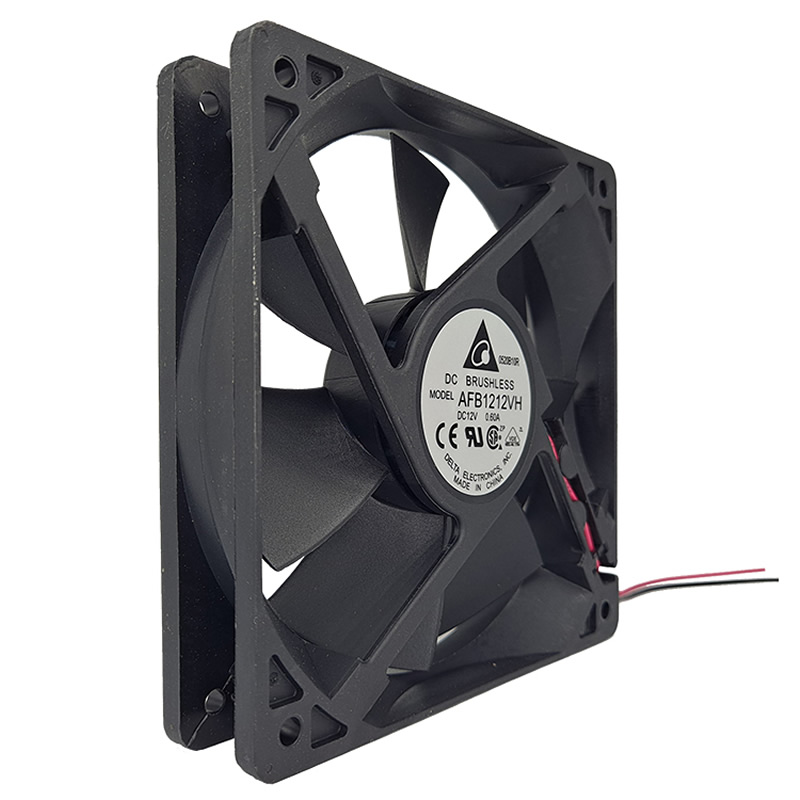

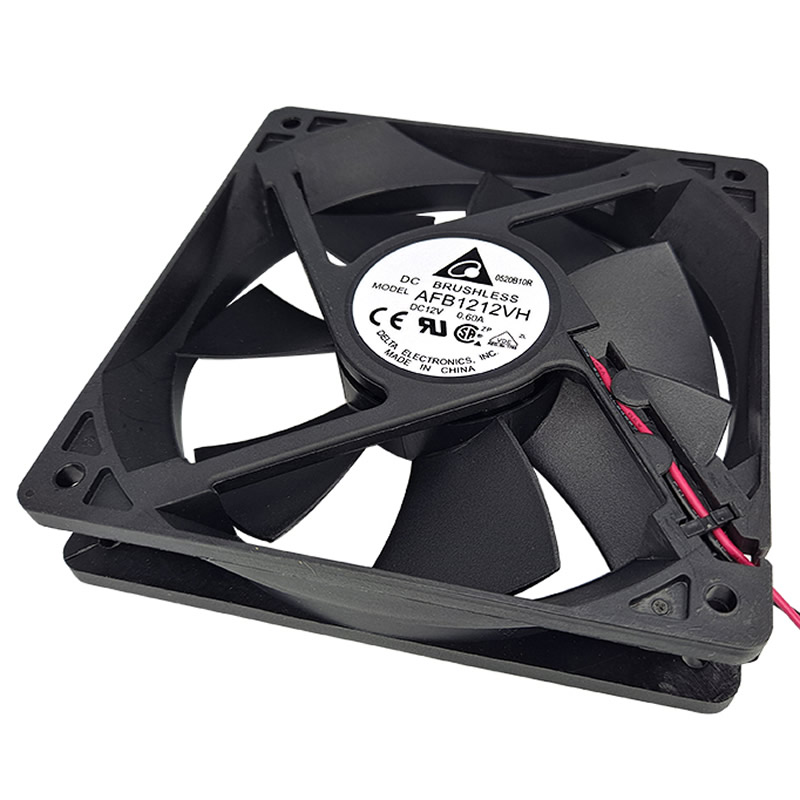

AFB1212VH Delta 120x120x25.40mm Ball 12VDC 103.75CFM(2.938m3/min) 0.371inchH2O(9.43mmH2O) 44.5dB(A) 4.80W 3100RPM 2wireleads fan
Specifications
| Part Number | AFB1212VH |
|---|---|
| Manufacturer | Delta Electronics |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 2.938 m3/min |
| Dimensions | 120x120x25.40 mm |
| Termination | 2 wire leads |
| Fan Speed | 3100 RPM |
| Power Rating | 4.80 W |
| Noise Level | 44.5 dB(A) |
| Static Pressure | 0.371 inchH2O (9.43 mmH2O) |
| Air Flow | 103.75 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.437 lb (198.00 g) |
| Category | Axial |
| Current Rating | 0.40 A |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB1212VH-Delta.pdf |
