Description

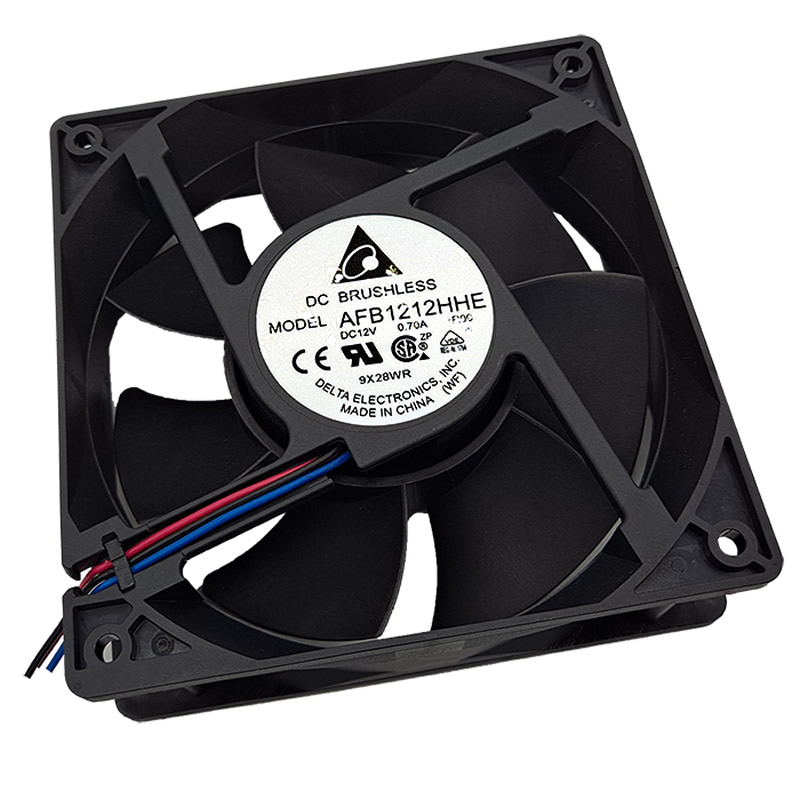

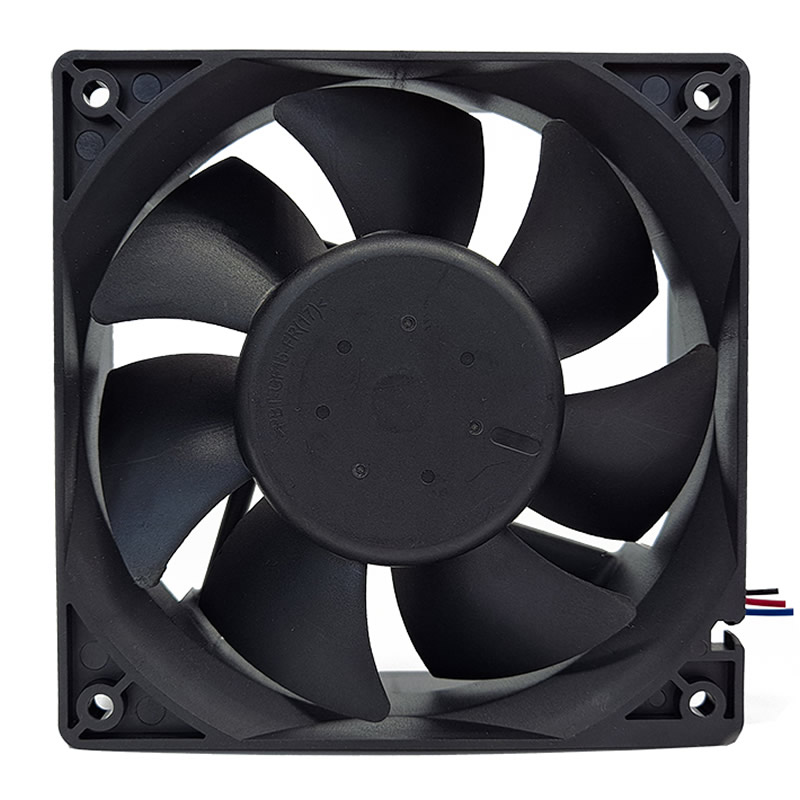

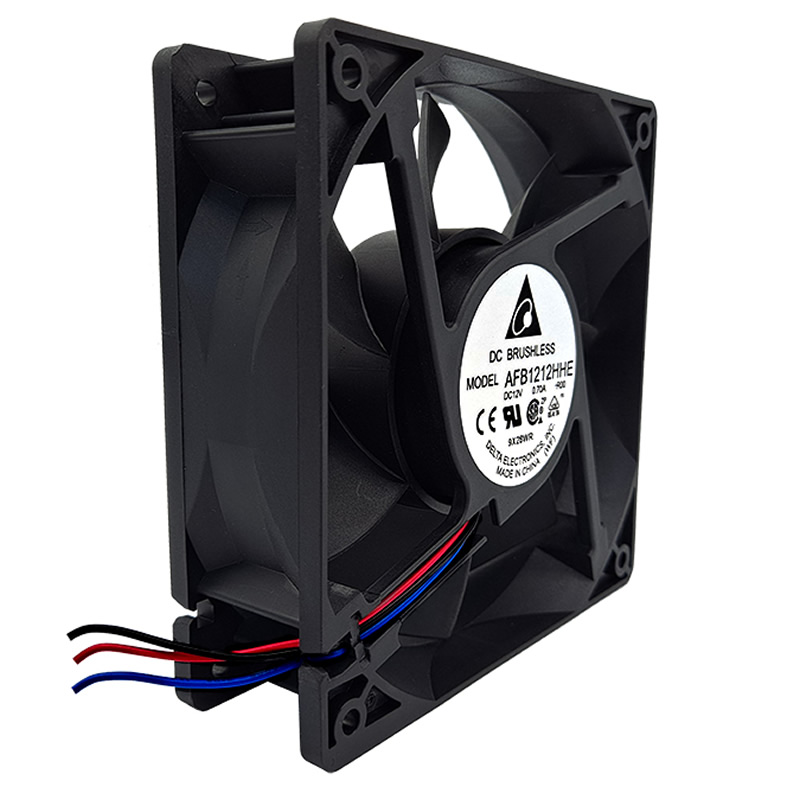

AFB1212HHE-R00 Delta 120x120x38mm Ball 12VDC 120.07CFM(3.400m3/min) 0.354inchH2O(9.00mmH2O) 44.0dB(A) 5.52W 2900RPM 3wireleads fan
Specifications
| Part Number | AFB1212HHE-R00 |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 5.52 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Sensor |
| Series | AFB |
| Air Flow (m3) | 3.400 m3/min |
| Dimensions | 120x120x38 mm |
| Termination | 3 wire leads |
| Fan Speed | 2900 RPM |
| Fan Type | DC |
| Static Pressure | 0.354 inchH2O (9.00mmH2O) |
| Noise Level | 44.0 dB(A) |
| Air Flow | 120.07 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.565 lb (256.28 g) |
| Category | Axial |
| Current Rating | 0.46 A |
| Operating Voltage | 4 ~ 13.2 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB1212HHE-R00-Delta.pdf |
