Description

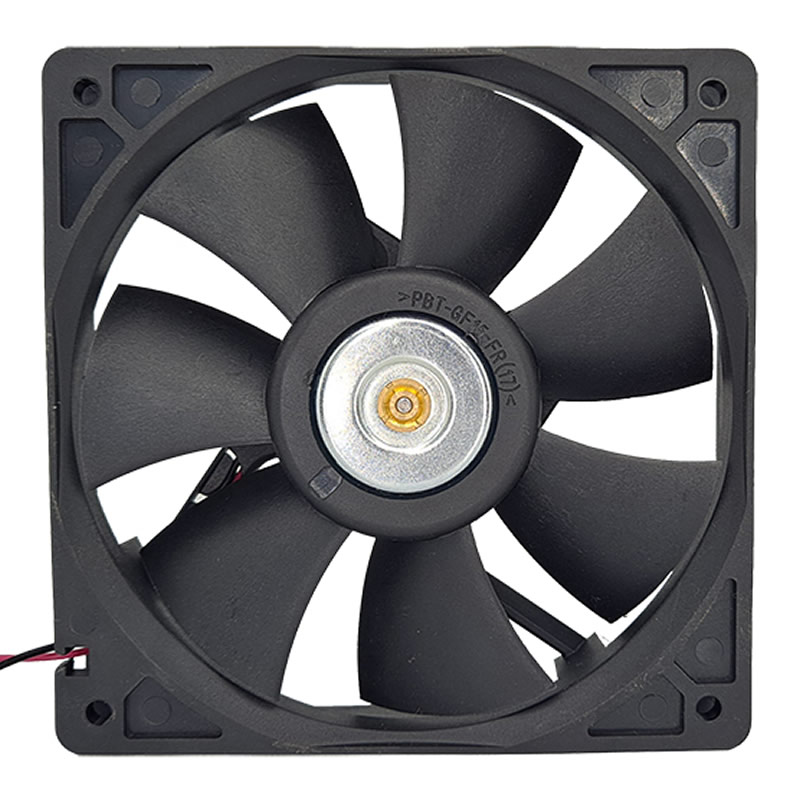

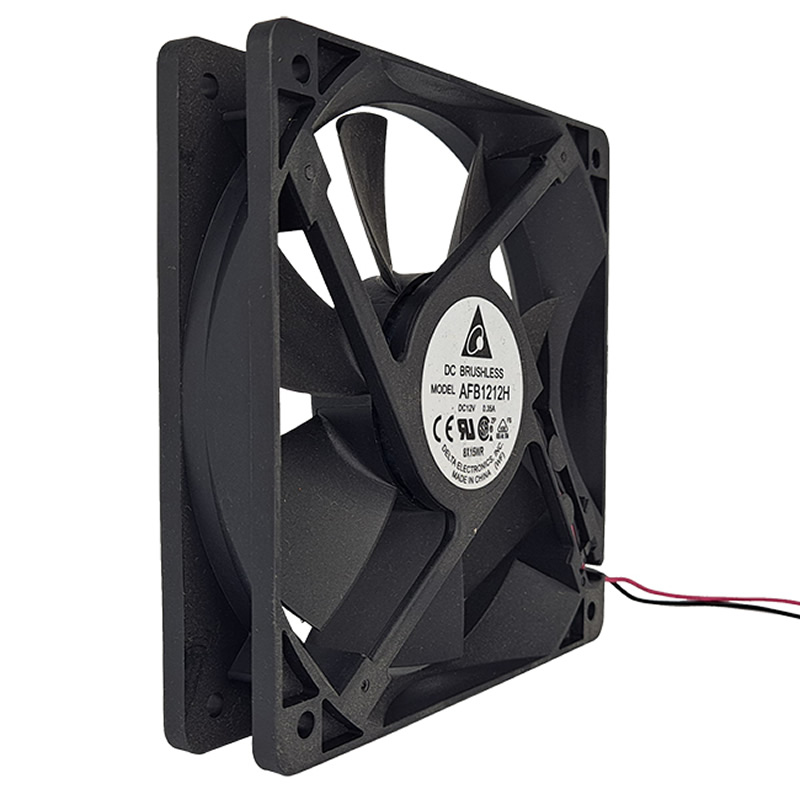

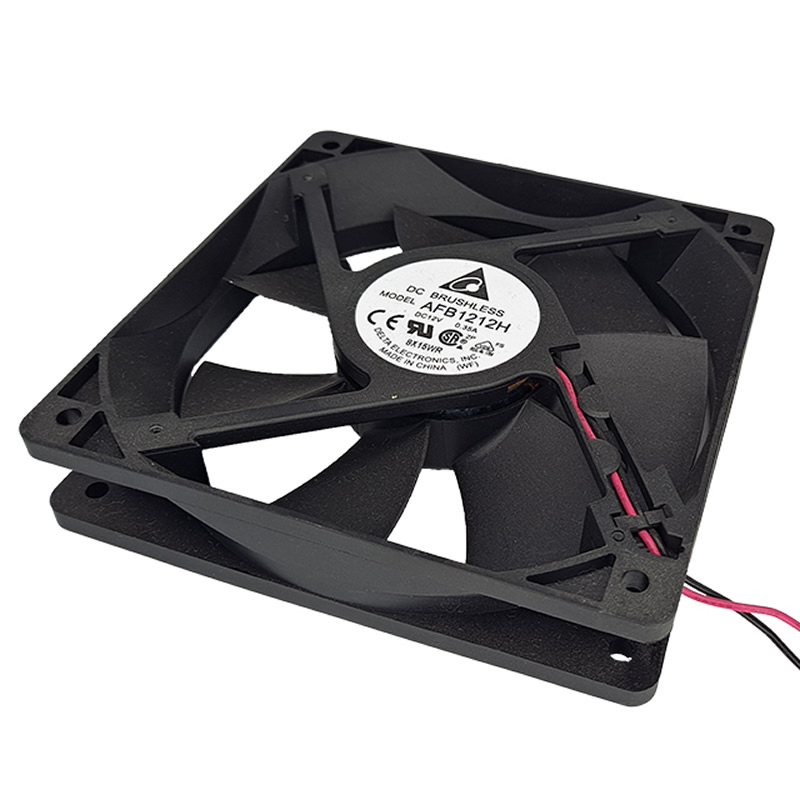

AFB1212H Delta 120x120x25.40mm Ball 12VDC 82.67CFM(2.341m3/min) 0.246inchH2O(6.25mmH2O) 38.5dB(A) 2.76W 2500RPM 2wireleads fan
Specifications
| Part Number | AFB1212H |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 2.76 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 2.341 m3/min |
| Dimensions | 120x120x25.40 mm |
| Termination | 2 wire leads |
| Fan Speed | 2500 RPM |
| Fan Type | DC |
| Static Pressure | 0.246 inchH2O (6.25 mmH2O) |
| Noise Level | 38.5 dB(A) |
| Air Flow | 82.67 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.437 lb (198.00 g) |
| Category | Axial |
| Current Rating | 0.23 A |
| Operating Voltage | 7 ~ 13.8 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB1212H-Delta.pdf |
