Description

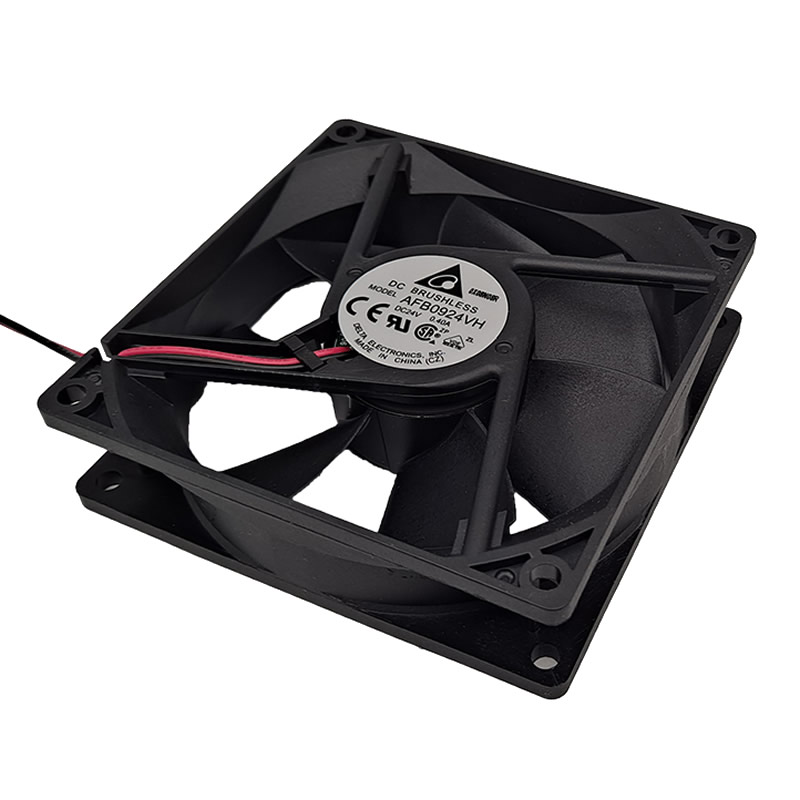

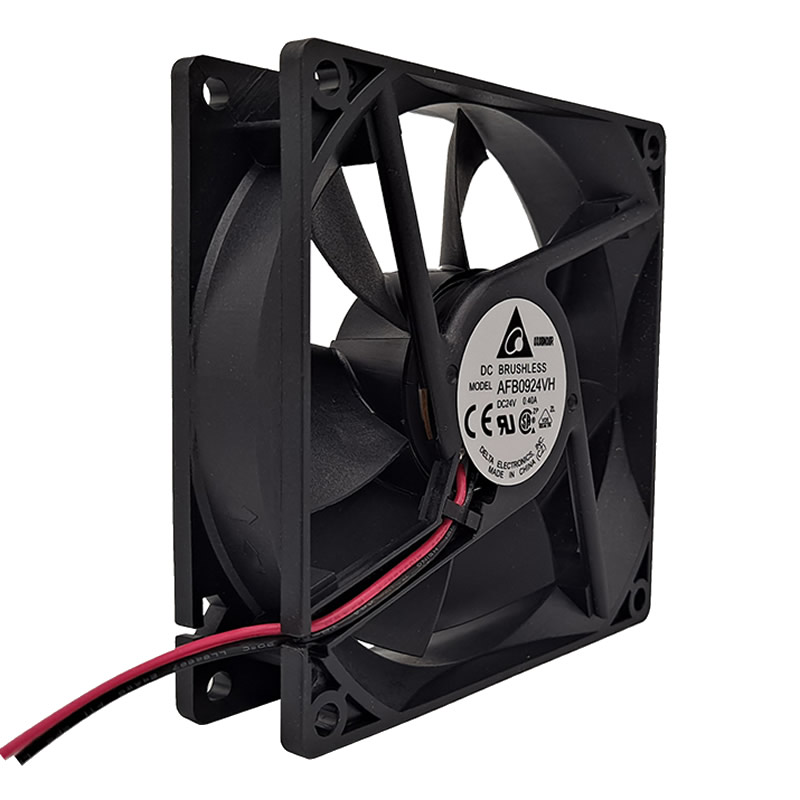

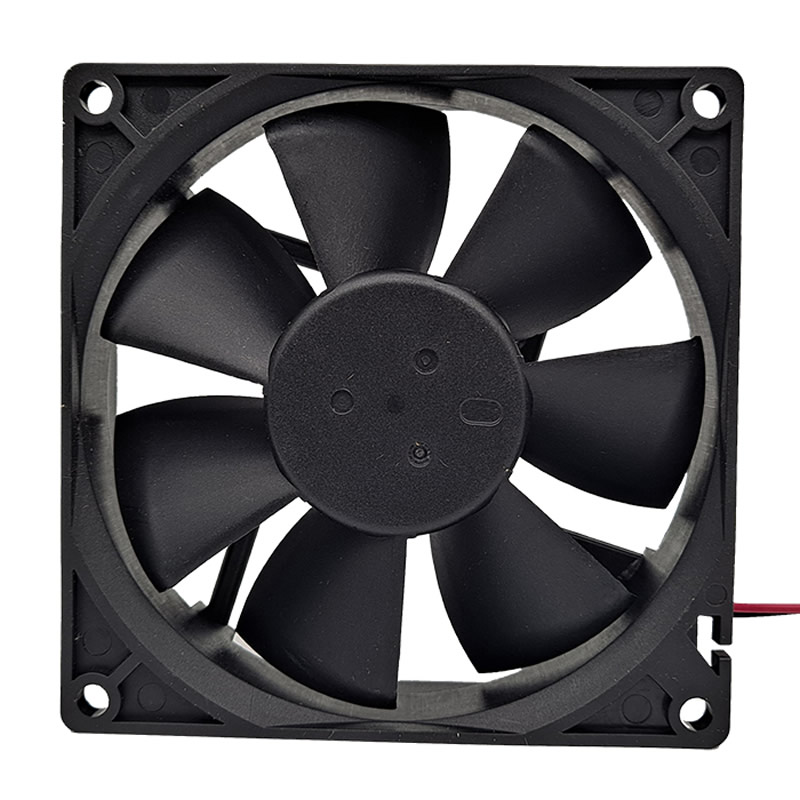

AFB0924VH Delta 92x92x25.40mm Ball 24VDC 67.80CFM(1.920m3/min) 0.302inchH2O(7.67mmH2O) 45.0dB(A) 5.28W 3800RPM 2 wire leads fan
Specifications
| Part Number | AFB0924VH |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.920 m3/min |
| Dimensions | 92x92x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 3800 RPM |
| Power Rating | 5.28 W |
| Noise Level | 45.0 dB(A) |
| Static Pressure | 0.302 inchH2O (7.67 mmH2O) |
| Air Flow | 67.80 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.218 lb (98.88 g) |
| Category | Axial |
| Current Rating | 0.22 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB0924VH-Delta.pdf |
