Description

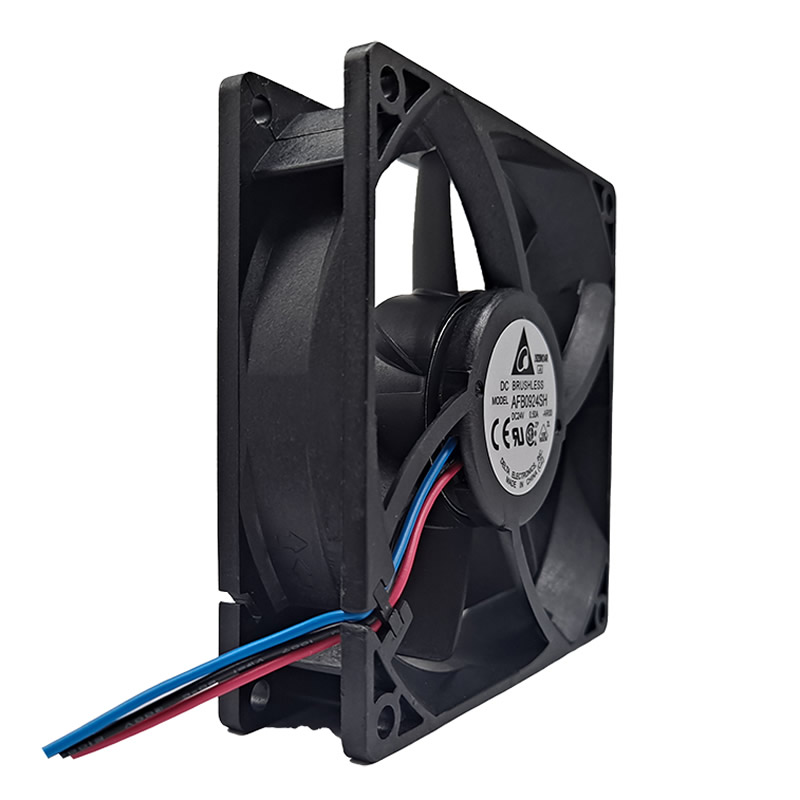

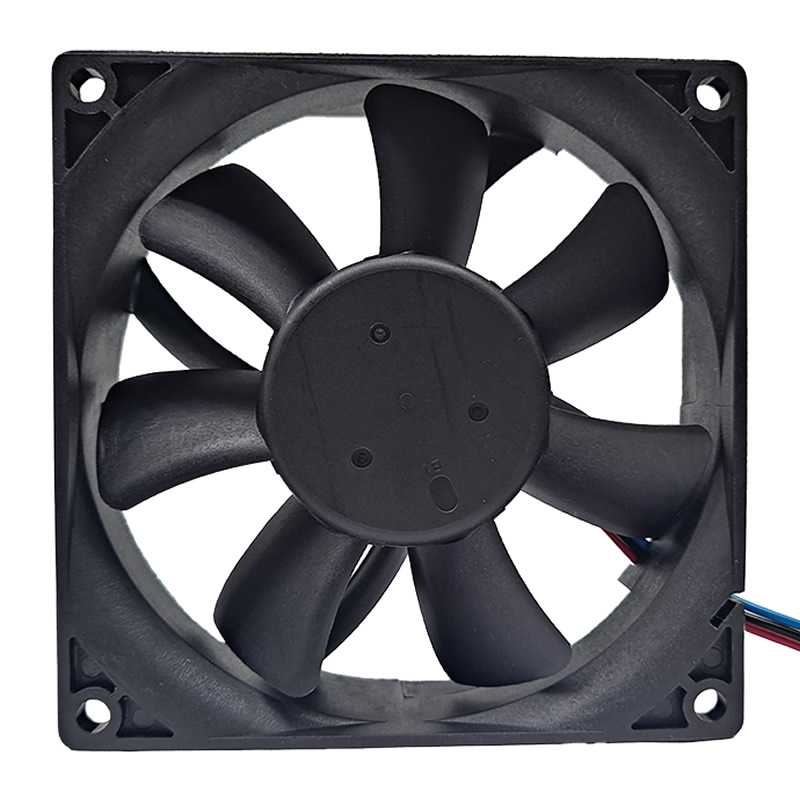

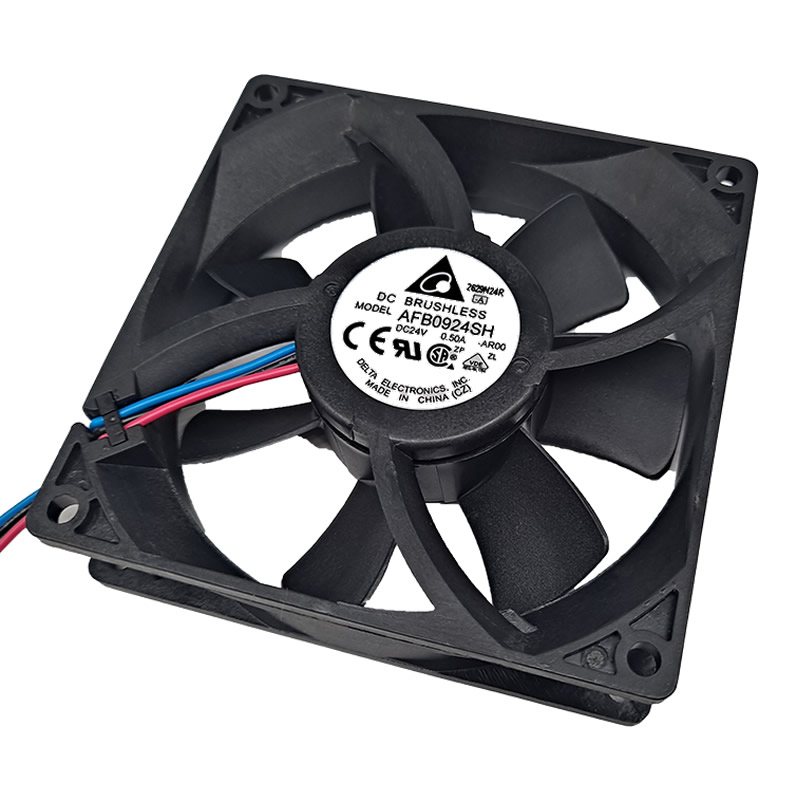

AFB0924SH-AR00 Delta 24VDC 92x92x25.40mm 102.6CFM 0.526inH2O Ball 53dB(A) 9.6W 4800RPM 3 Wire Leads Locked Rotor Sensor axial fan
Specifications
| Model | AFB0924SH-AR00 |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 92x92x25.40 mm |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 24 VDC |
| Air Flow | 102.6 CFM |
| Air Flow (m3) | 2.87 m³/min |
| Static Pressure | 0.526 in H2O (131.0 Pa) |
| Features | Locked Rotor Sensor |
| Fan Type | DC |
| Noise Level | 53 dB(A) |
| Power Rating | 9.6 W |
| Fan Speed | 4800 RPM |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.267 lb (121.11 g) |
| Current Rating | 0.50 A |
| Number of blades | 7 |
| Termination | 3 Wire Leads |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0924SH-AR00-Delta.pdf |
