Description

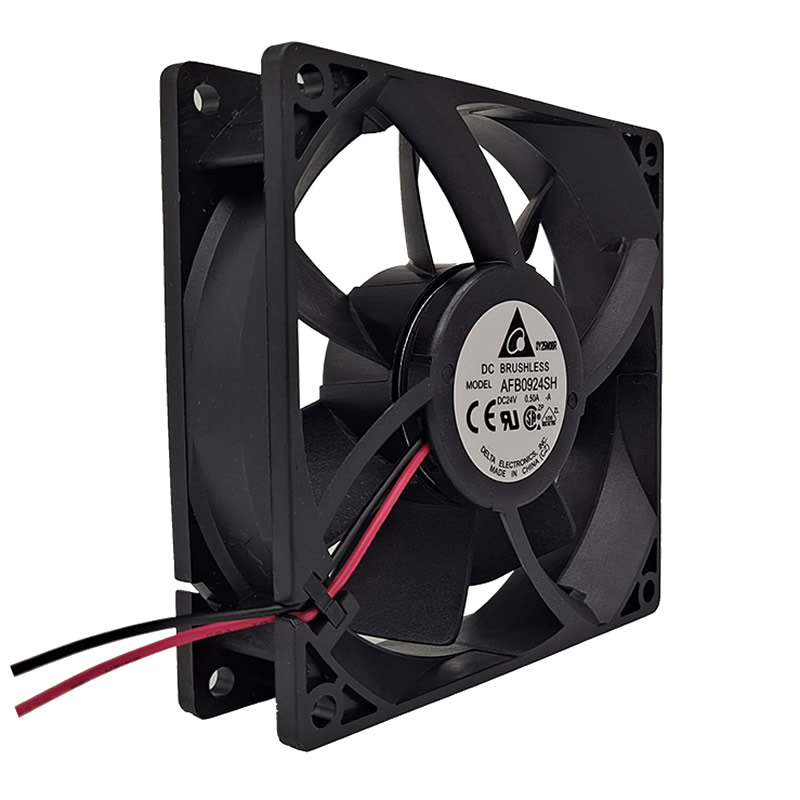

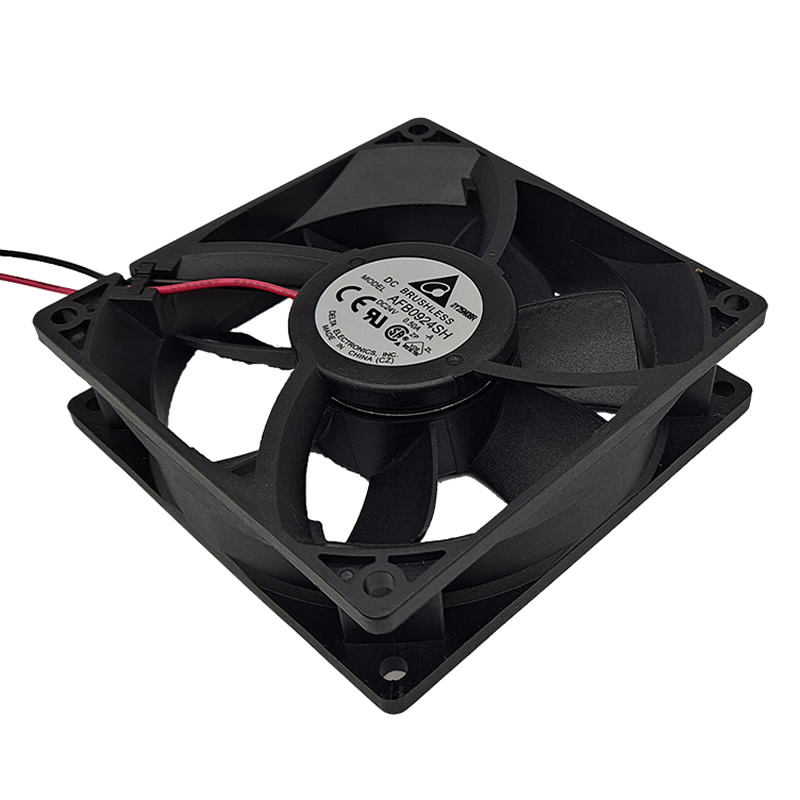

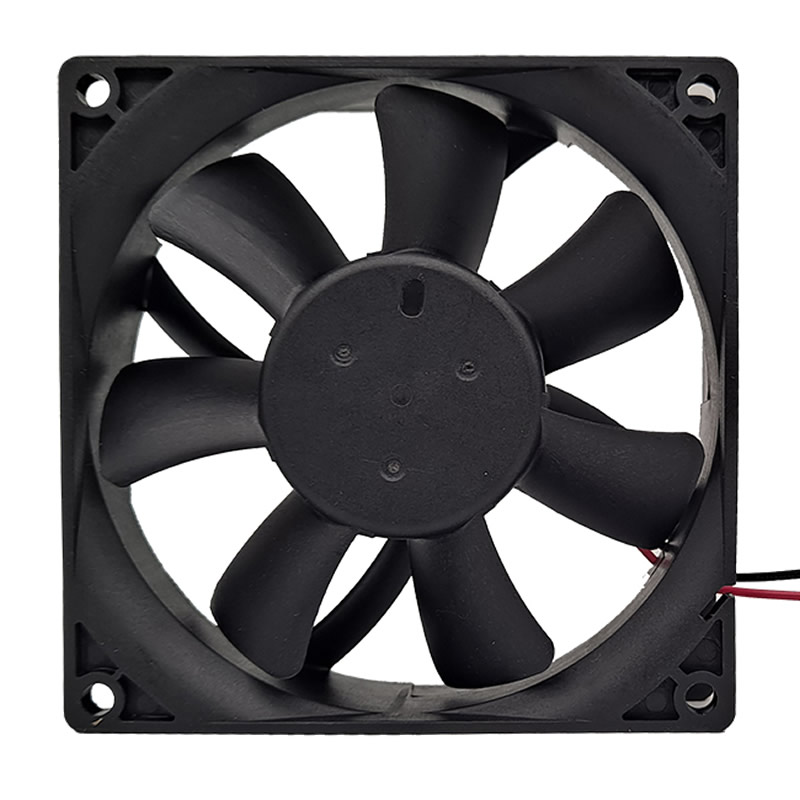

AFB0924SH-A Delta 92x92x25.40mm Ball 24VDC 102.59CFM(2.905m3/min) 0.526inchH2O(13.35mmH2O) 53.0dB(A) 9.60W 4800RPM 2wireleads
Specifications
| Part Number | AFB0924SH-A |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 2.905 m3/min |
| Dimensions | 92x92x25.40 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 4800 RPM |
| Power Rating | 9.60 W |
| Noise Level | 53.0 dB(A) |
| Static Pressure | 0.526 inchH2O (13.35 mmH2O) |
| Air Flow | 102.59 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.267 lb (121.11 g) |
| Category | Axial |
| Current Rating | 0.40 A |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0924SH-A-Delta.pdf |
