Description

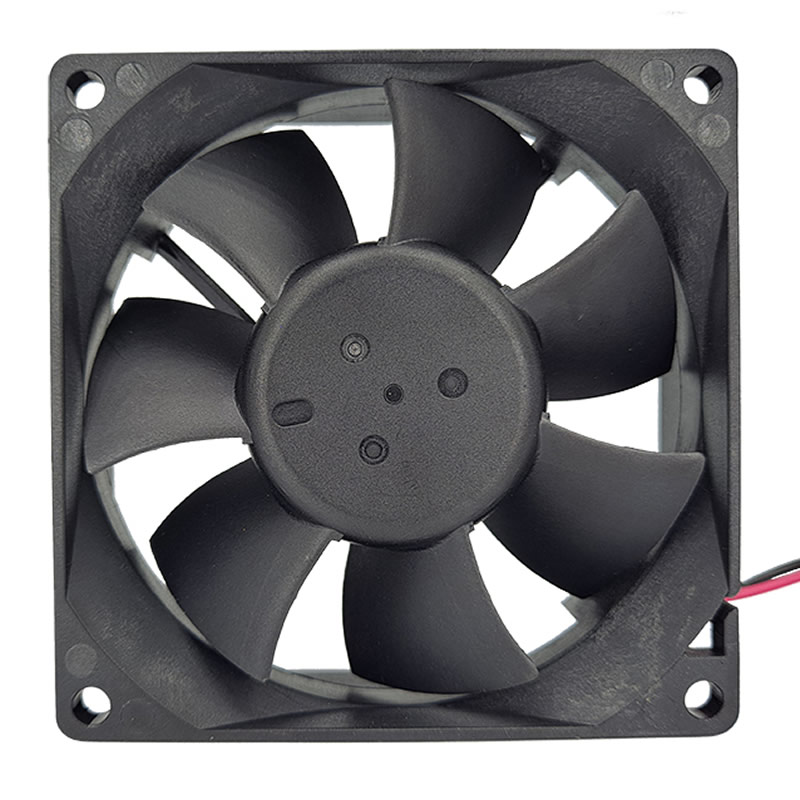

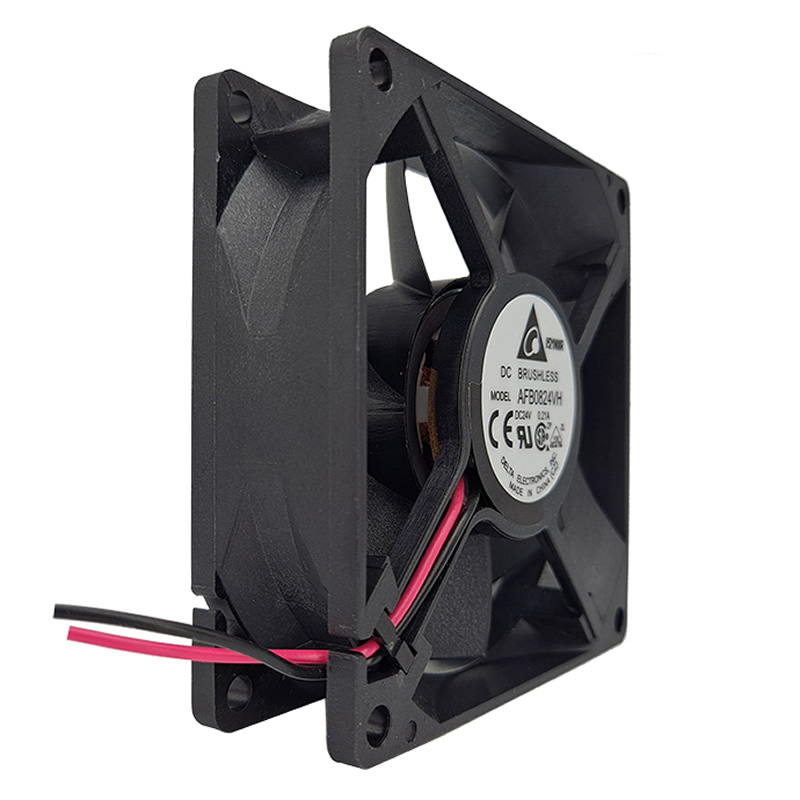

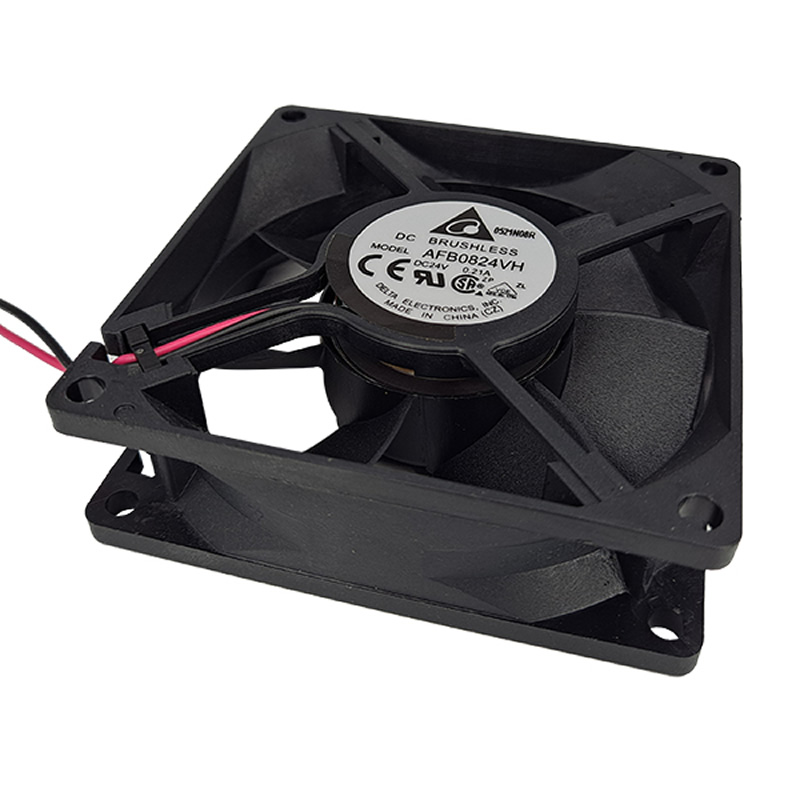

AFB0824VH Delta 80x80x25.40mm Ball 24VDC 42.02CFM(1.190m3/min) 0.217inchH2O(5.51mmH2O) 38.0dB(A) 3.36W 3600RPM 2wireleads fan
Specifications
| Part Number | AFB0824VH |
|---|---|
| Manufacturer | Delta Electronics |
| Power Rating | 3.36 W |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.190 m3/min |
| Dimensions | 80x80x25.40 mm |
| Termination | 2 wire leads |
| Fan Speed | 3600 RPM |
| Fan Type | DC |
| Static Pressure | 0.217 inchH2O (5.51 mmH2O) |
| Noise Level | 38.0 dB(A) |
| Air Flow | 42.02 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.176 lb (80.00 g) |
| Category | Axial |
| Current Rating | 0.14 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Material Blade | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0824VH-Delta.pdf |
