Description

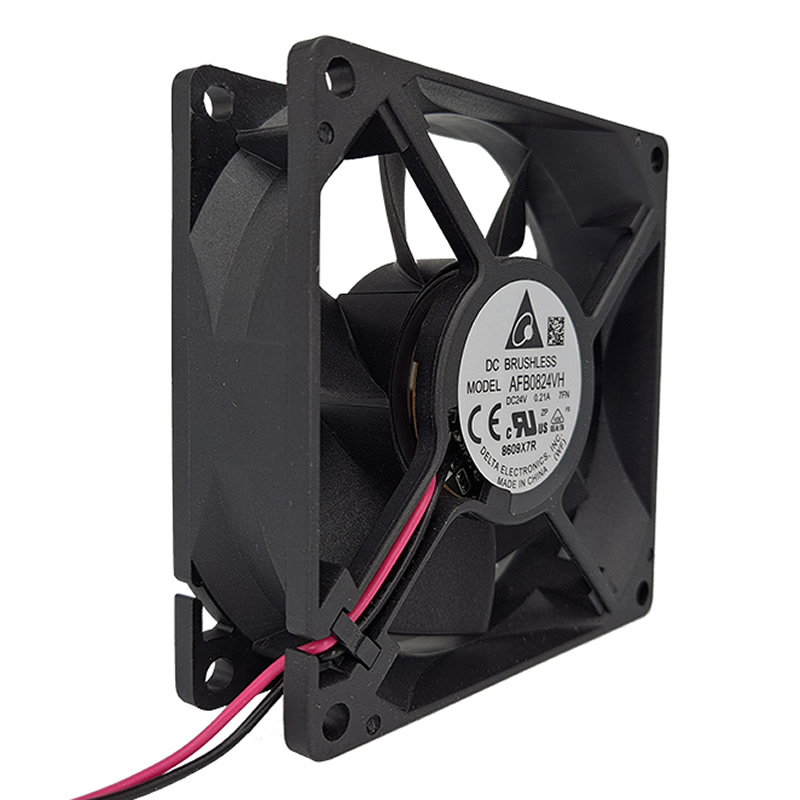

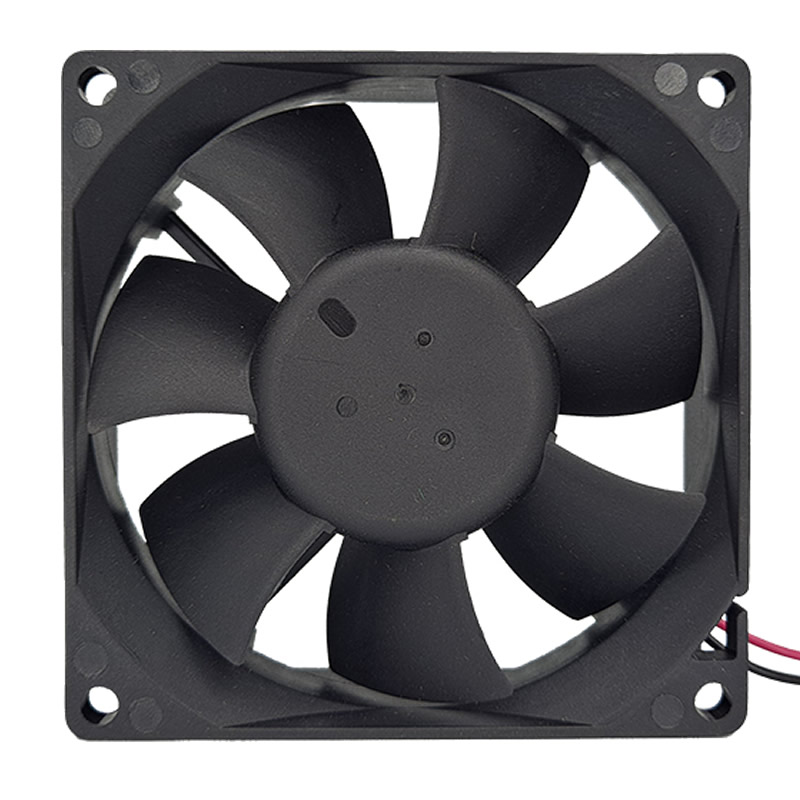

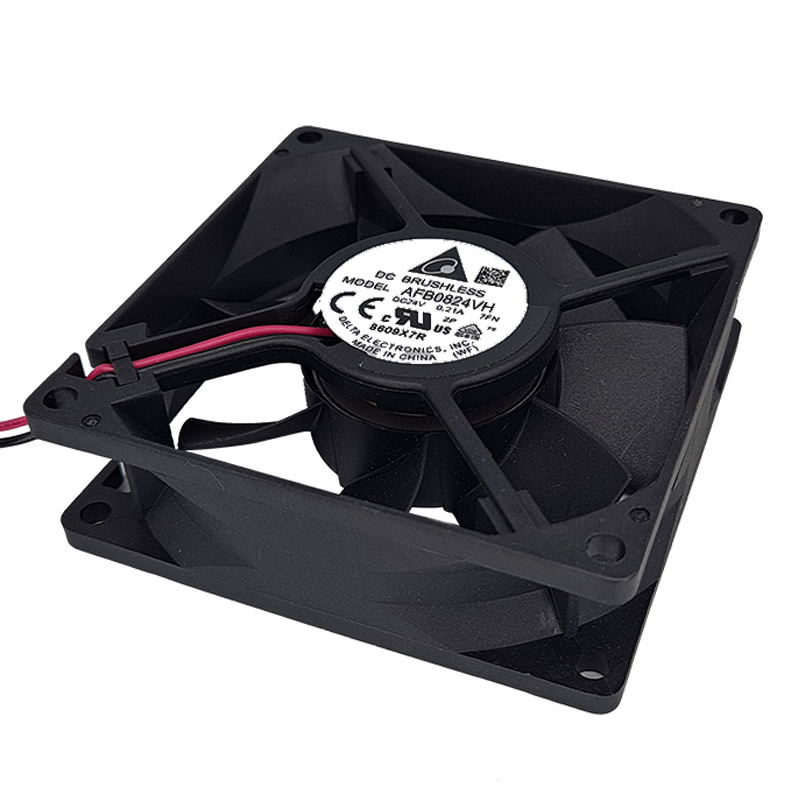

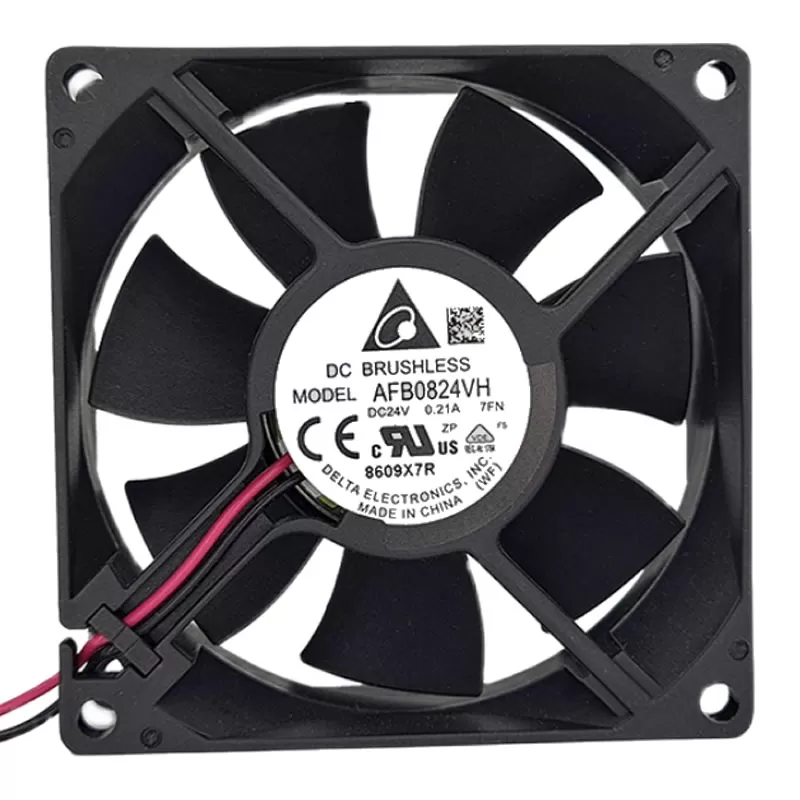

AFB0824VH-7FN Delta 80x80x25mm 24VDC 42.02CFM Ball Bearing 3600RPM 38dB(A) 2 Wire Leads fan
Bearing design: High-precision and long-life ball bearings are adopted, and the operation is stable.
YEATION material, pay attention to product details and quality,
Rest assured design: fast start, large air volume, long life, low noise and small vibration.
Specifications
| Part Number | AFB0824VH-7FN |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 80x80x25 mm |
| Voltage Rating | 24 VDC |
| Current Rating | 0.21 A |
| Air Flow | 42.02 CFM |
| Bearing Type | Ball Bearing |
| Fan Speed | 3600 RPM |
| Noise Level | 38 dB(A) |
| Termination | 2 Wire Leads |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0824VH-7FN-Delta.pdf |
