Description

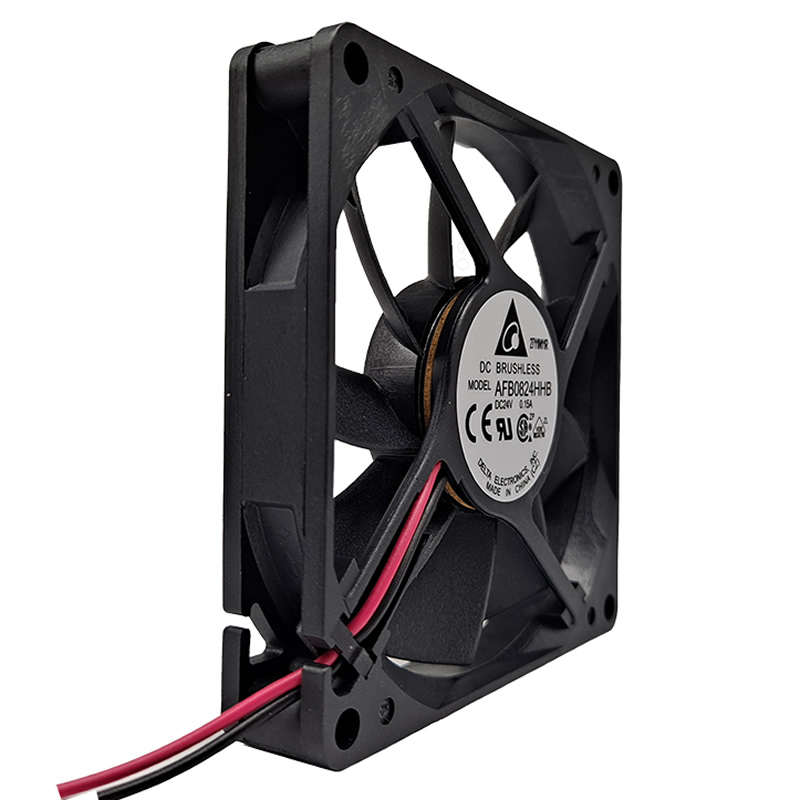

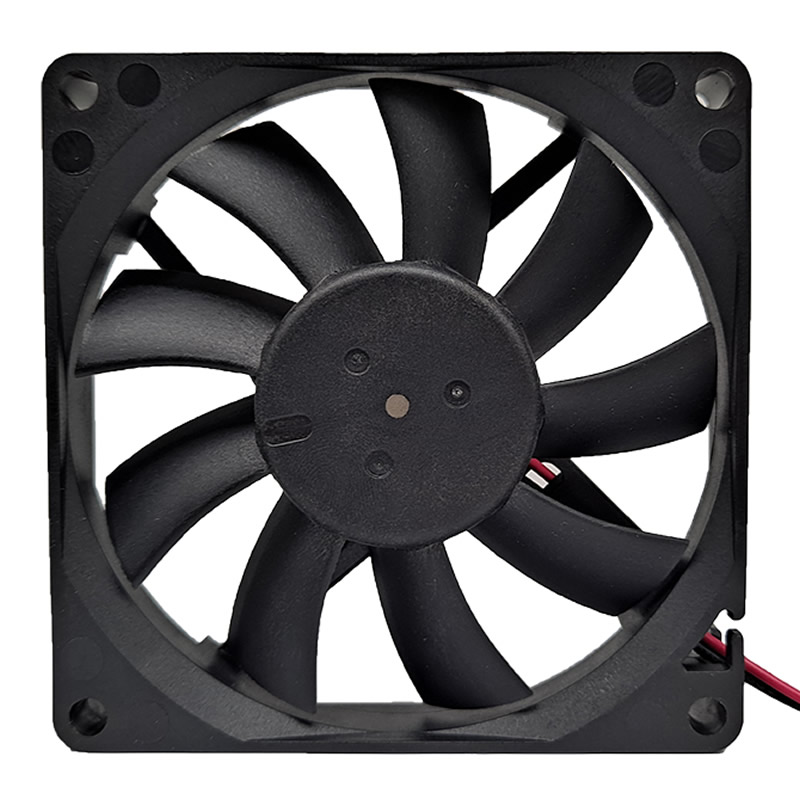

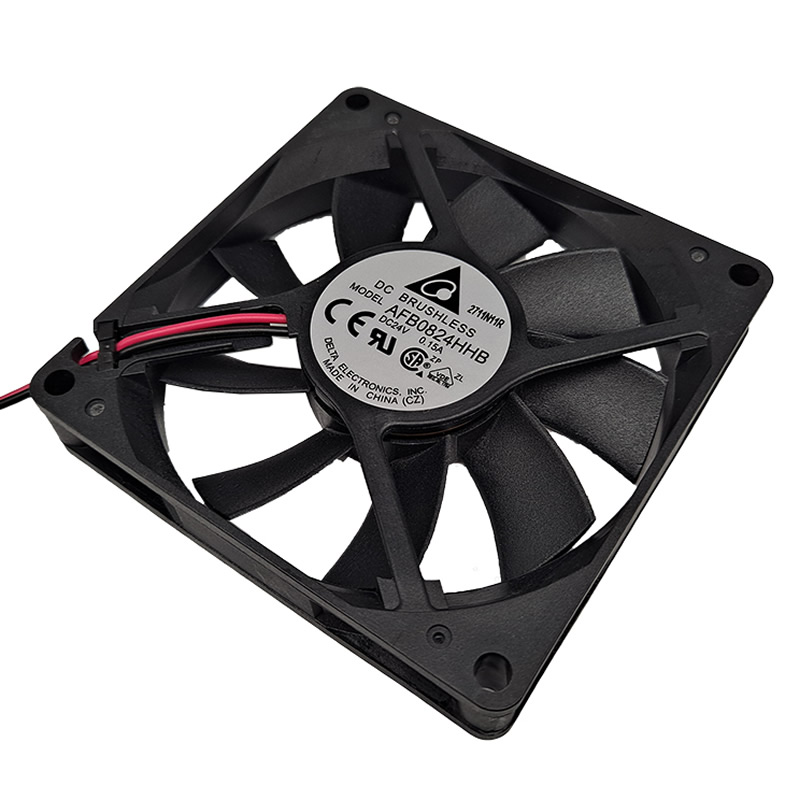

AFB0824HHB Delta 80x80x15mm Ball 24VDC 35.67CFM(1.010m3/min) 0.159inchH2O(4.03mmH2O) 37.0dB(A) 2.40W 3400RPM 2wireleads fan
Specifications
| Part Number | AFB0824HHB |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 80x80x15 mm |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 1.010 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 3400 RPM |
| Power Rating | 2.40 W |
| Noise Level | 37.0 dB(A) |
| Static Pressure | 0.159 inchH2O (4.03 mmH2O) |
| Air Flow | 35.67 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.128 lb (58.06 g) |
| Category | Axial |
| Current Rating | 0.10 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0824HHB-Delta.pdf |
