Description

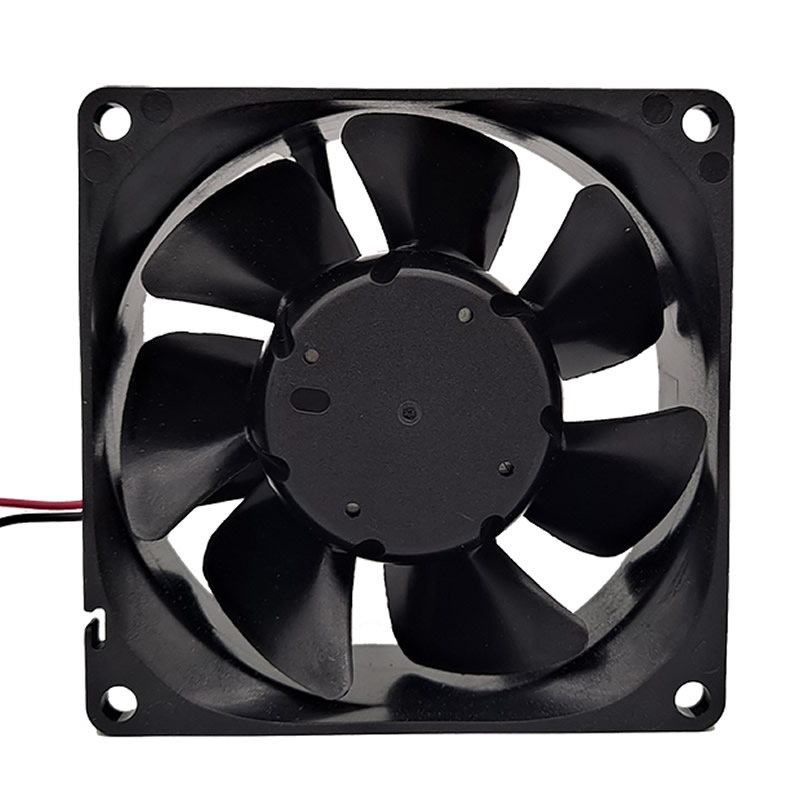

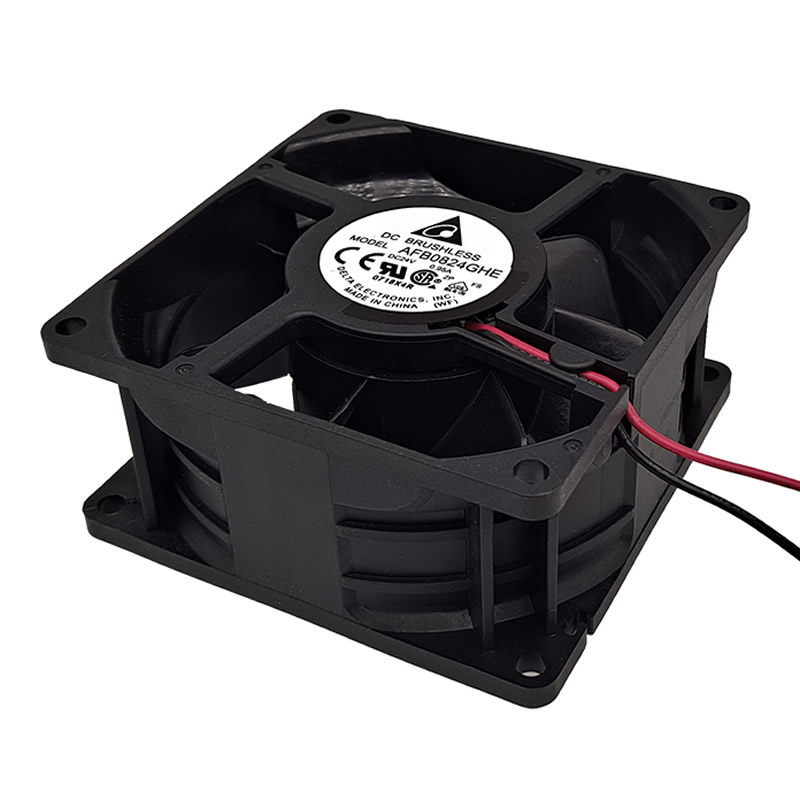

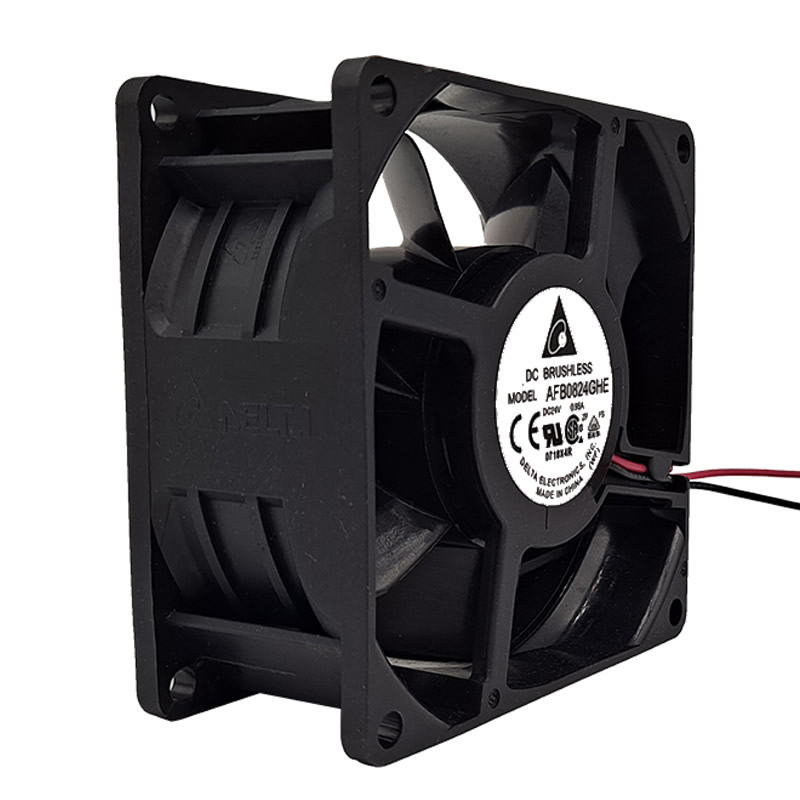

AFB0824GHE Delta 80x80x38mm Ball 24VDC 99.01CFM(2.804m3/min) 1.006inchH2O 0.95A 54.0dB(A) 15.60W 6800RPM 2wireleads axial fan
Specifications
| Model | AFB0824GHE |
|---|---|
| Dimensions | 80x80x38 mm |
| Manufacturer | Delta Electronics |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 2.804 m3/min |
| Termination | 2 wire leads |
| Fan Speed | 6800 RPM |
| Power Rating | 15.60 W |
| Noise Level | 54.0 dB(A) |
| Static Pressure | 1.006 inchH2O (25.54 mmH2O) |
| Air Flow | 99.01 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.344 lb (156.04 g) |
| Category | Axial |
| Current Rating | 0.95 A |
| Operating Voltage | 14 ~ 26.4 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Number of blades | 7 |
| Subcategory | DC axial fan |
| Shipping Weight | 0.5 kg |
| Product PDF | AFB0824GHE-Delta.pdf |
