Description

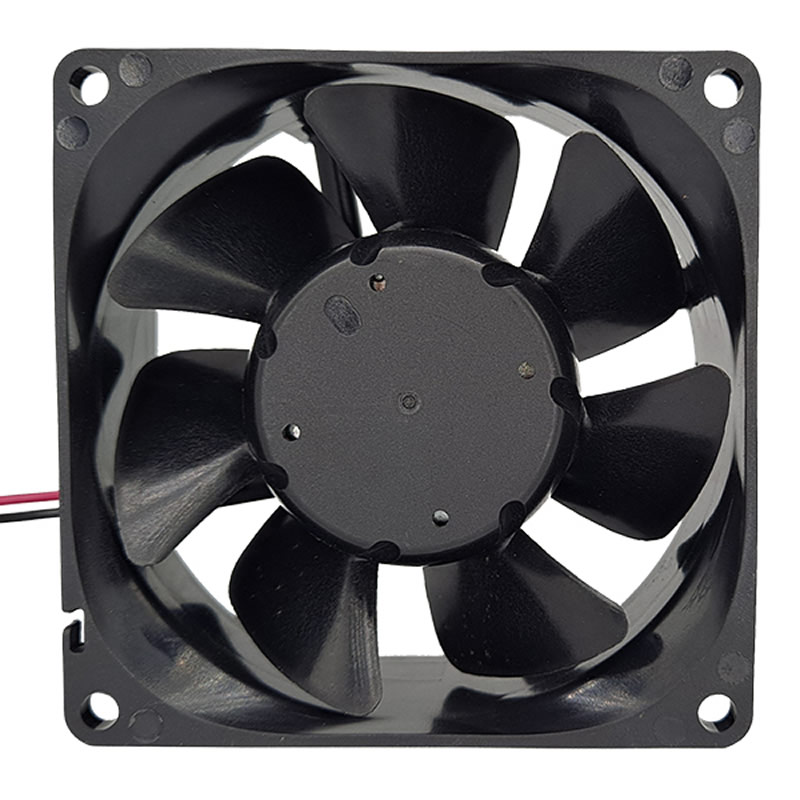

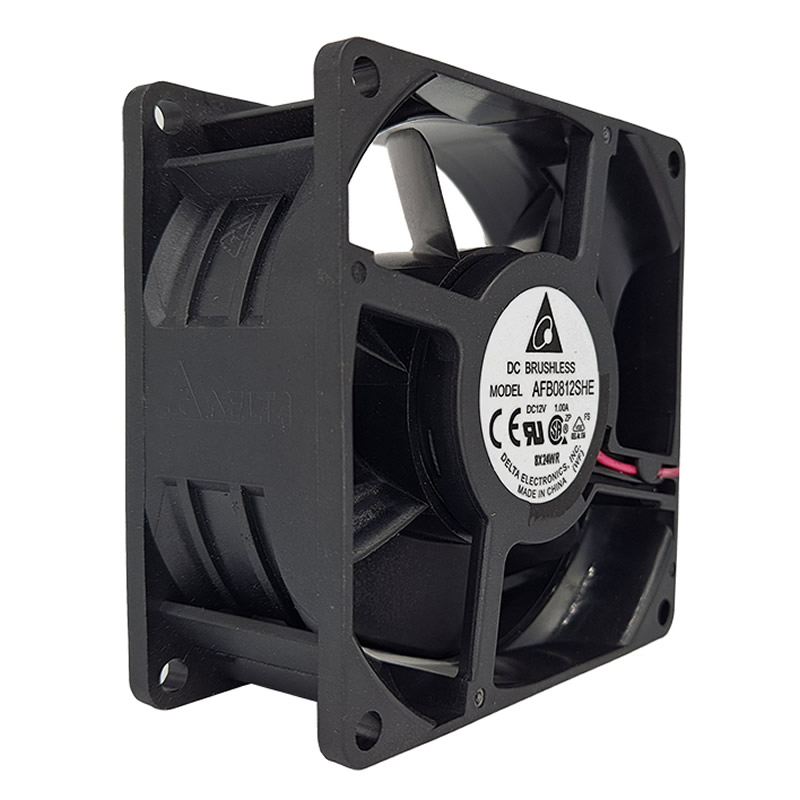

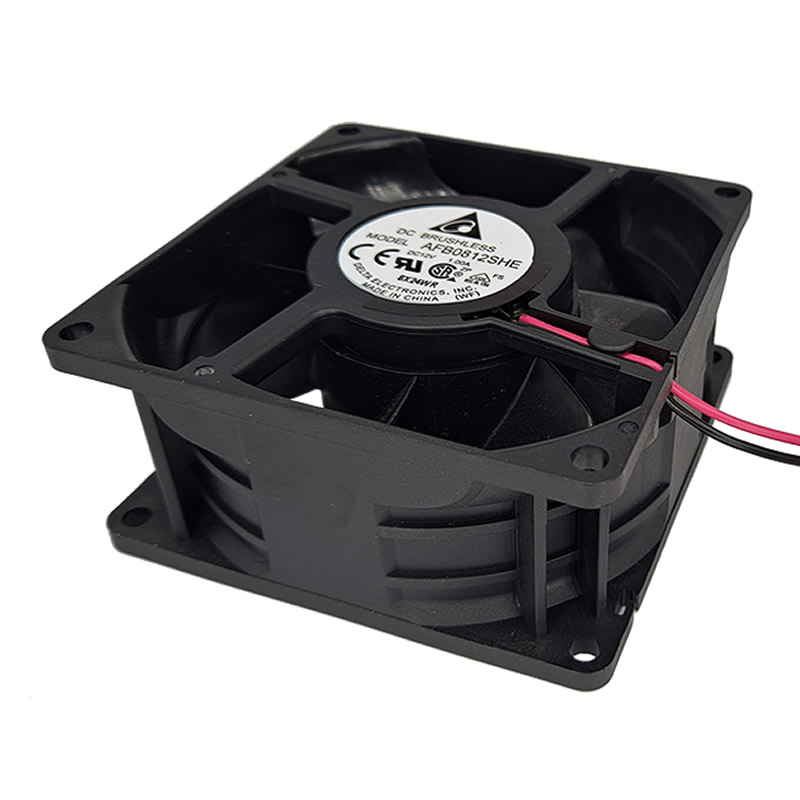

AFB0812SHE Delta 80x80x38mm Ball 12VDC 72.76CFM(2.060m3/min) 0.547inchH2O(13.89mmH2O) 46.0dB(A) 8.16W 5000RPM 2wireleads fan
Specifications
| Model | AFB0812SHE |
|---|---|
| Manufacturer | Delta Electronics |
| Fan Speed | 5000 RPM |
| Dimensions | 80x80x38 mm |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 2.060 m3/min |
| Termination | 2 wire leads |
| Fan Type | DC |
| Noise Level | 46.0 dB(A) |
| Power Rating | 8.16 W |
| Static Pressure | 0.547 inchH2O (13.89 mmH2O) |
| Air Flow | 72.76 CFM |
| Voltage Rating | 12 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.344 lb (156.04 g) |
| Category | Axial |
| Current Rating | 0.68 A |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0812SHE-Delta.pdf |
