Description

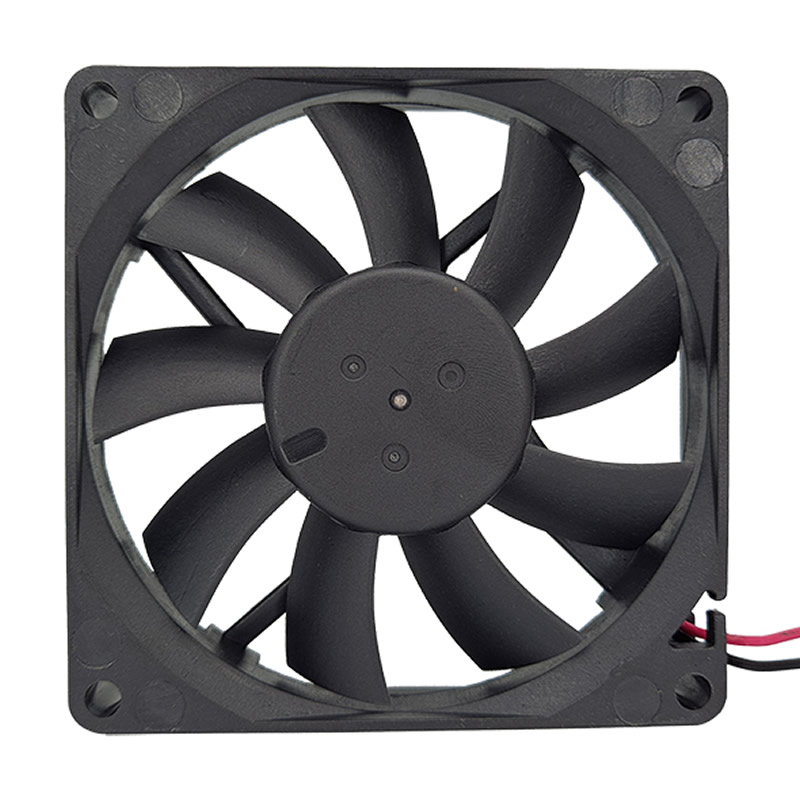

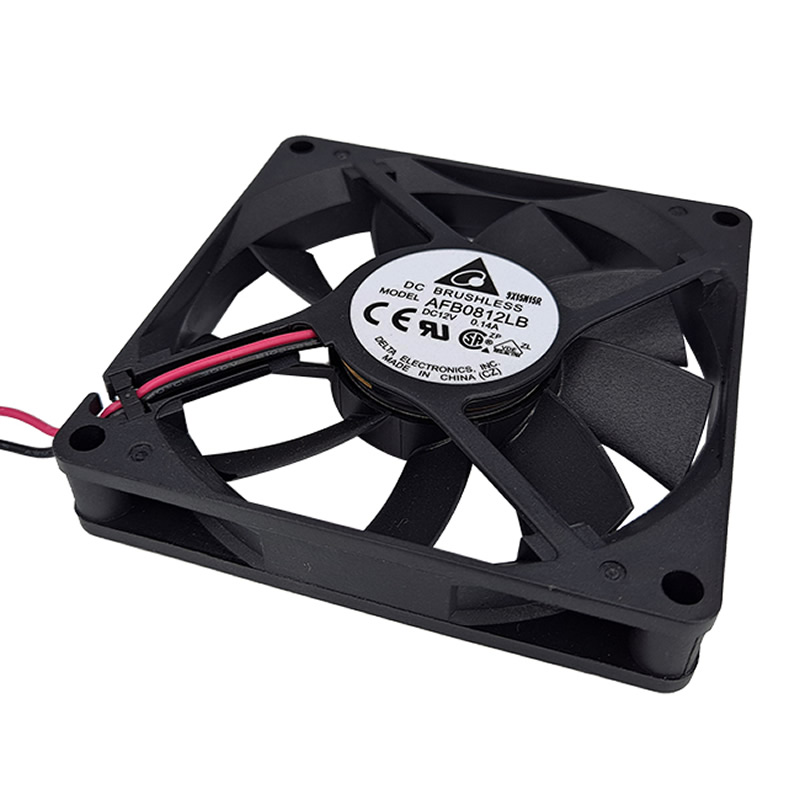

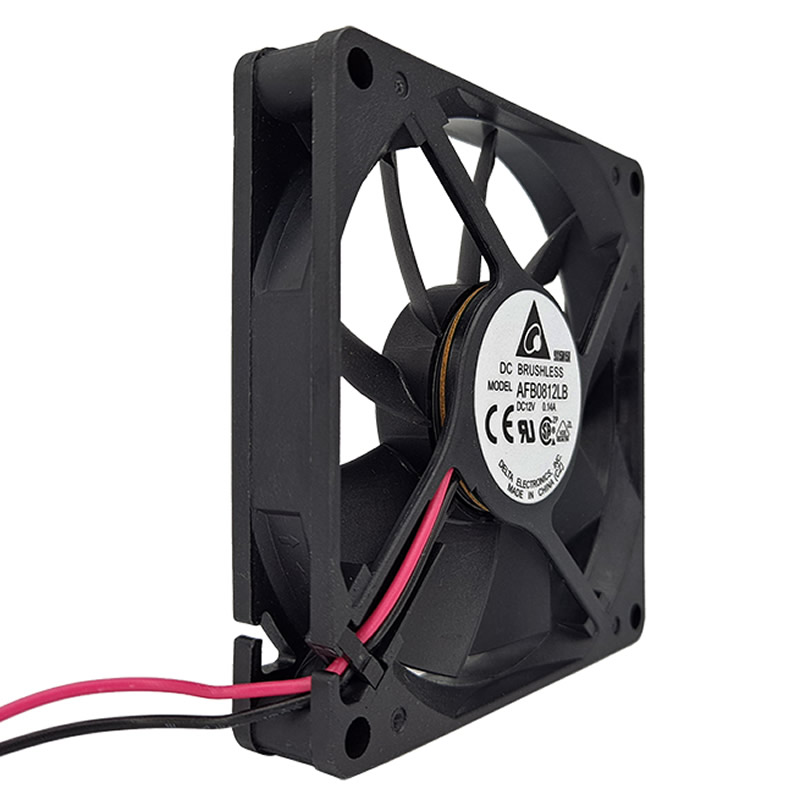

AFB0812LB Delta 12VDC 80x80x15mm 24.7CFM 0.087inH2O(21.7Pa) Ball 27.5dB(A) 1.08W 2400RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0812LB |
|---|---|
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 80x80x15 mm |
| Air Flow | 24.7 CFM |
| Air Flow (m3) | 0.692 m³/min |
| Static Pressure | 0.087 in H2O (21.7 Pa) |
| Manufacturer | Delta Electronics |
| Features | Locked Rotor Protection |
| Fan Type | DC |
| Noise Level | 27.5 dB(A) |
| Power Rating | 1.08 W |
| Fan Speed | 2400 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.128 lb (58.06 g) |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0812LB-Delta.pdf |
