Description

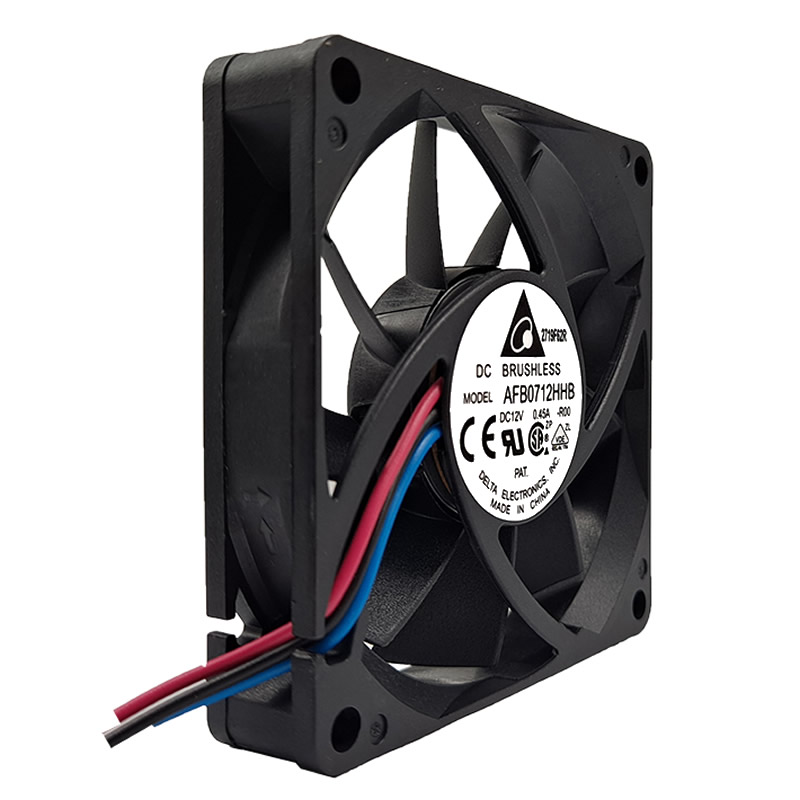

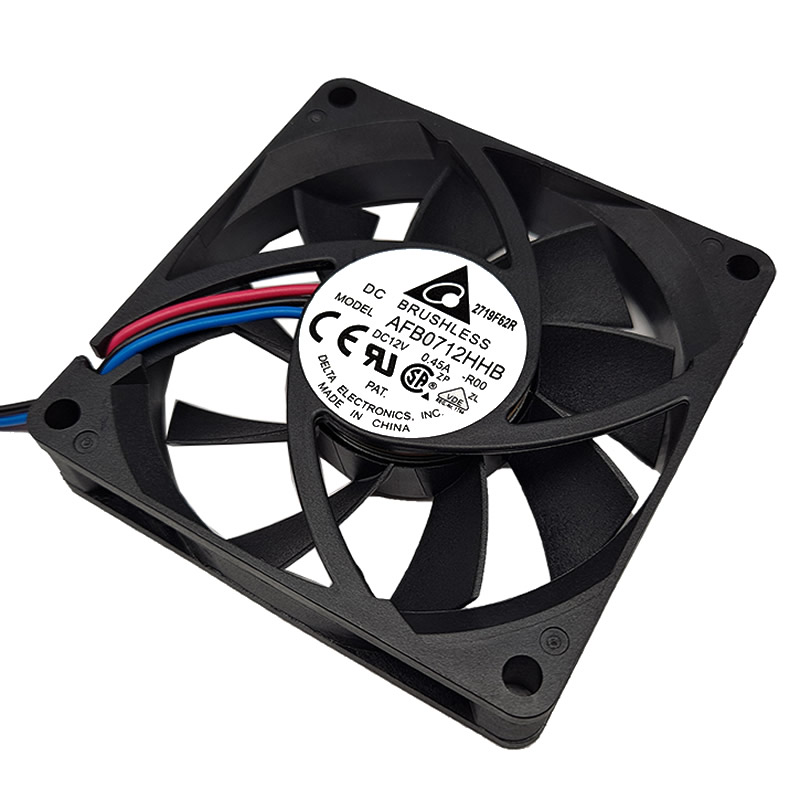

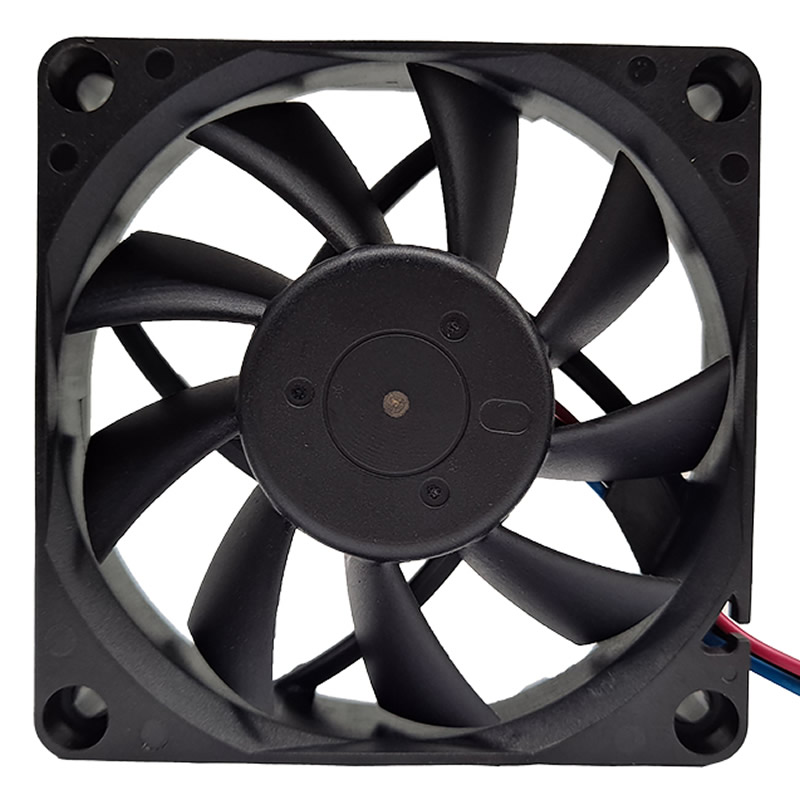

AFB0712HHB-R00 Delta 12VDC 70x70x15mm 37.5CFM 0.210inH2O(52.3Pa) Ball 38.5dB(A) 3.12W 4300RPM 3 Wire Leads Locked Rotor Sensor DC Fan
Specifications
| Part Number | AFB0712HHB-R00 |
|---|---|
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 12 VDC |
| Dimensions | 70x70x15 mm |
| Air Flow | 37.5 CFM |
| Air Flow (m3) | 1.05 m³/min |
| Static Pressure | 0.210 in H2O (52.3 Pa) |
| Manufacturer | Delta Electronics |
| Features | Locked Rotor Sensor |
| Fan Type | DC |
| Noise Level | 38.5 dB(A) |
| Power Rating | 3.12 W |
| Fan Speed | 4300 RPM |
| Termination | 3 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.104 lb (47.17 g) |
| Current Rating | 0.45 A |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0712HHB-R00-Delta.pdf |
