Description

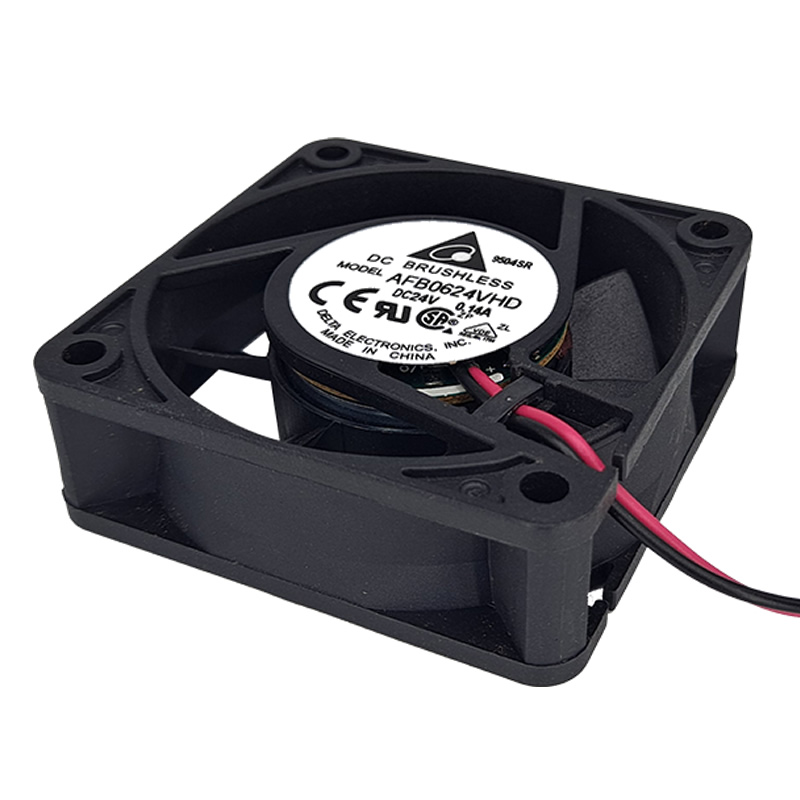

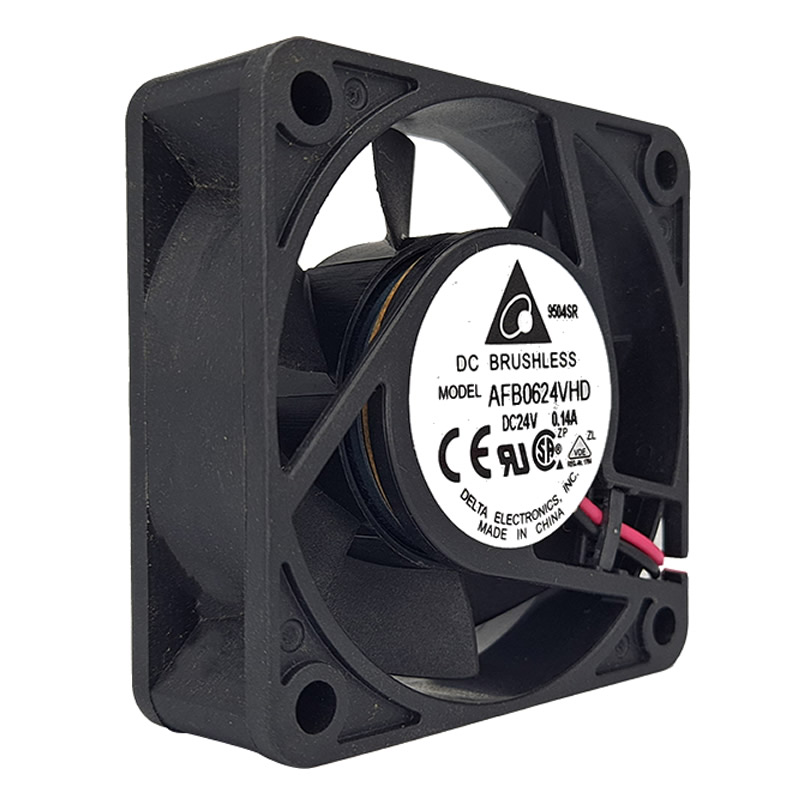

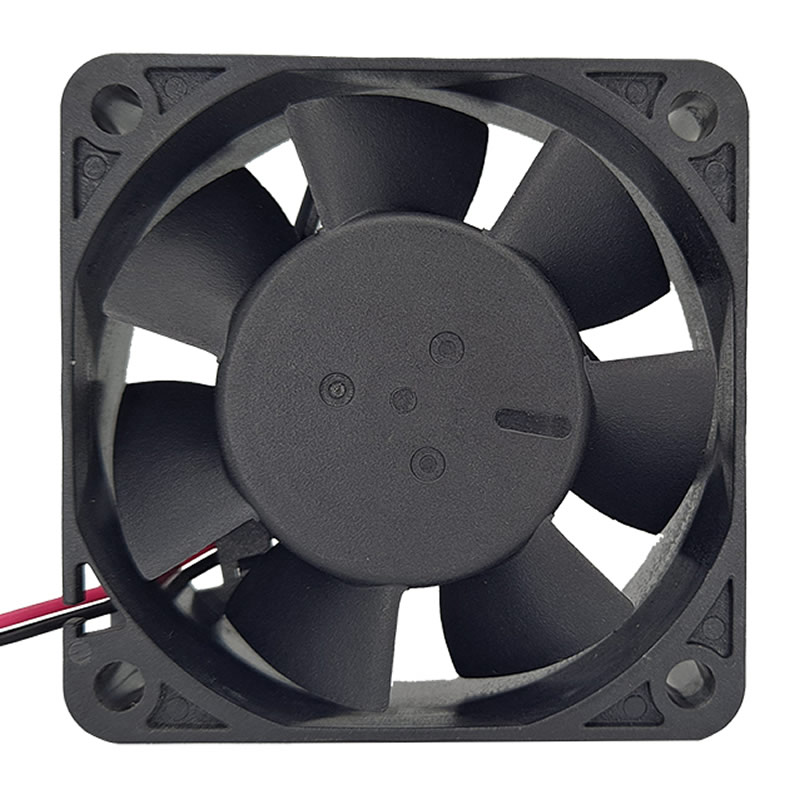

AFB0624VHD Delta 24VDC 60x60x20mm 19.8CFM 0.275inH2O(68.6Pa) Ball 33dB(A) 2.16W 4800RPM 2 Wire Leads Locked Rotor Protection DC Fan
Specifications
| Part Number | AFB0624VHD |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 60x60x20 mm |
| Bearing Type | Ball Bearing |
| Series | AFB |
| Voltage Rating | 24 VDC |
| Air Flow | 19.8 CFM |
| Air Flow (m3) | 0.554 m³/min |
| Static Pressure | 0.275 in H2O (68.6 Pa) |
| Features | Locked Rotor Protection |
| Fan Type | DC |
| Noise Level | 33 dB(A) |
| Power Rating | 2.16 W |
| Fan Speed | 4800 RPM |
| Termination | 2 Wire Leads |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.137 lb (62.14 g) |
| Shipping Weight | 0.125 kg |
| Product PDF | AFB0624VHD-Delta.pdf |
