Description

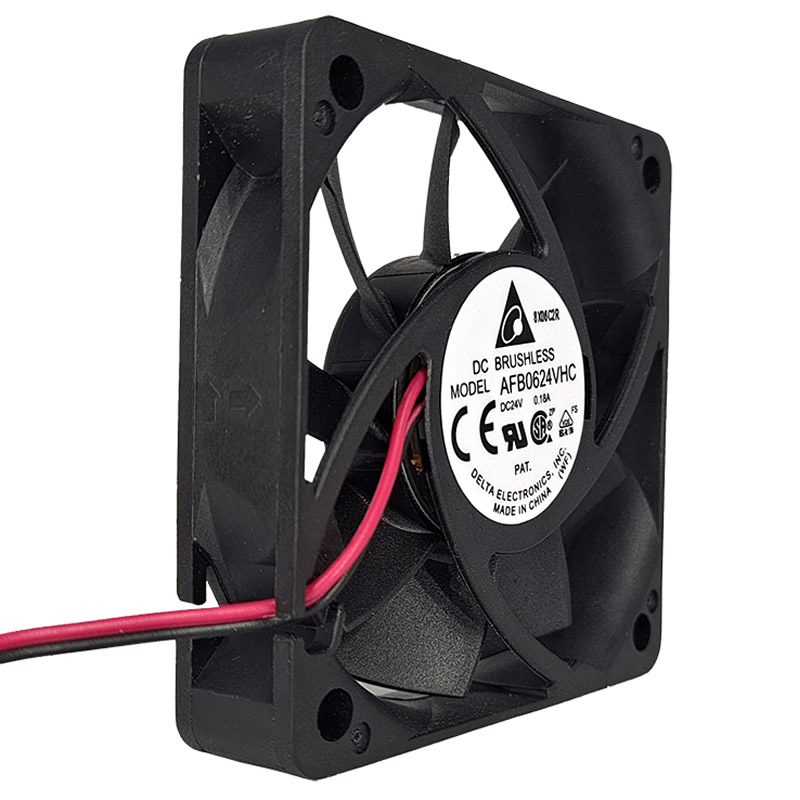

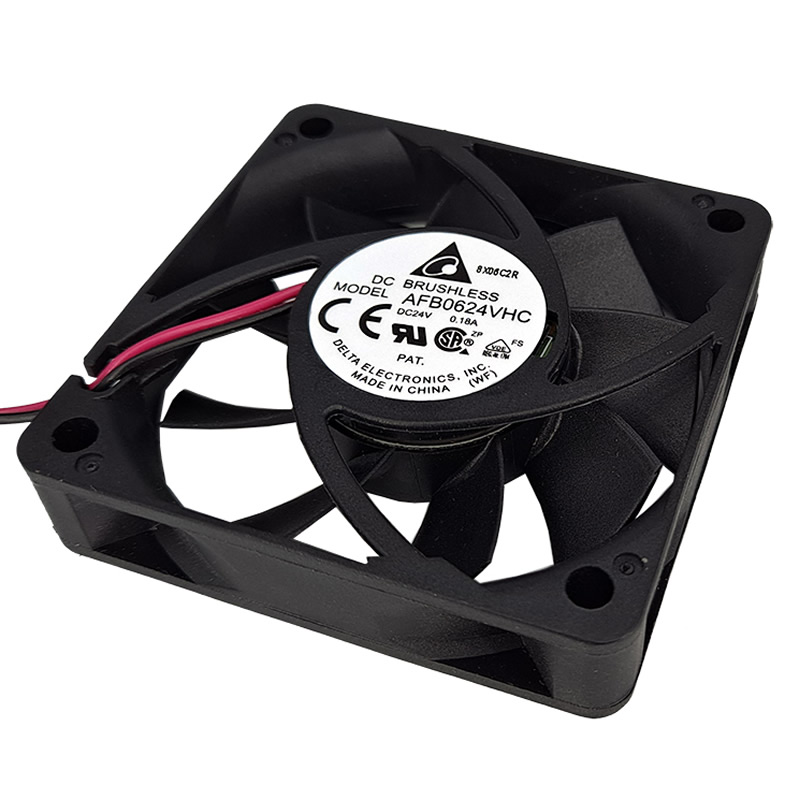

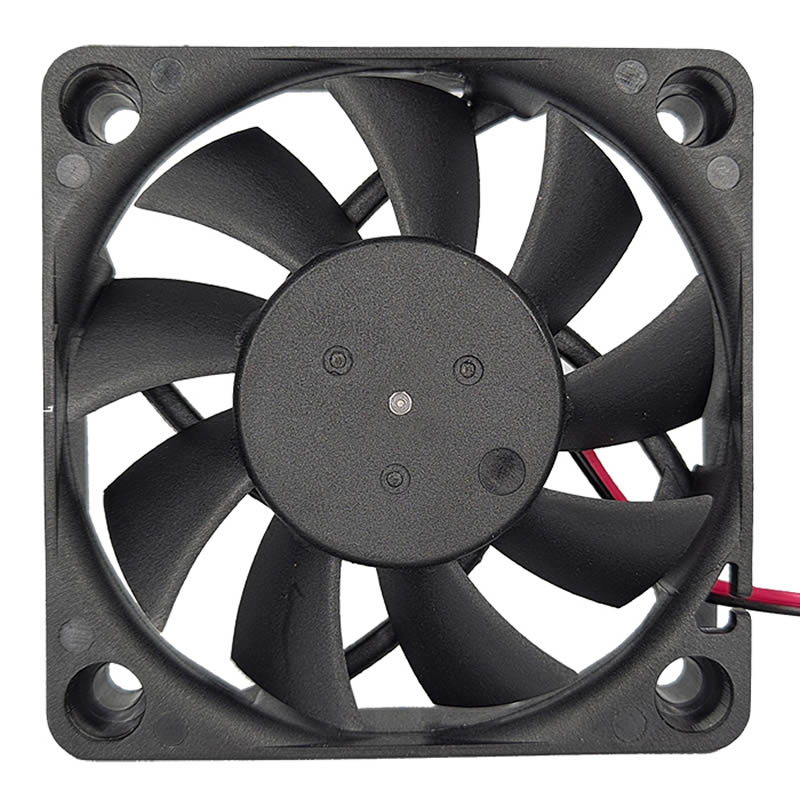

AFB0624VHC Delta 60x60x13mm Ball 24VDC 27.72CFM(0.785m3/min) 0.252inchH2O(6.41mmH2O) 38.0dB(A) 2.88W 5400RPM 2wireleads fan
Specifications
| Part Number | AFB0624VHC |
|---|---|
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.785 m3/min |
| Dimensions | 60x60x13 mm |
| Termination | 2 wire leads |
| Manufacturer | Delta Electronics |
| Fan Speed | 5400 RPM |
| Power Rating | 2.88 W |
| Noise Level | 38.0 dB(A) |
| Static Pressure | 0.252 inchH2O (6.41 mmH2O) |
| Air Flow | 27.72 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Weight | 0.074 lb (33.56 g) |
| Category | Axial |
| Current Rating | 0.12 A |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0624VHC-Delta.pdf |
