Description

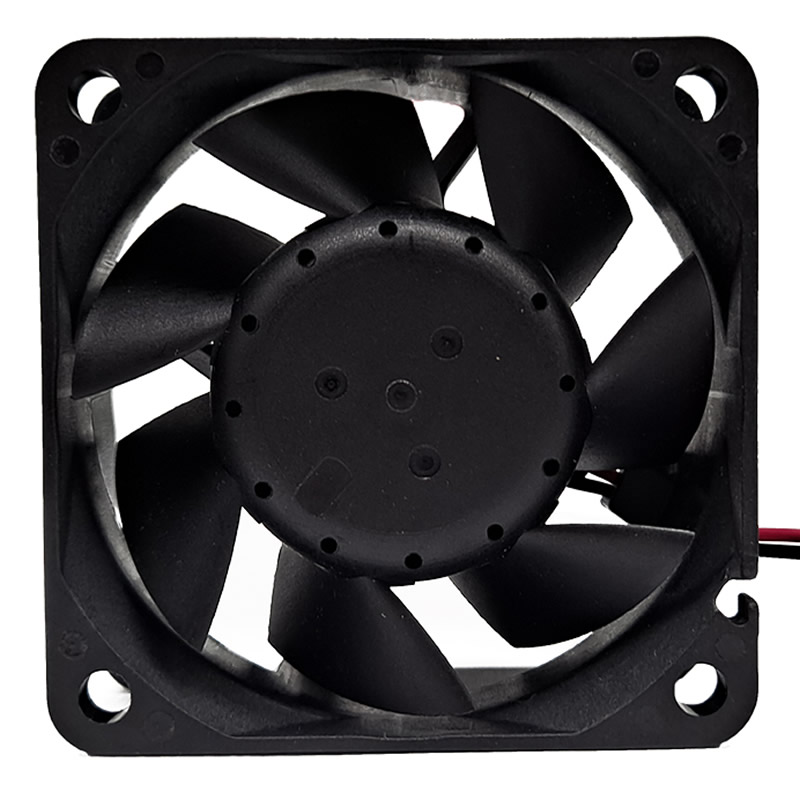

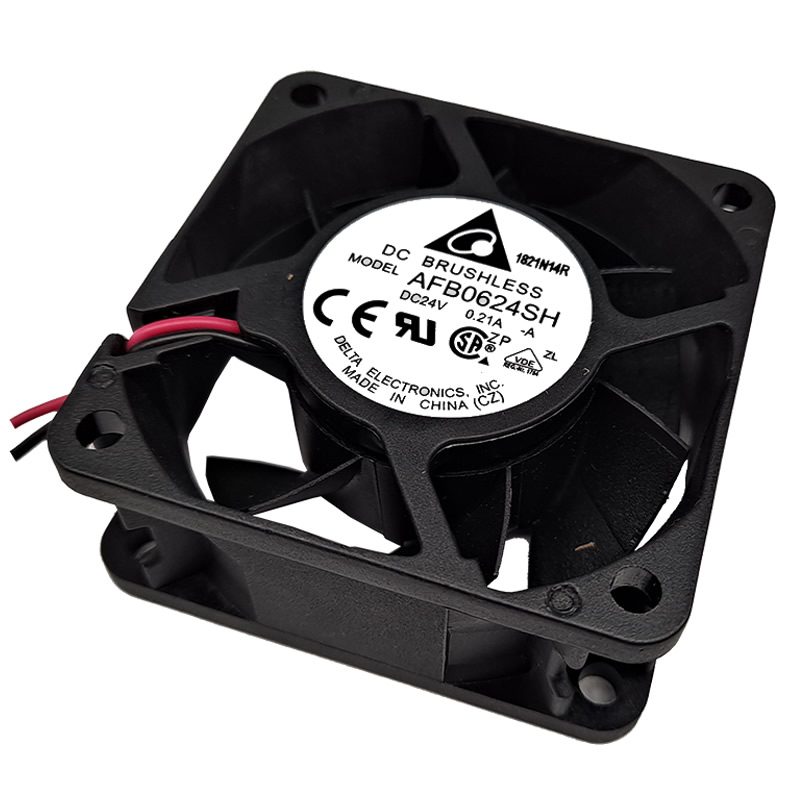

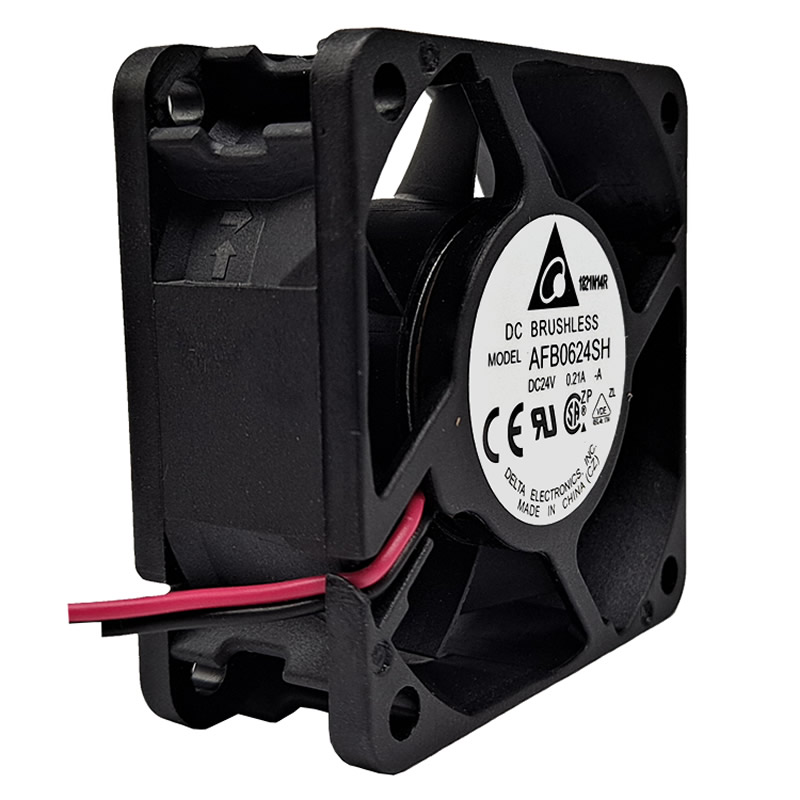

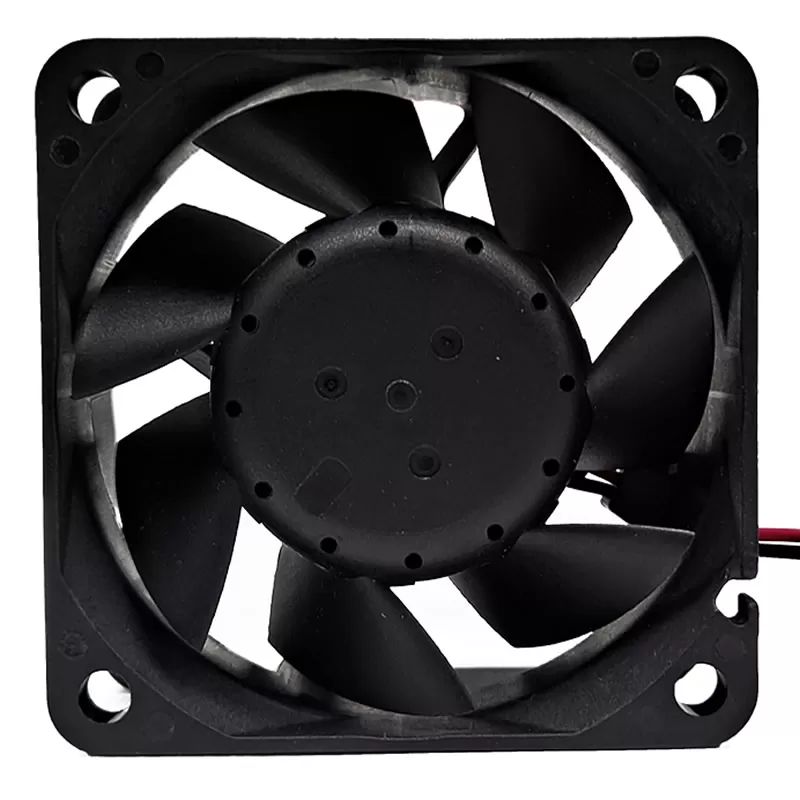

AFB0624SH-A Delta 60x60x25.40mm Ball 24VDC 0.21A 34.15CFM(0.967m3/min) 0.422inchH2O 44.5dB(A) 4.08W 6000RPM 2wireleads fan
Specifications
| Model | AFB0624SH-A |
|---|---|
| Manufacturer | Delta Electronics |
| Dimensions | 60x60x25.40 mm |
| Fan Type | DC |
| Approval Agency | CE, CSA, UL, VDE |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Features | Locked Rotor Protection |
| Series | AFB |
| Air Flow (m3) | 0.967 m3/min |
| Fan Speed | 6000 RPM |
| Power Rating | 4.08 W |
| Noise Level | 44.5 dB(A) |
| Static Pressure | 0.422 inchH2O (10.73 mmH2O) |
| Air Flow | 34.15 CFM |
| Voltage Rating | 24 VDC |
| Bearing Type | Ball Bearing |
| Termination | 2 wire leads |
| Weight | 0.176 lb (80.00 g) |
| Category | Axial |
| Current Rating | 0.21 A |
| Features | Auto Restart |
| Operating Voltage | 14 ~ 27.6 VDC |
| Material Frame | Plastic |
| Lifetime @ Temp | 70000 Hrs @ 40⁰C |
| Subcategory | DC axial fan |
| Shipping Weight | 0.25 kg |
| Product PDF | AFB0624SH-A-Delta.pdf |
