AFB0624HD Delta

Description

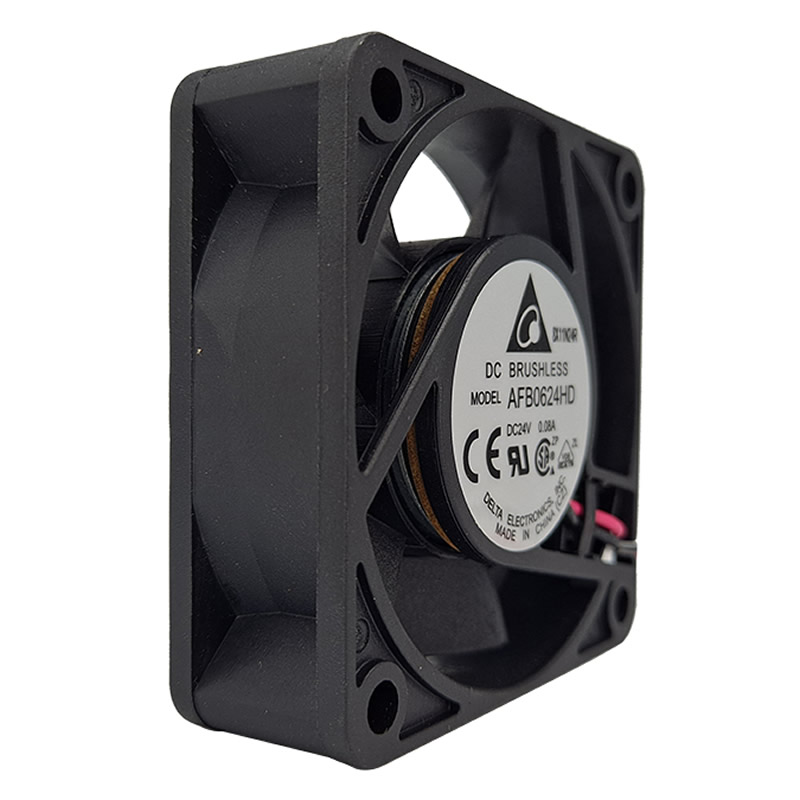

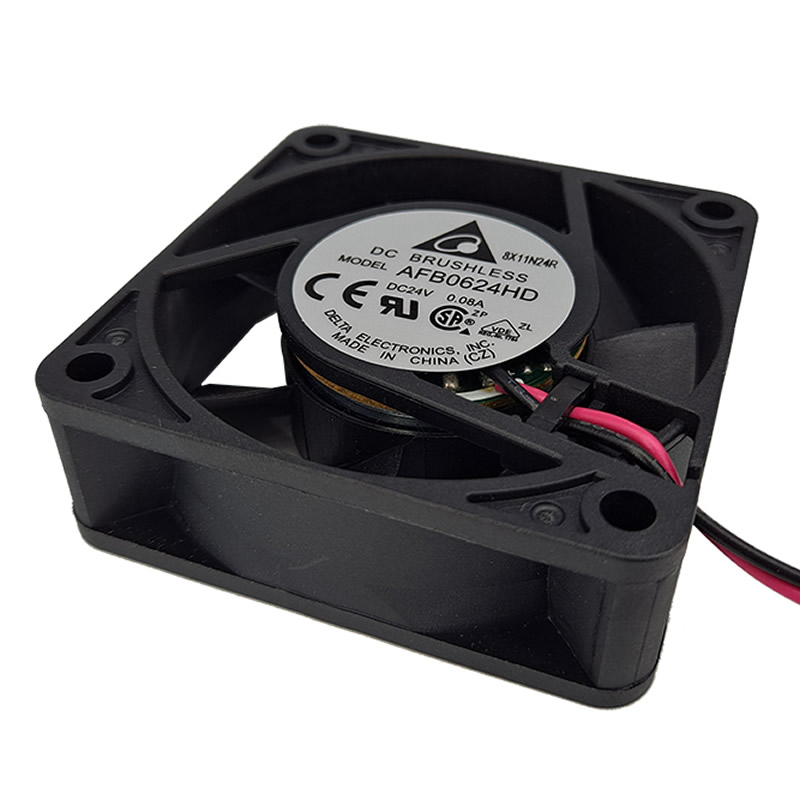

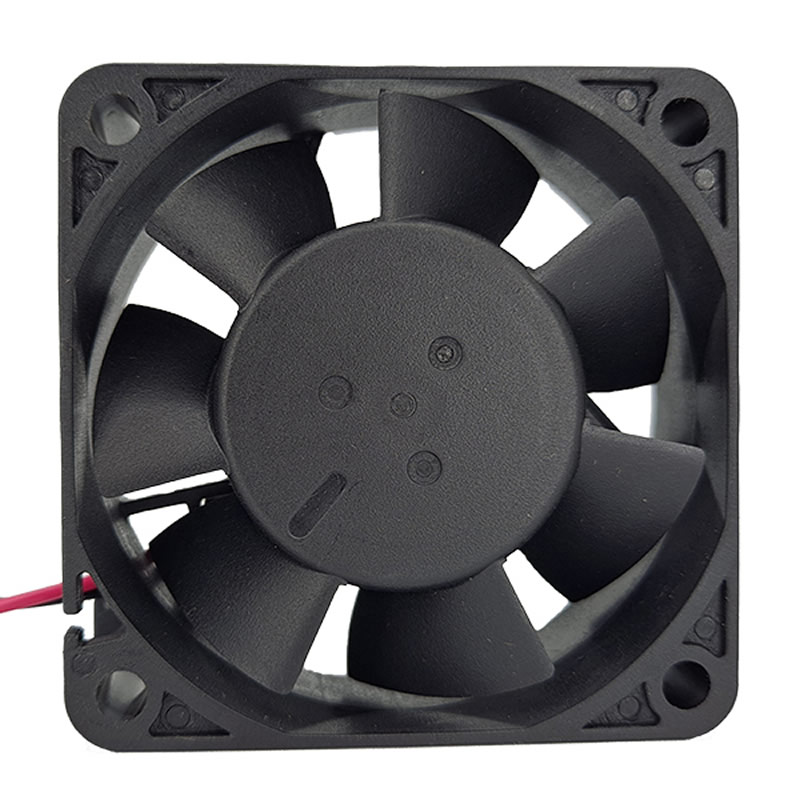

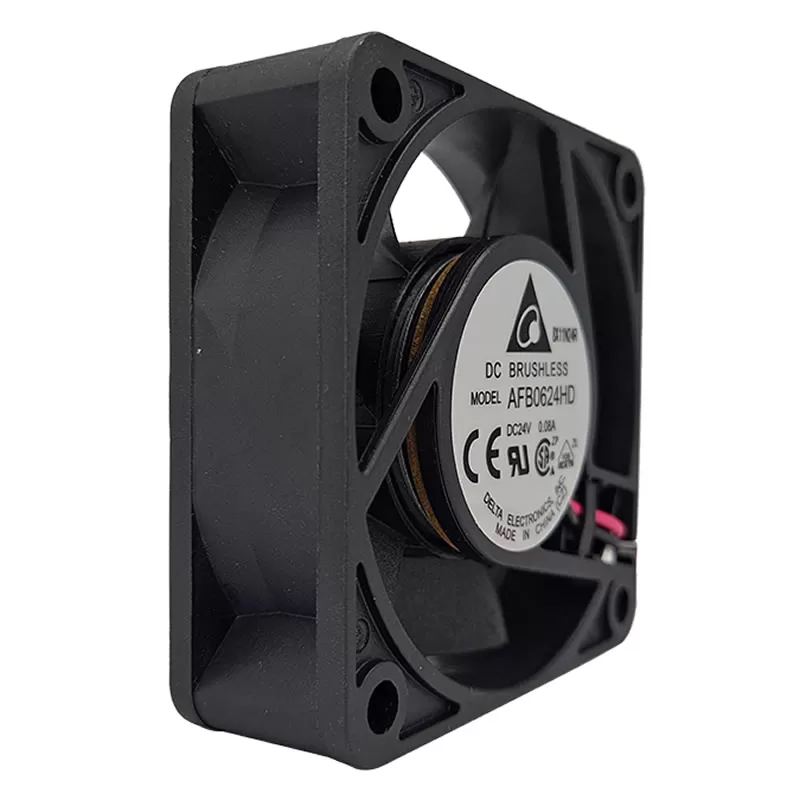

AFB0624HD Delta 24VDC 60x60x20mm 16.6CFM 0.189inH2O(47.1Pa) Ball 28dB(A) 1.2W 4000RPM 2 Wire Leads Locked Rotor Protection DC Fan

The AFB0624HD from Delta Electronics is a two-phase four-pole DC brushless axial flow fan rated at 24VDC with an operation voltage range of 14.0-27.6VDC, featuring 0.05A input current (0.08A max.) and 1.20W power (1.92W max.). It runs at 4000 RPM (reference), delivering max. air flow of 0.470m³/MIN (0.430 min.) at zero static pressure (16.60CFM/15.19 min.) and max. air pressure of 4.80mmH₂O (4.06 min.) at zero air flow, with avg. noise of 28.0dB-A (31.0 max.). Constructed with UL94V-0 plastic frame/impeller and dual ball bearings, weighing 62g, it rotates clockwise with UL1007-F-AWG#24 leads (red+/black−) and an open-type cover. Rated for 70,000 hours at 40℃/15-65%RH, it offers locked rotor protection (96h fire resistance at rated voltage) and polarity reverse protection, operating at 10-70℃ (-40-75℃ storage) with passed thermal cycling, humidity exposure, and vibration tests. Suitable for heat dissipation in computer servers, communication equipment, industrial control cabinets, and wide-temperature applications like automotive electronics and medical devices, it is manufactured in China/Thailand/Taiwan, free of ozone-depleting substances (PBBs, CFCs, etc.), and requires an external ≥4.7μF capacitor for parallel operation.

Specifications
